Body Work

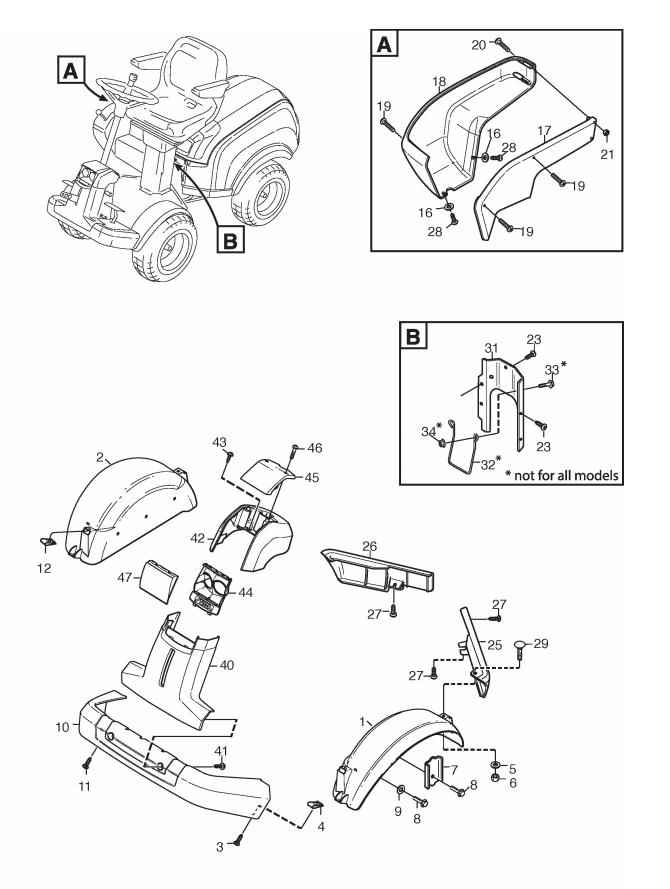

Body Work assembly details for Stiga PARK 540 DPX 2017 (2F6236281/S16) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002337491250/0RIGHT FRONT MUDGUARD [GREY]£117.47 Add to
0039893-0616-16SCREW M6 x 16£2.47 Add to
0041134-4176-01CLIP£5.19 Add to
005112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
006112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0071137-0088-01SUPPORT PLATE£2.74 Add to
0089945-0816-16SCREW M8 X 16£2.54 Add to
009112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
010337502507/0FRONT BUMPER [GREY]£45.26 Add to
0119893-0616-16SCREW M6 x 16£2.47 Add to
0121134-4176-01CLIP£5.19 Add to
0169699-0099-02WASHER 5.2 x 14 x 1.0£2.18 Add to
0171134-4360-01INNER COVER£67.05 Add to
0181134-3979-01OUTER COVER£102.48 Add to
0199946-0525-16SCREW M5 x 25£2.47 Add to
0209950-0570-12SCREW M5 x 70£2.74 Add to
021112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
0239893-0616-16SCREW M6 x 16£2.47 Add to
025337110331/0LEFT MOULDING [GREY]£57.15 Add to
026337110332/0RIGHT MOULDING [GREY]£54.79 Add to
0279893-0616-16SCREW M6 x 16£2.47 Add to
0289840-8013-16SCREW 4.8 x 13£2.06 Add to
029112815200/0SCREW TTDQ M6X16£2.06 Add to
0311134-6461-01REAR PLATE£34.35 Add to
0321134-6460-01PROTECTIVE LOOP£13.77 Add to
0339959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
034112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0401137-0050-01LOWER FRONT PANEL£22.91 Add to
041112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
0421137-0051-01UPPER FRONT PANEL£21.12 Add to
0439946-0525-16SCREW M5 x 25£2.47 Add to
044337110329/0FRONT LAMP COVER [GREY]£6.23 Add to
045337110330/0TOP PANEL [GREY]£6.27 Add to
046112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
0471137-0054-01LAMP GLASS£8.45 Add to
