Power Take-off (1)

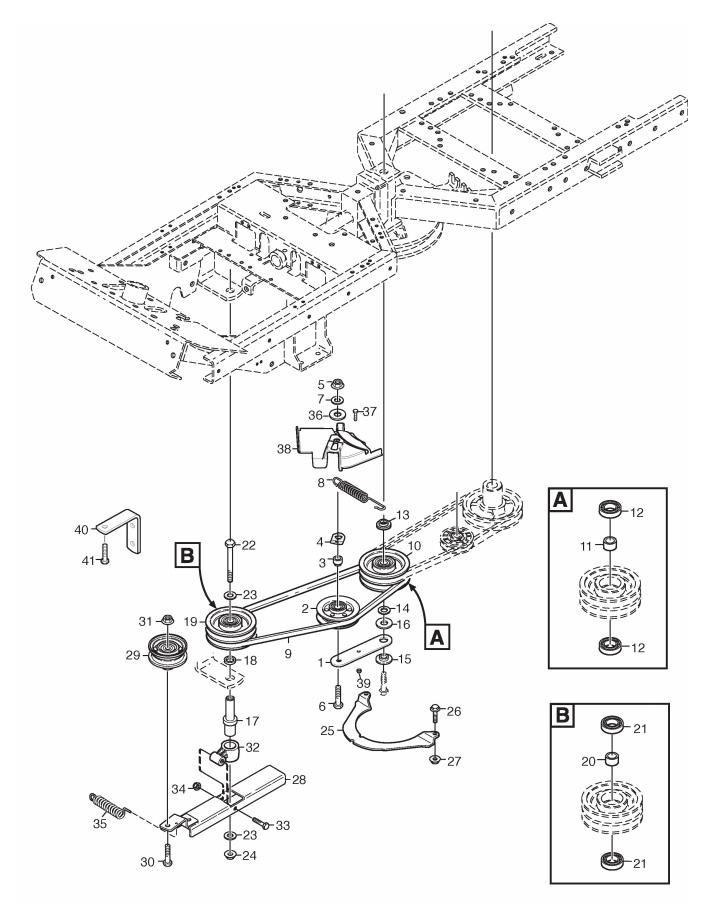

Power Take-off (1) assembly details for Stiga PARK 540 DPX 2017 (2F6236281/S16) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-1730-02TENSIONING WHEEL ARM£42.53 Add to
002387605010/0TENSION PULLEY£56.36 Add to
0031134-1888-06SPACER£9.41 Add to
004337546545/0SPRING HOOKING PLATE£5.60 Add to
0059739-1031-22NUT M10£2.32 Add to
006112692395/2SCREW M10 x 60£3.49 Add to
007112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
0081134-5713-04SPRING£7.73 Add to
009135065702/0PTO DRIVE BELT [4WD]£57.78 Add to
010387605002/0DOUBLE CENTRE PULLEY ASSEMBLY£84.77 Add to
0111134-0051-09SPACER£14.05 Add to
012119216056/0BEARING£21.66 Add to
0131134-5548-01SPACER£14.32 Add to
014112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
0151134-0222-00TENSION WASHER£14.45 Add to
0169699-0109-02WASHER 10.5 x 40 x 2£2.32 Add to
0171134-5663-01SHAFT£43.93 Add to
0181134-0052-00SPACER£8.87 Add to
019387605002/0DOUBLE CENTRE PULLEY ASSEMBLY£84.77 Add to
0201134-0051-09SPACER£14.05 Add to
021119216056/0BEARING£21.66 Add to
0229997-1011-06SCREW M6S M10 x 110£11.32 Add to
0239699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
0249739-1031-22NUT M10£2.32 Add to
0251134-3654-01GUARD£35.71 Add to
0269959-0612-16SCREW M6SF M6 x 12 TL£1.79 Add to
027112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0281134-5660-01TENSION ARM£42.83 Add to
029387605014/0TENSION PULLEY£49.92 Add to
030112794900/0HEX-HEAD SCREW M10 x 50£2.06 Add to
0319739-1031-22NUT M10£2.32 Add to
0321134-6314-01TENSION ARM ATTACHMENT£9.00 Add to
0331134-6314-01TENSION ARM ATTACHMENT£9.00 Add to
034112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0351134-5824-01SPRING£5.87 Add to
036137038000/0BUSH£5.46 Add to
037112792410/0HEX-HEAD SCREW M6 x 40£2.06 Add to
038337600001/2PULLEY PROTECTION GUARD£9.31 Add to
039112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0401134-5112-01SPRING ATTACHMENT BRACKET£27.27 Add to
0411134-5112-01SPRING ATTACHMENT BRACKET£27.27 Add to
