Steering

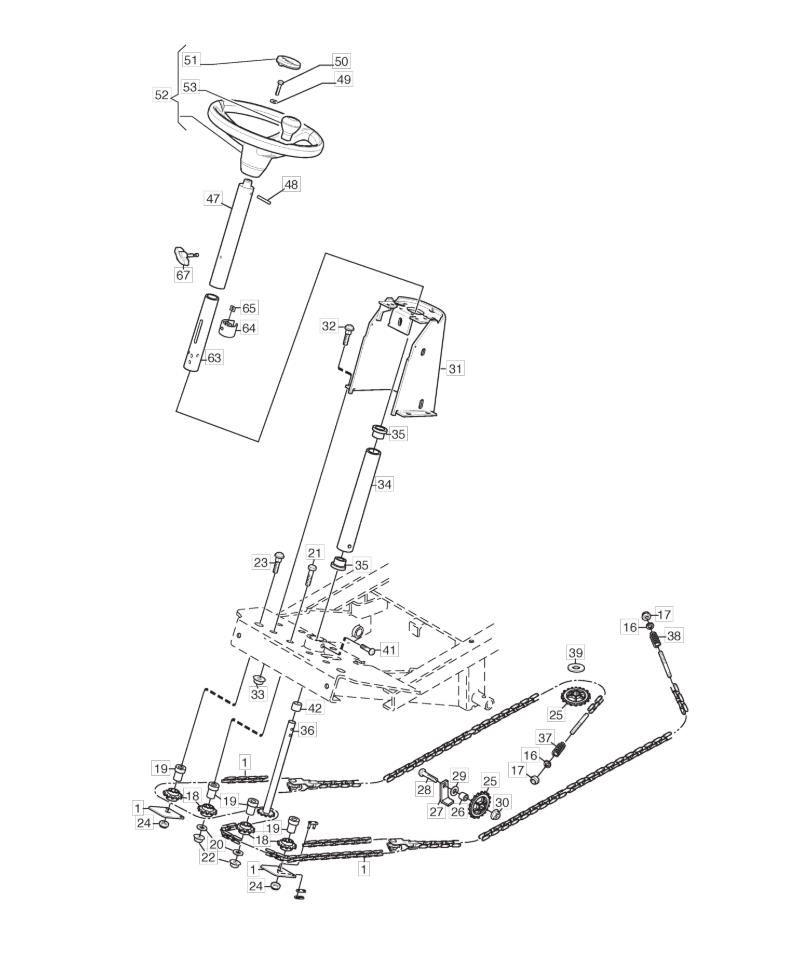

Steering assembly details for Stiga PARK 540 X (2F6230625/S16) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387106404/0STEERING CHAIN ASSEMBLY [PCH w/o SERVO]£236.58 Add to
0169699-0090-02WASHER 8.4 x 18 x 1.5£2.32 Add to
017112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
0181134-2816-01SPROCKET£10.77 Add to
0191134-5653-01SPACER£9.14 Add to
020112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
021112692395/2SCREW M10 x 60£3.49 Add to
0229739-1031-22NUT M10£2.32 Add to
0239897-1060-12SCREW M10 x 60£3.28 Add to
0249731-1031-22LOCK NUT M6MF M10£2.47 Add to
0251134-3547-01SPROCKET£12.96 Add to
0261134-0041-01BUSH£9.41 Add to
0271134-3022-01BRACKET£62.97 Add to
0271134-3022-01BRACKET£62.97 Add to
0289997-1040-16SCREW M6S 10 x 40£7.23 Add to
029112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
0309739-1031-22NUT M10£2.32 Add to
031387785243/0STEERING COLUMN COVER£102.06 Add to
0329897-0820-16SCREW M8 x 20£2.32 Add to
033112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
034387520113/0LOWER STEERING COLUMN£40.38 Add to
0351134-1901-01PLASTIC BUSH£12.27 Add to
0361137-0120-02STEERING ROD ASSEMBLY£43.89 Add to
0371134-3817-01COMPRESSION SPRING£12.96 Add to
0381134-3817-02COMPRESSION SPRING£12.68 Add to
039337670201/0WASHER£3.64 Add to
0419893-0616-16SCREW M6 x 16£2.47 Add to
0421134-2837-03SPACER£11.46 Add to
047387520101/1UPPER STEERING COLUMN£95.67 Add to
048112620299/0SPIROL FLEXIBLE PIN 6 x 45£1.91 Add to
049112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
050112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
051337580550/0STEERING WHEEL PLATE£8.75 Add to
052337961200/0STEERING WHEEL [BLACK]£287.40 Add to
053187593701/0STEERING WHEEL KNOB£48.11 Add to
063387520119/0LOWER STEERING COLUMN£74.87 Add to
0641134-5177-01SLIDE COLLAR£13.64 Add to
0659710-0631-12SQUARE NUT£3.55 Add to
0661134-4481-02WING NUT£6.14 Add to
067337394201/0WING NUT£13.64 Add to
