Electric equipment

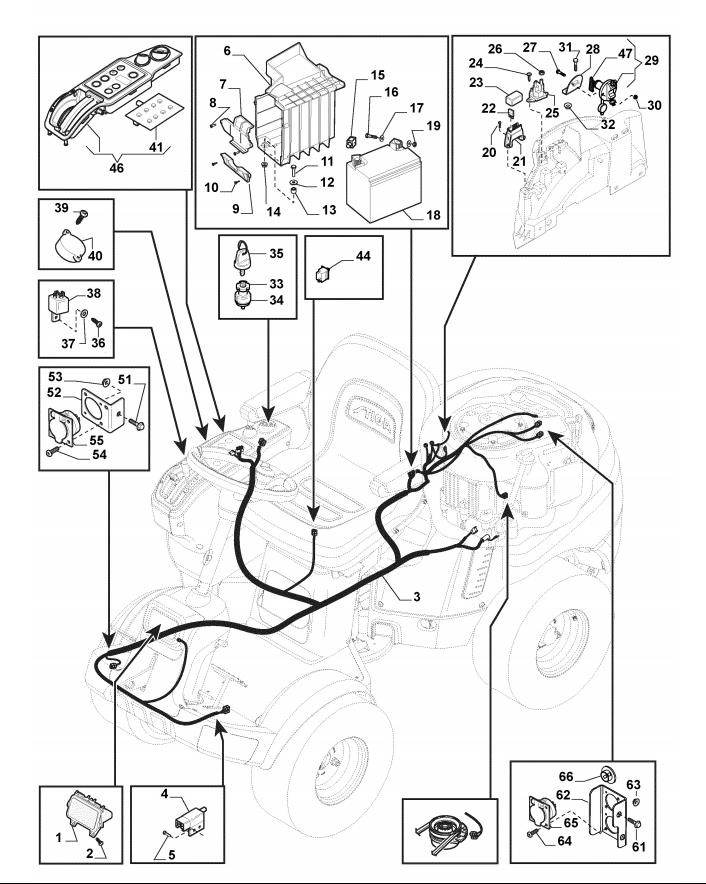

Electric equipment assembly details for Stiga PARK PRO 340 IX 2017 (13-6451-11) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	387184250/0	FRONT LED LIGHT	£191.06	Add to
002	112728714/0	SELF-TAP SCREW K50 x 20	£2.40	Add to
003	187040302/0	WIRING HARNESS [B&S VANGUARD 18]	£289.57	Add to
004	1134-3399-01	SWITCH	£45.26	Add to
005	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
006	337109500/0	BATTERY HOUSING [BLACK]	£60.24	Add to
007	337245200/0	BATTERY STOP	£6.55	Add to
008	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
009	337580470/0	BATTERY SLIDE PLATE	£8.73	Add to
010	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
011	112791500/0	SCREW TE M6x25 UNI 5739 ACC.8.8	£2.06	Add to
012	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
013	122170610/0	SPACER (OBSOLETE) (OBSOLETE)	N/A
014	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
015	118564861/1	RED RUBBER TERMINAL COVER	£7.90	Add to
016	112791400/0	SCREW TE M6x20 UNI 5739 ACC.4.8	£1.79	Add to
017	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
019	112292100/0	HEXAGON NUT M6	£1.47	Add to
020	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
021	1134-3491-01	FUSE HOLDER	£13.90	Add to
022	1134-3496-06	FUSE 20A	£2.06	Add to
022	133340036/0	FUSE 25A	£2.06	Add to
023	1134-3631-01	COVER-FUSE HOLDER	£12.96	Add to
024	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
025	118736113/0	SOLENOID	£39.22	Add to
026	9743-5121-32	LOCK NUT 5/16"	£1.79	Add to
027	112791200/1	SCREW TE M6 x 16	£1.79	Add to
028	337785025/0	BATTERY SWITCH BRACKET	£15.54	Add to
029	9400-0316-01	MAIN SWITCH	£76.59	Add to
030	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
031	112791200/1	SCREW TE M6 x 16	£1.79	Add to
032	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
033	1134-4749-01	NUT	£5.05	Add to
034	118210026/0	IGNITION SWITCH	£76.59	Add to
035	1134-4734-01	IGNITION KEY	£17.72	Add to
036	112728124/0	SELF-TAP SCREW TCB TORX 4.2 X 16	£1.74	Add to
037	112523020/0	WASHER M5 5.5 x 15 x 1.6	£2.06	Add to
038	133567002/0	OPC DELAYED RELAY	£57.48	Add to
039	112728124/0	SELF-TAP SCREW TCB TORX 4.2 X 16	£1.74	Add to
040	337031585/0	BUZZER SOUND AMPLIFIER	£50.70	Add to
041	118803936/0	PCB MOTHER BOARD	£724.50	Add to
044	119410618/0	MICRO SWITCH	£5.19	Add to
046	387150001/0	DASHBOARD & PC BOARD ASSEMBLY	£929.10	Add to
047	118830001/0	MAIN SWITCH KEY	£8.60	Add to
048	118564861/1	RED RUBBER TERMINAL COVER	£7.90	Add to
051	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
052	1137-0075-01	ATTACHMENT BRACKET	£9.94	Add to
053	1137-0155-01	SPACER	£4.52	Add to
054	112735105/0	SELF-TAP SCREW TE 3.5 x 16	£2.06	Add to
055	1134-7535-01	FEMALE TERMINAL	£7.73	Add to
061	1134-4242-01	SPACER WASHER	£4.78	Add to
062	387785217/0	SUPPORT PLATE	£31.63	Add to
063	1137-0155-01	SPACER	£4.52	Add to
064	112735105/0	SELF-TAP SCREW TE 3.5 x 16	£2.06	Add to
065	1134-7535-01	FEMALE TERMINAL	£7.73	Add to
066	118802897/0	PLUG CAP	£2.06	Add to
