Seat & Steering Wheel

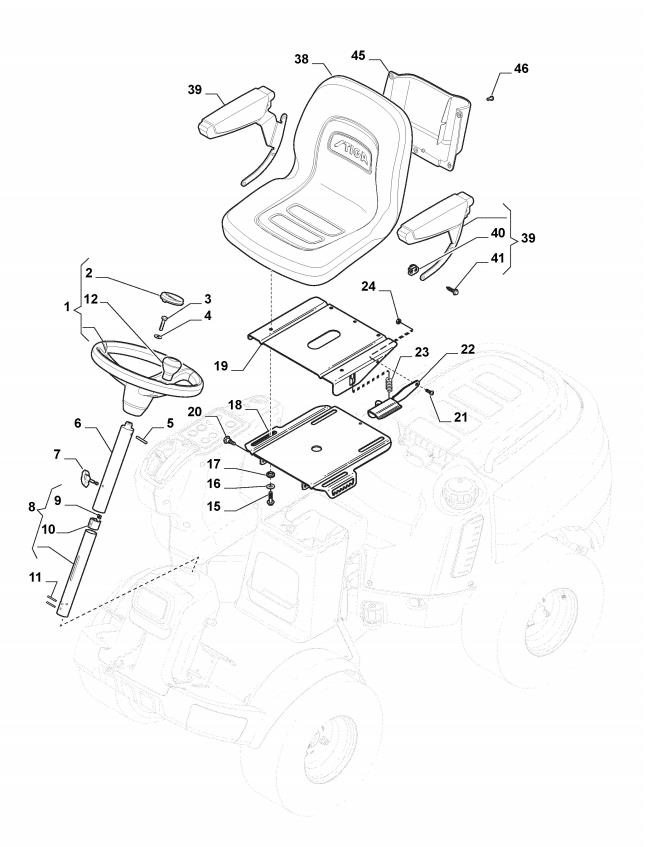

Seat & Steering Wheel assembly details for Stiga PARK PRO 340 IX 2017 (13-6451-11) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001337961200/0STEERING WHEEL [BLACK]£287.40 Add to
002337580550/0STEERING WHEEL PLATE£8.75 Add to
003112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
004112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
005112620299/0SPIROL FLEXIBLE PIN 6 x 45£1.91 Add to
006387520101/1UPPER STEERING COLUMN£95.67 Add to
007337394201/0WING NUT£13.64 Add to
008387520105/1LOWER STEERING COLUMN£113.39 Add to
0099710-0631-12SQUARE NUT£3.55 Add to
0101134-5177-01SLIDE COLLAR£13.64 Add to
0119595-0262-00LOCATING PIN£2.06 Add to
012187593701/0STEERING WHEEL KNOB£48.11 Add to
015112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
016112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
0171134-6078-01FLANGE WASHER£5.87 Add to
0181137-0055-01LOWER SLIDE PLATE£98.40 Add to
0191134-6090-01UPPER SLIDE PLATE£99.76 Add to
0201134-0240-00SCREW£9.14 Add to
0219893-0616-16SCREW M6 x 16£2.47 Add to
022387318251/0BRAKE ARM£32.99 Add to
0231134-3262-01SPRING£8.73 Add to
024112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
038137722601/0SEAT£375.02 Add to
039387185100/1ARM RESTS KIT£207.55 Add to
0401139-0011-01SPEED NUT PLATE-ARM RESTS£3.55 Add to
0411139-0010-01SCREW-ARM RESTS£3.81 Add to
045337592350/0REAR SEAT TRAY [BLACK]£28.90 Add to
046112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
200181007126/0THROTTLE CABLE£25.75 Add to
