Body Work

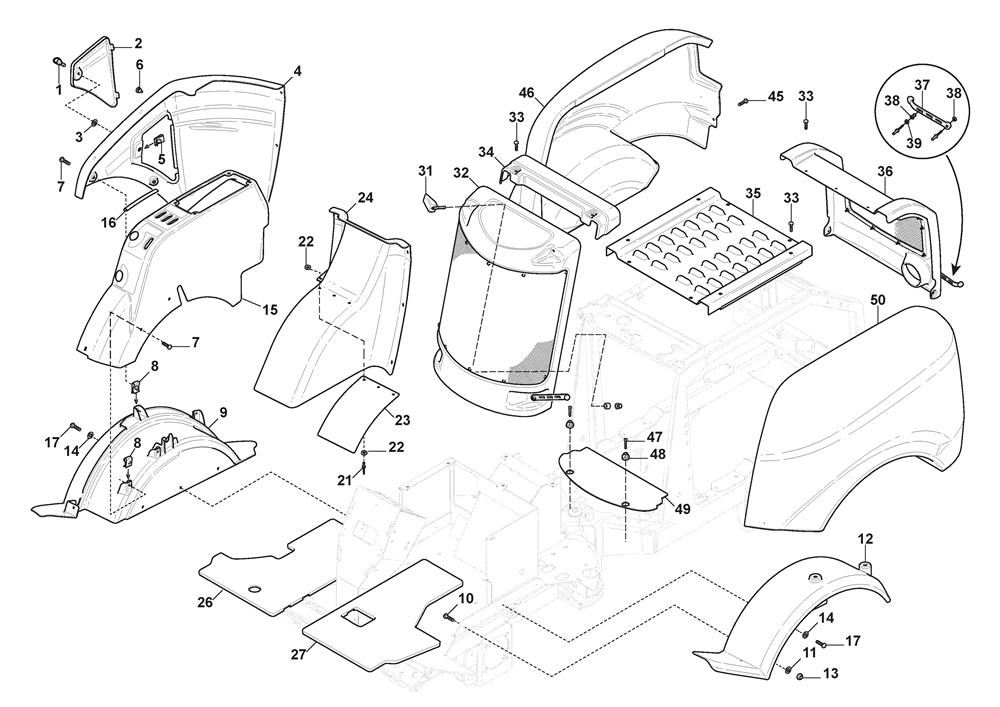

Body Work assembly details for Stiga TITAN 740 DCR 2017 (13-7462-11) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0453-01	FASTENER	£32.99	Add to
002	1135-2504-01	INSPECTION COVER	£35.71	Add to
003	1137-0454-01	WASHER	£2.06	Add to
004	1135-2502-01	SIDE PANEL	£77.29	Add to
005	1137-0452-01	CLIP ON	£8.32	Add to
006	084-305-01	RUBBER PLUG	£3.64	Add to
007	9893-0616-16	SCREW M6 x 16	£2.47	Add to
008	1134-4176-01	CLIP	£5.19	Add to
009	1135-3560-01	FRONT FENDER RH [YELLOW]	£76.59	Add to
010	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
011	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
012	1135-3559-01	FRONT FENDER LH [YELLOW]	£417.06	Add to
013	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
014	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
015	1135-3565-04	CONTROL PANEL	£83.40	Add to
016	084-237-01	SEALING STRIP 710610	£8.45	Add to
017	9959-0620-16	SCREW	£2.32	Add to
021	9632-0516-00	POP RIVET	£2.47	Add to
022	9699-0120-02	WASHER 3.2 x 14 x 1.5	£2.32	Add to
023	1135-3495-01	RUBBER CLOTH	£28.90	Add to
024	1135-2505-01	REAR COVER	£76.59	Add to
026	1137-0701-01	FLOOR MAT R/H	£134.27	Add to
027	1137-0700-01	FLOOR MAT L/H	£134.27	Add to
031	1134-4904-01	HOOD LOCK KIT	£20.32	Add to
033	9893-0616-16	SCREW M6 x 16	£2.47	Add to
034	1137-0645-01	UPPER HOOD	£84.77	Add to
035	1137-0659-01	HOOD COVER	£211.50	Add to
037	1134-2143-01	RUBBER STRAP	£9.41	Add to
038	9405-0029-00	KNOB	£4.91	Add to
039	9699-0120-02	WASHER 3.2 x 14 x 1.5	£2.32	Add to
045	9893-0616-16	SCREW M6 x 16	£2.47	Add to
046	1137-0716-01	HOOD COVER R/H	£732.36	Add to
047	9946-0525-16	SCREW M5 x 25	£2.47	Add to
048	1134-4790-02	HOOD GUIDE	£3.55	Add to
049	1137-0554-01	PLASTIC SHEET	£72.10	Add to
050	1137-0715-01	HOOD COVER L/H	£681.63	Add to
