Controls

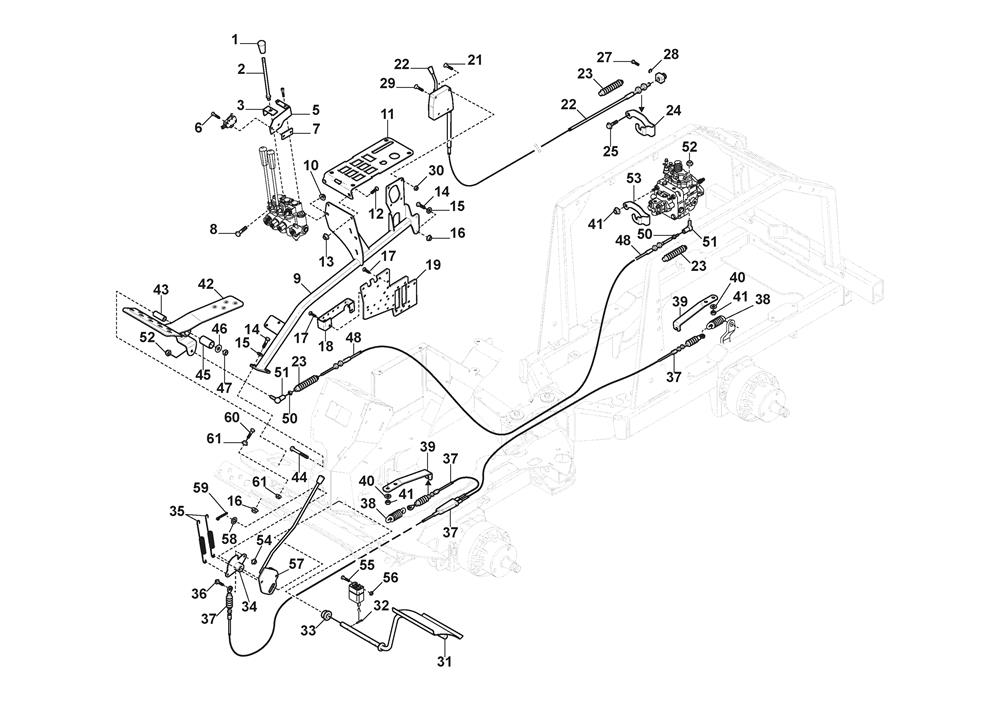

Controls assembly details for Stiga TITAN 740 DCR 2017 (13-7462-11) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1135-2498-01	KNOB	£7.78	Add to
002	1135-2497-01	LEVER	£17.59	Add to
003	1135-3127-01	SWITCH ARM	£8.14	Add to
006	9840-7716-16	SCREW	£2.32	Add to
007	531-340-01	ANCHORPLATE	£38.44	Add to
008	112689515/0	HEX-HEAD SCREW M6 x 45	£2.06	Add to
009	1135-2577-01	CONTROL ATTACHMENT	£354.63	Add to
012	9959-0616-16	SCREW M6SF M6 X 16	£2.06	Add to
014	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
015	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
016	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
017	9893-0616-16	SCREW M6 x 16	£2.47	Add to
019	1135-3614-01	COLLECTING PLATE	£101.13	Add to
021	9946-0525-16	SCREW M5 x 25	£2.47	Add to
022	1134-7257-04	THROTTLE CABLE ASSEMBLY	£227.14	Add to
023	1135-3948-01	RUBBER SLEEVE	£15.13	Add to
025	9959-0616-16	SCREW M6SF M6 X 16	£2.06	Add to
027	9997-0416-16	SCREW M6S M4 X 16	£3.64	Add to
028	9652-0007-04	CIRCLIP	£2.32	Add to
029	9946-0525-16	SCREW M5 x 25	£2.47	Add to
030	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
031	1134-7267-03	BRAKE PEDAL	£34.35	Add to
032	9595-0210-00	LOCATING PIN	£8.32	Add to
033	1134-6313-01	BEARING	£7.36	Add to
035	1134-7401-01	SPRING	£6.55	Add to
036	112789020/0	HEX-HEAD SCREW M5 x 25	£2.06	Add to
037	1137-1137-01	BRAKE CABLE DOUBLE ASSEMBLY	£179.39	Add to
038	1134-7321-01	EXTENSION SPRING	£5.76	Add to
039	1137-0589-01	BRAKE CABLE BRACKET	£27.09	Add to
041	112156603/0	SELF-LOCKING NUT M12	£2.06	Add to
042	1134-7216-02	DRIVE PEDAL	£190.93	Add to
043	1134-7217-01	SPACER	£9.54	Add to
044	9997-1050-16	SCREW M6S M10 x 50	£2.87	Add to
045	9548-0027-01	BEARING	£9.68	Add to
046	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
047	1134-4775-01	LOCK NUT	£2.47	Add to
048	1134-7054-03	CONTROL CABLE	£179.92	Add to
050	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
051	9570-0004-00	ELBOW LINK	£26.18	Add to
052	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
053	1137-0564-01	HST CABLE BRACKET	£54.48	Add to
054	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
055	112789008/0	HEX-HEAD SCREW M5 x 20	£2.06	Add to
056	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
057	1137-0702-01	BRAKE LOCK	£39.61	Add to
058	122671652/0	WASHER 12.3 x 20 x 2	£2.74	Add to
059	9599-0080-02	COTTER PIN	£2.47	Add to
060	9997-0835-16	SCREW M6S 8 x 35	£2.32	Add to
061	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
