Frame

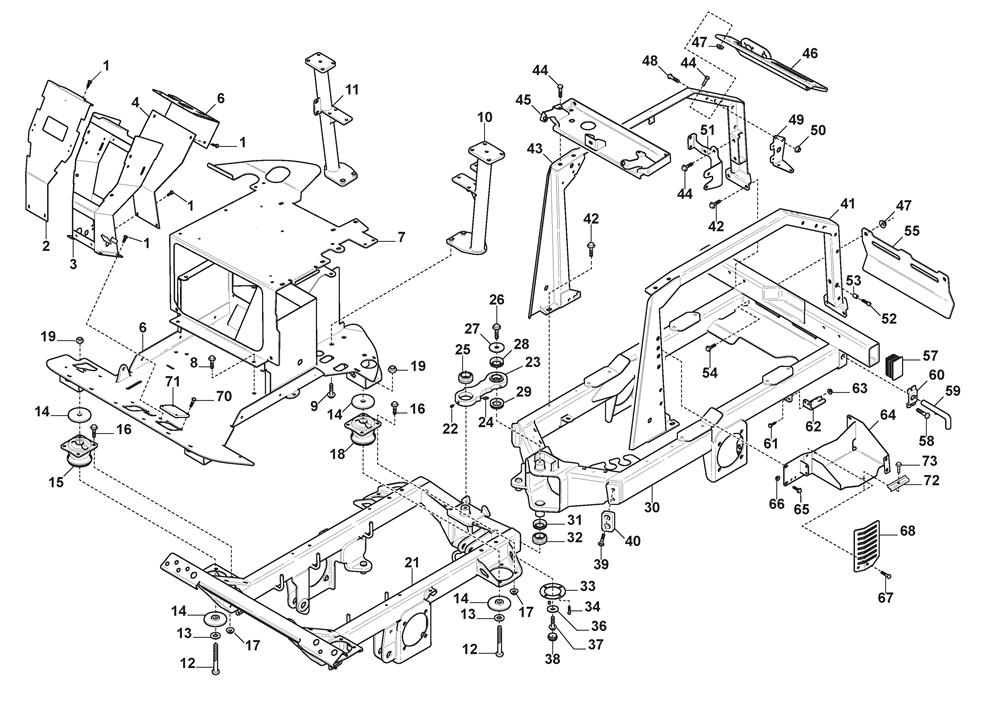

Frame assembly details for Stiga TITAN 740 DCR 2017 (13-7462-11) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	9893-0616-16	SCREW M6 x 16	£2.47	Add to
002	1137-0670-01	FRONT PLATE	£98.29	Add to
004	1134-7198-01	REAR PLATE-STEERING CONSOLE	£54.79	Add to
006	1137-0548-01	FLOOR PLATE	£1,737.71	Add to
009	9959-1225-16	SCREW M6SF 8.8	£2.06	Add to
011	1137-0544-01	ROPS ATTACHMENT ARM R/H	£422.72	Add to
012	082-202-01	SCREW M6S M16 x 100 FZB 8.8	£4.52	Add to
013	9699-0123-02	WASHER 17 x 40 x 6	£4.75	Add to
015	084-302-01	FRONT CABIN DAMPER [BLUE]	£202.92	Add to
016	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
017	9739-1031-22	NUT M10	£2.32	Add to
018	084-301-01	REAR CABIN DAMPER [WHITE]	£206.35	Add to
019	112295801/0	HEXAGON NUT M16	£2.06	Add to
022	9907-0610-16	SCREW	£3.55	Add to
023	1135-3018-01	LINK ASSEMBLY	£375.02	Add to
024	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
025	9547-0006-01	SPHERICAL BEARING	£34.35	Add to
026	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
027	1135-4008-01	WASHER V-RING	£11.18	Add to
028	9404-0204-01	SEALING RING	£12.55	Add to
029	9404-0202-01	SEALING RING	£4.52	Add to
031	9404-0202-01	SEALING RING	£4.52	Add to
032	9547-0007-01	SPHERICAL BEARING	£61.60	Add to
033	1135-4009-01	LOCK WASHER	£71.14	Add to
034	112760515/0	HEXAGONAL SCREW TC M8 x 20	£0.79	Add to
036	1135-4010-01	WASHER	£7.10	Add to
037	9991-1024-19	SCREW M10 x 24	£2.59	Add to
038	1135-4007-01	COVER ARTICULATION JOINT	£13.77	Add to
039	9924-0820-16	SCREW (OBSOLETE)	N/A
040	1135-3188-01	STEERING LIMIT	£26.18	Add to
042	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
044	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
045	1137-0501-01	FRONT CROSS MEMBER	£378.23	Add to
046	1137-0508-01	REAR CROSS MEMBER	£165.76	Add to
047	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
048	9893-0616-16	SCREW M6 x 16	£2.47	Add to
049	1137-0557-01	BRACKET-FUEL PUMP	£39.80	Add to
050	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
051	1137-0556-01	BRACKET-PTO BLOCK	£57.52	Add to
052	9939-1020-16	SCREW	£2.06	Add to
053	1134-0041-10	BUSH	£42.53	Add to
054	9945-0816-16	SCREW M8 X 16	£2.54	Add to
055	1137-0553-01	HEAT GUARD	£92.95	Add to
057	9403-0058-01	END CAP	£8.32	Add to
058	112735662/1	SCREW TCB TORX M6 x 12	£2.87	Add to
059	1134-7525-01	LOCKING PIN	£56.15	Add to
060	1134-7523-01	BRACKET-LOCKING PIN	£12.96	Add to
061	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
062	1137-0591-01	MUFFLER BRACKET	£29.14	Add to
063	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
064	1137-0509-01	BATTERY HOLDER	£177.43	Add to
065	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
066	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
068	1137-0551-01	BELT GUARD-ALTERNATOR	£49.29	Add to
070	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
072	1134-6943-01	BATTERY CLAMP	£18.95	Add to
073	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
