Motor Assy-Brake

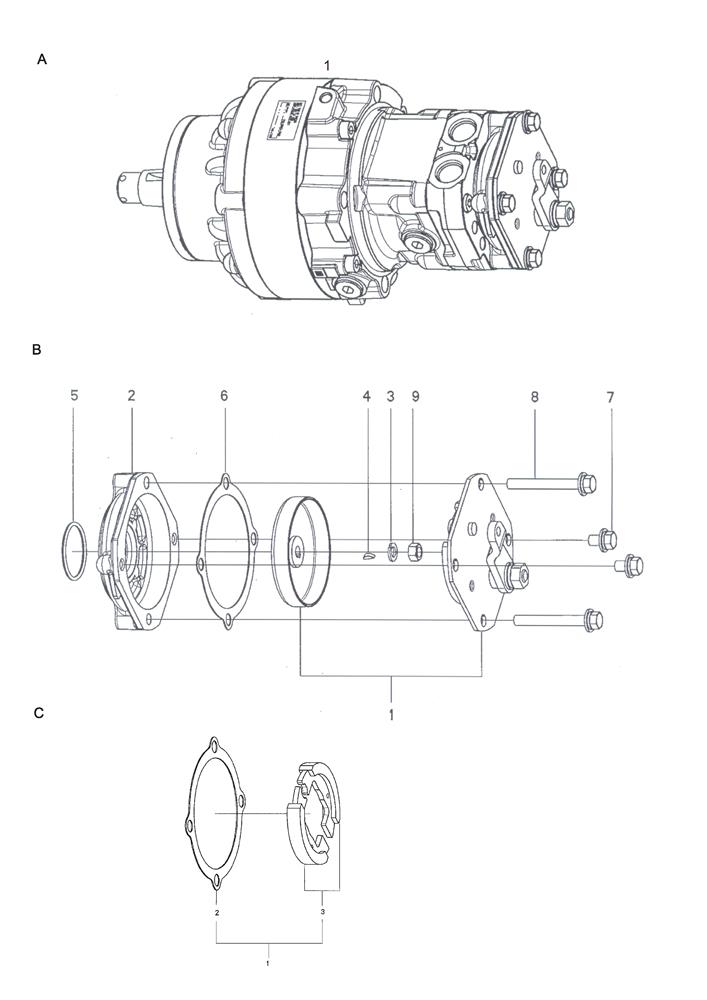

Motor Assy-Brake assembly details for Stiga TITAN 740 DCR 2017 (13-7462-11) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001A1137-0961-01WHEEL MOTOR KWM 13S-186D£3,931.64 Add to
001B1139-1753-01BRAKE KIT£899.66 Add to
001C1139-1705-01BRAKE SERVICE KIT [BIG BRAKE]£518.10 Add to
002B1139-1650-01BRAKE CASE (B02)£179.92 Add to
002C1139-1698-01GASKET (B02)£24.64 Add to
003B1139-1577-01WASHER (B03)£2.00 Add to
004B1139-1578-01KEY£5.87 Add to
005B1139-1580-01SEAL RING£3.69 Add to
006B1139-1698-01GASKET (B02)£24.64 Add to
009B1139-1589-01NUT 8£2.47 Add to
