Oil Tank

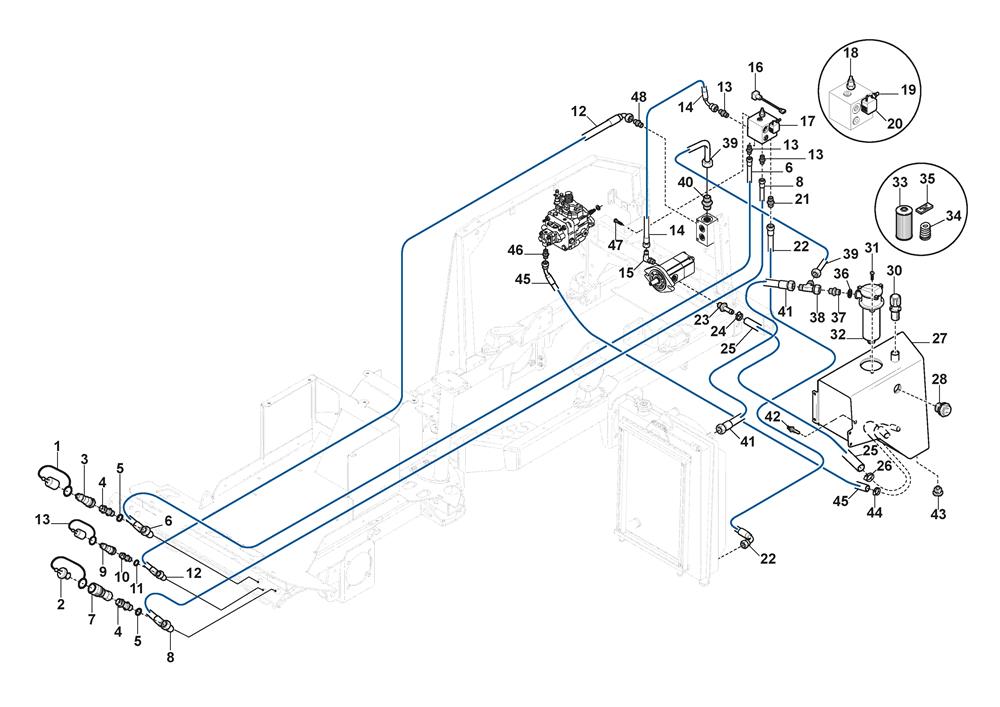

Oil Tank assembly details for Stiga TITAN 740 DCR 2017 (13-7462-11) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-7185-01	PLASTIC CAP 1/2"	£6.01	Add to
002	1134-7184-01	PLASTIC PLUG 1/2"	£5.73	Add to
003	1134-7181-01	QUICK CONNECTOR-MALE 1/2"	£19.09	Add to
004	1134-7180-01	HYDRAULIC COUPLING 1/2"	£21.59	Add to
005	1134-4948-03	SEAL WASHER 1/2"	£3.83	Add to
007	1134-7182-01	QUICK CONNECTOR-FEMALE 1/2"	£46.61	Add to
009	1134-6042-01	QUICK COUPLING-MALE 1/4"	£32.08	Add to
010	1134-7296-01	HYDRAULIC COUPLING 1/4"	£19.22	Add to
011	1134-4948-01	SEAL WASHER 1/4"	£2.59	Add to
013	1134-7175-01	PLASTIC CAP	£8.87	Add to
016	1134-7225-01	WIRE HARNESS [PTO]	£83.40	Add to
017	1134-7127-02	HYDRAULIC VALVE	£1,301.65	Add to
018	1139-2090-01	RELIEF VALVE (220 BAR)	£565.79	Add to
019	1139-2089-01	RELIEF VALVE (10 BAR)	£586.24	Add to
020	1139-2088-02	ELECTRIC VALVE C/W MAGNET	£422.72	Add to
023	1137-0573-01	HOSE NIPPLE	£27.88	Add to
027	1137-0485-01	HYDRAULIC OIL TANK	£1,055.02	Add to
028	1134-7379-02	SIGHT GLASS 1"	£52.58	Add to
030	1135-3965-01	AIR VENTING FILTER	£86.27	Add to
031	112760515/0	HEXAGONAL SCREW TC M8 x 20	£0.79	Add to
032	084-297-01	OIL FILTER CASING ASSEMBLY	£170.61	Add to
033	084-479-01	HYDRAULIC OIL FILTER-LONG	£184.24	Add to
034	1139-2087-01	SPRING FOR OIL FILTER	£50.70	Add to
035	1139-2098-01	SEAL RING KIT-OIL FILTER	£109.29	Add to
036	1134-4948-01	SEAL WASHER 1/4"	£2.59	Add to
037	084-983-01	HYDRAULIC CONNECTOR	£35.35	Add to
039	1137-0594-01	HYDRAULIC HOSE	£94.13	Add to
042	084-459-02	TEMPERATURE SENSOR	£170.47	Add to
043	1135-2936-02	MAGNET PLUG	£29.21	Add to
044	9578-0031-01	HOSE CLAMP	£5.58	Add to
046	1134-7187-01	HYDRAULIC COUPLING	£26.93	Add to
047	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
