Hand Controls

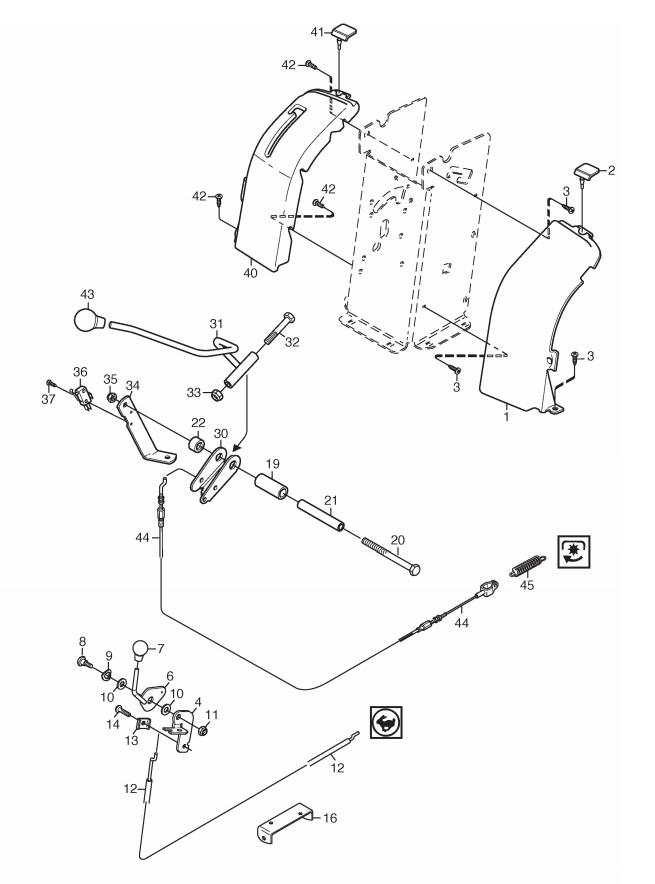

Hand Controls assembly details for Stiga VILLA SILENT 2017 (2F2720231/S16) 2017 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	337120152/0	LEFT DASHBOARD [GREY]	£68.42	Add to
002	125260000/0	ANTI-VIBRATION RUBBER GROMMET	£3.41	Add to
003	9893-0616-16	SCREW M6 x 16	£2.47	Add to
004	1134-5464-01	BRACKET	£28.90	Add to
006	1134-5465-02	THROTTLE LEVER	£17.59	Add to
007	1134-4078-01	KNOB	£5.87	Add to
008	1134-0240-00	SCREW	£9.14	Add to
009	122675110/0	WASHER D=13.5 x 20.5 x 0.5	£2.14	Add to
010	1134-4242-01	SPACER WASHER	£4.78	Add to
011	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
012	1134-4197-05	THROTTLE CABLE	£24.95	Add to
013	9500-9991-00	CABLE CLAMP	£7.78	Add to
014	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
016	1134-6370-01	WIRE GUIDE	£10.50	Add to
019	1134-5508-01	CONTROL SLEEVE	£17.86	Add to
020	9997-0812-02	SCREW M6S M8 x 120	£2.06	Add to
021	1134-5274-02	SPACER	£9.68	Add to
022	1134-3047-01	SPACER	£8.04	Add to
030	1134-5271-01	CONTROL BRACKET	£35.71	Add to
031	1134-5276-01	CONTROL LEVER	£42.53	Add to
032	112692080/0	HEX-HEAD SCREW M8 x 90	£2.06	Add to
033	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
034	1134-5356-01	STRUT	£20.45	Add to
035	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
036	9400-0360-01	MICRO SWITCH	£8.60	Add to
036A	9400-0360-01	MICRO SWITCH	£8.60	Add to
037	9840-7716-16	SCREW	£2.32	Add to
040	337120151/0	RIGHT DASHBOARD [GREY]	£68.42	Add to
041	125260000/0	ANTI-VIBRATION RUBBER GROMMET	£3.41	Add to
042	9893-0616-16	SCREW M6 x 16	£2.47	Add to
043	1134-2551-01	GEAR KNOB	£11.59	Add to
044	1134-3573-06	PTO CABLE	£34.35	Add to
045	1134-1242-02	SPRING	£10.50	Add to
