Belt Covers and Blades

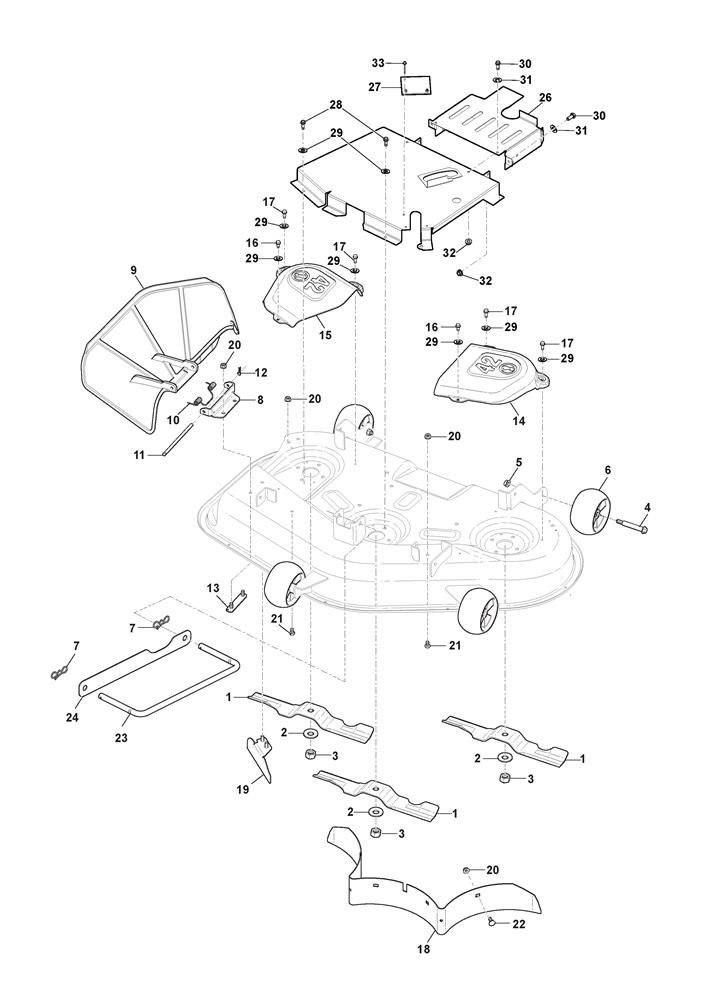

Belt Covers and Blades assembly details for Stiga ZT 3107 T (2F1020611/S17) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-9210-02MULCHING BLADE 377 ZTR [3 PCS]£99.76 Add to
002118830309/0WASHER£11.32 Add to
003118830310/0NUT£7.36 Add to
004118830665/0BOLT£15.95 Add to
005118830653/0NUT£5.21 Add to
006118830061/0ANTI-SCALP WHEEL 5 x 3£21.40 Add to
007118830162/0R CLIP .091 x 1.875£4.64 Add to
008118830074/0BRACKET£21.40 Add to
009118830132/0DISCHARGE CHUTE [GREY]£59.05 Add to
10118830194/0TORSION SPRING£53.42 Add to
11118830023/0PIN 5/16 x 5.80£17.72 Add to
12118830165/0HAIR PIN 0.08 x .18 x 1.18£7.78 Add to
13118830160/0CARRIAGE BOLT 0.31-18 x 0.7£2.71 Add to
14118830130/0L/H BELT COVER 42"£45.35 Add to
15118830131/0R/H BELT COVER 42"£45.35 Add to
16118830326/0SELF-TAPPING SCREW£2.71 Add to
17118830669/0SCREW£2.71 Add to
18118830066/0REAR BAFFLE 42"£28.59 Add to
19118830106/0DISCHARGE BAFFLE 42"£9.85 Add to
20118830161/0LOCK NUT .31-18£2.71 Add to
21118830160/0CARRIAGE BOLT 0.31-18 x 0.7£2.71 Add to
22118830596/0BOLT£2.71 Add to
23118830098/0HANDLE£40.78 Add to
24118830111/0COOLER PLATE£24.64 Add to
25118830136/0BELT GUARD 42"£77.95 Add to
26118830137/0REAR DECK BELT COVER£19.22 Add to
27118830146/0GUARD£12.96 Add to
28118830668/0SCREW£2.71 Add to
29118830662/0NUT£5.19 Add to
30118830565/0BOLT£2.71 Add to
31118830616/0WASHER£5.05 Add to
32118830654/0NUT£5.05 Add to
33118830660/0RIVET£2.71 Add to
