Mower Deck, Belts, Idlers

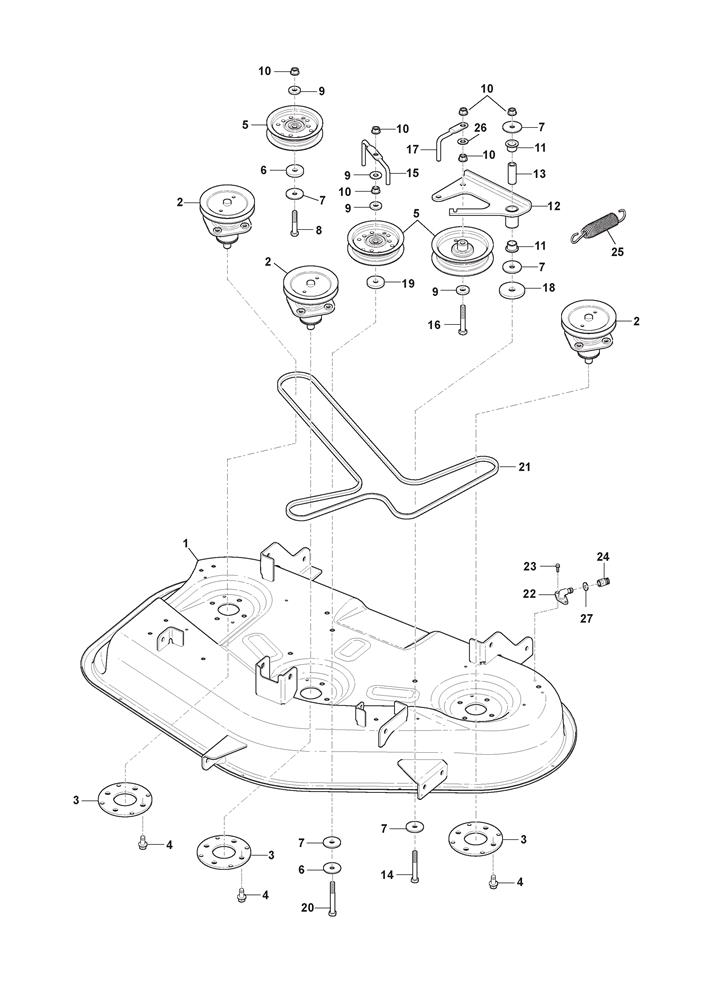

Mower Deck, Belts, Idlers assembly details for Stiga ZT 3107 T (2F1020611/S17) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118830200/0CUTTER DECK 42"£913.28 Add to
002118830201/0BLADE SHAFT£139.00 Add to
003118830060/0BLADE SHAFT PLATE£31.17 Add to
004118830327/0SCREW£4.52 Add to
005118830170/0IDLER PULLEY ASSEMBLY 4"£62.03 Add to
006118830606/0WASHER£7.10 Add to
007118830626/0WASHER£4.52 Add to
008118830578/0BOLT£2.87 Add to
009118830628/0WASHER£7.10 Add to
010118830653/0NUT£5.21 Add to
011118830148/0FLANGED BUSH£13.64 Add to
012118830113/0IDLER ARM£60.24 Add to
013118830048/0SPACER£5.05 Add to
014118830569/0BOLT£5.60 Add to
015118830071/0BELT GUIDE£18.68 Add to
016118830578/0BOLT£2.87 Add to
017118830058/0BELT GUIDE£18.68 Add to
018118830627/0WASHER£16.36 Add to
019118830612/0WASHER£2.71 Add to
020118830572/0BOLT£4.78 Add to
0211134-9214-01DECK DRIVE BELT [KEVLAR] ZTR 42£90.22 Add to
022118830112/0WATER HOSE CONNECTION£16.36 Add to
023118830667/0SCREW£5.19 Add to
024118830107/0QUICK DISCONNECT COUPLING£31.17 Add to
025118830195/0EXTENSION SPRING£35.71 Add to
026118830613/0WASHER£6.69 Add to
027118830546/0O RING£9.54 Add to
