Belt Covers, Deck Wheels

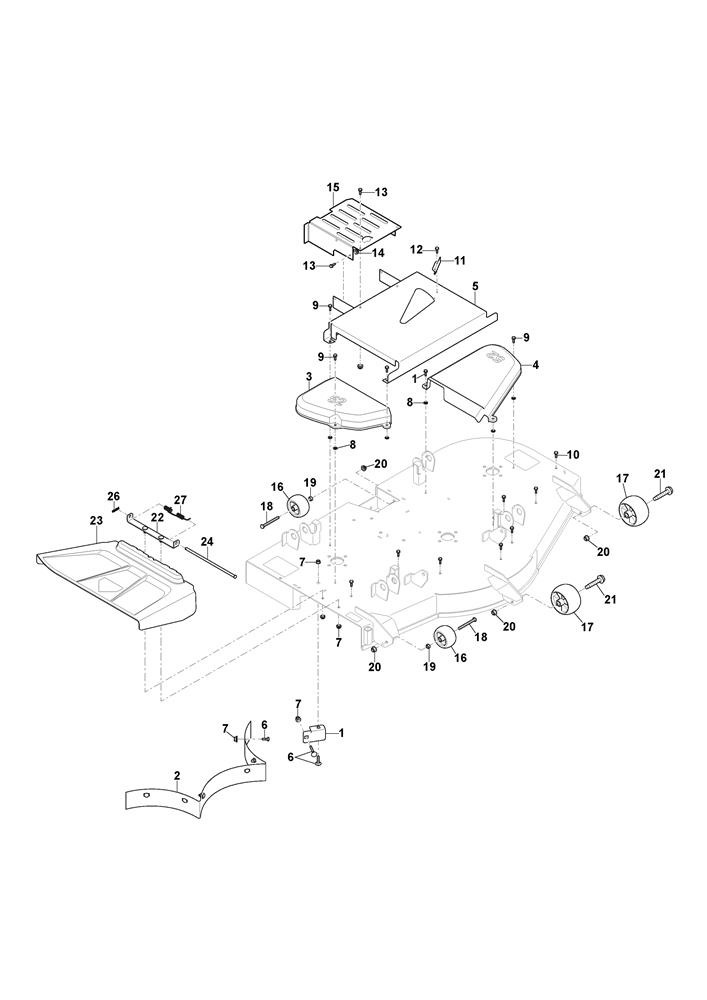

Belt Covers, Deck Wheels assembly details for Stiga ZT 5132 T (2F1020821/S17) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118830227/0BRACKET£6.14 Add to
002118830229/0REAR BAFFLE£28.59 Add to
003118830286/0R/H BELT COVER 52"£42.53 Add to
004118830287/0L/H BELT COVER 52"£42.53 Add to
005118830291/0BELT COVER£84.77 Add to
006118830160/0CARRIAGE BOLT 0.31-18 x 0.7£2.71 Add to
007118830161/0LOCK NUT .31-18£2.71 Add to
008118830662/0NUT£5.19 Add to
009118830669/0SCREW£2.71 Add to
010118830674/0SCREW£6.42 Add to
011118830543/0DECK SPRING GUARD£7.23 Add to
012118830661/0RIVET£2.71 Add to
013118830565/0BOLT£2.71 Add to
014118830654/0NUT£5.05 Add to
015118830720/0REAR DECK BELT GUARD£20.99 Add to
016118830206/0CASING WHEEL£30.26 Add to
017118830061/0ANTI-SCALP WHEEL 5 x 3£21.40 Add to
018118830575/0BOLT£9.54 Add to
019118830643/0NUT£6.87 Add to
020118830653/0NUT£5.21 Add to
021118830665/0BOLT£15.95 Add to
022118830257/0CHUTE MOUNTING BRACKET£9.00 Add to
023118830288/0SIDE DISCHARGE CHUTE£61.88 Add to
024118830262/0ROD£14.05 Add to
026118830165/0HAIR PIN 0.08 x .18 x 1.18£7.78 Add to
027118830342/0SPRING£7.36 Add to
