Hood, Fenders, Seat, Control Panel

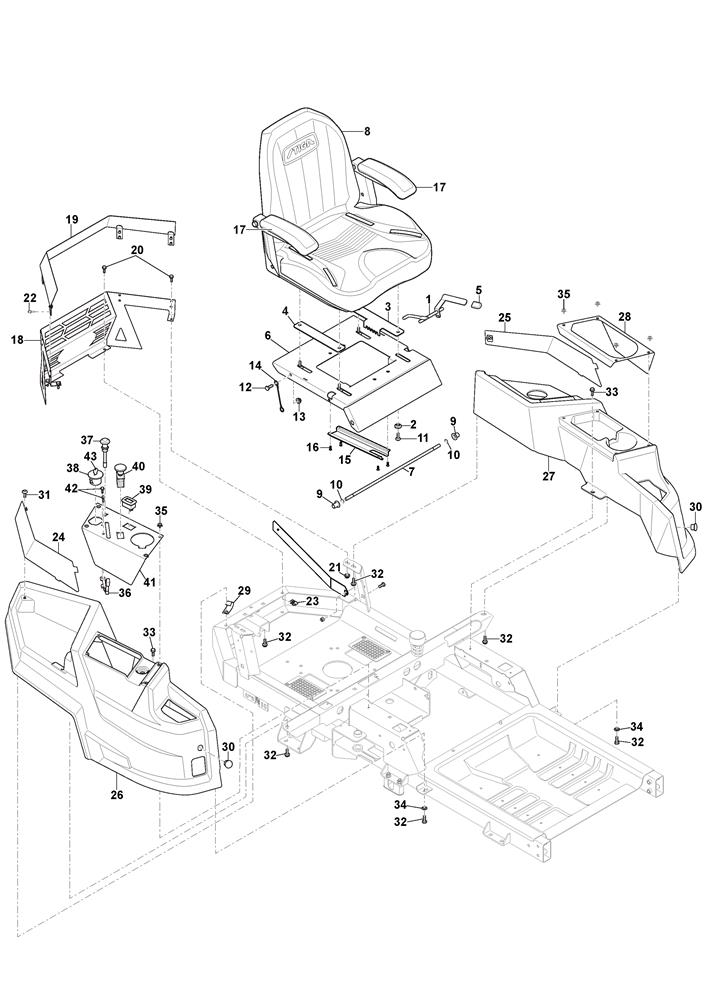

Hood, Fenders, Seat, Control Panel assembly details for Stiga ZT 5132 T (2F1020821/S17) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118830220/0ADJUSTABLE SEAT LATCH£35.21 Add to
002118830024/0FLANGED BUSH .325 x .499 x .26 x .88£7.10 Add to
003118830094/0SEAT TRACK PLATE£16.91 Add to
004118830210/0ADJUSTABLE SEAT SLIDE PLATE£14.05 Add to
005118830108/0SEAT LEVER GRIP£5.05 Add to
006118830221/0SEAT PLATE£121.70 Add to
007118830263/0SEAT PIVOT ROD£39.13 Add to
008118830284/0SEAT£729.32 Add to
009118830302/0FLANGED BUSH£4.23 Add to
010118830548/0CIRCLIP .375 x .035£2.71 Add to
011118830555/0SCREW£6.94 Add to
012118830561/0BOLT£4.52 Add to
013118830679/0NUT£5.21 Add to
014118830315/0WIRE CABLE£17.59 Add to
015118830135/0SEAT SWITCH GUARD£12.68 Add to
016118830661/0RIVET£2.71 Add to
017118830678/0SEAT ARM REST KIT£259.19 Add to
018118830238/0REAR ENGINE SHROUD£42.53 Add to
019118830239/0ENGINE SHROUD TOP TRIM [YELLOW]£34.35 Add to
020118830550/0BOLT£5.05 Add to
021118830654/0NUT£5.05 Add to
022118830311/0RIVET£2.71 Add to
023118830320/0NUT£5.05 Add to
024118830235/0R/H BLOCK-OFF PANEL [YELLOW]£33.69 Add to
025118830237/0L/H BLOCK-OFF PANEL [YELLOW]£33.69 Add to
026118830226/0R/H MUDGUARD [GREY]£245.56 Add to
027118830285/0L/H MUDGUARD [GREY]£157.89 Add to
028118830236/0L/H CONTROL PANEL/CUP HOLDER£33.86 Add to
029118830316/0J-CLAMP£7.23 Add to
030118830332/0HOLE PLUG CAP [BLACK]£2.71 Add to
031118830347/0PIN FASTENER [BLACK]£3.69 Add to
032118830670/0SCREW£2.71 Add to
033118830326/0SELF-TAPPING SCREW£2.71 Add to
034118830628/0WASHER£7.10 Add to
035118830312/0RIVET£9.14 Add to
036118830313/0THROTTLE CABLE£71.14 Add to
037118830314/0CHOKE CABLE [SNAP IN]£39.80 Add to
038118830030/0IGNITION SWITCH ASSEMBLY£49.34 Add to
039118830209/0HOUR METER£83.40 Add to
040118830109/0CLUTCH SWITCH£75.23 Add to
041118830225/0CONTROL PANEL [YELLOW]£48.96 Add to
042118830676/0SCREW£2.71 Add to
042118830680/0IGNITION KEY£17.59 Add to
