PTO

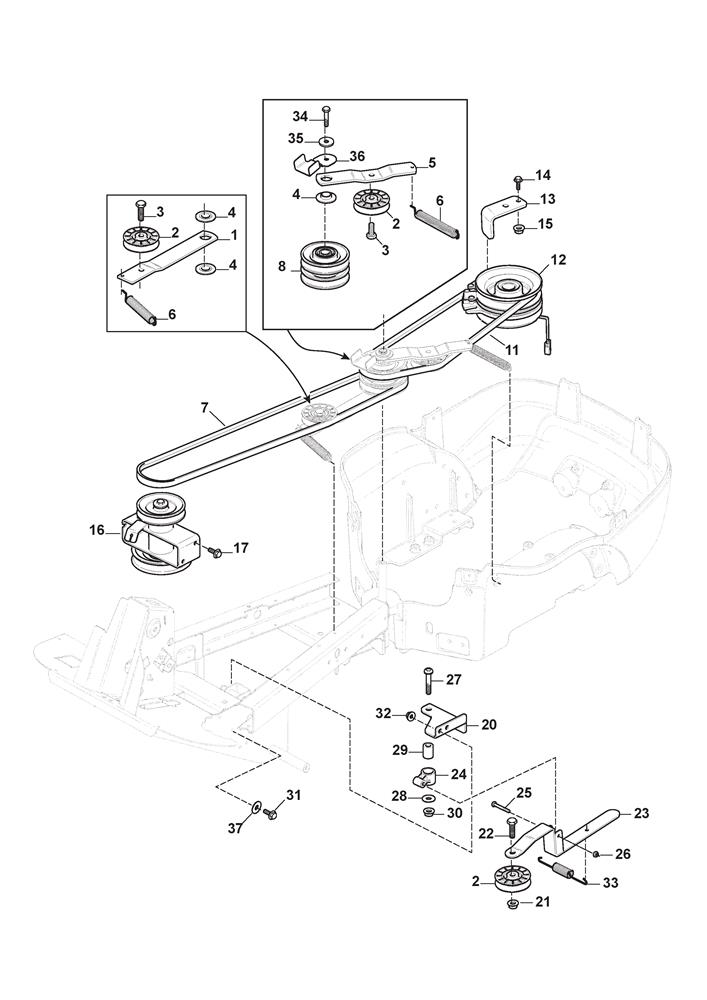

PTO assembly details for Stiga Park 220 (2F5820321/S16 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0791-01	TENSION WHEEL ARM	£18.53	Add to
002	387605008/0	TENSION PULLEY [GREY]	£35.71	Add to
003	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
004	1134-5548-01	SPACER	£14.32	Add to
005	1137-0918-01	TENSION WHEEL ARM	£17.59	Add to
006	1134-5824-01	SPRING	£5.87	Add to
007	1134-9167-01	PTO DRIVE BELT	£32.99	Add to
008	387605005/0	DOUBLE CENTRE PULLEY ASSEMBLY	£87.07	Add to
011	1134-9172-01	PTO DRIVE BELT	£34.35	Add to
011	1134-9172-01	PTO DRIVE BELT	£34.35	Add to
012	1137-0863-01	MAGNETIC CLUTCH	£340.87	Add to
014	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
015	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
016	387605006/0	DOUBLE IINTERMEDIATE PULLEY	£136.64	Add to
017	9945-0816-16	SCREW M8 X 16	£2.54	Add to
020	387773515/0	PULLEY BRACKET	£12.42	Add to
021	9739-1031-22	NUT M10	£2.32	Add to
022	112794400/0	HEX-HEAD SCREW 10 x 35	£2.47	Add to
023	387205002/1	DECK BELT IDLER ASSEMBLY	£90.22	Add to
024	1134-6314-01	TENSION ARM ATTACHMENT	£9.00	Add to
025	112689500/0	SCREW M6 x 40	£2.06	Add to
026	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
027	112794987/0	SCREW M10 x 50 GEOMET 321A	£2.06	Add to
028	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
029	1134-4619-01	SPACER	£9.39	Add to
030	9739-1031-22	NUT M10	£2.32	Add to
031	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
032	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
033	1137-1029-01	SPRING	£3.81	Add to
034	1134-7829-01	SCREW c/w LOCK	£2.06	Add to
035	1134-5127-01	WASHER	£4.52	Add to
036	1137-0800-01	WASHER	£5.60	Add to
037	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
