Electrical Parts

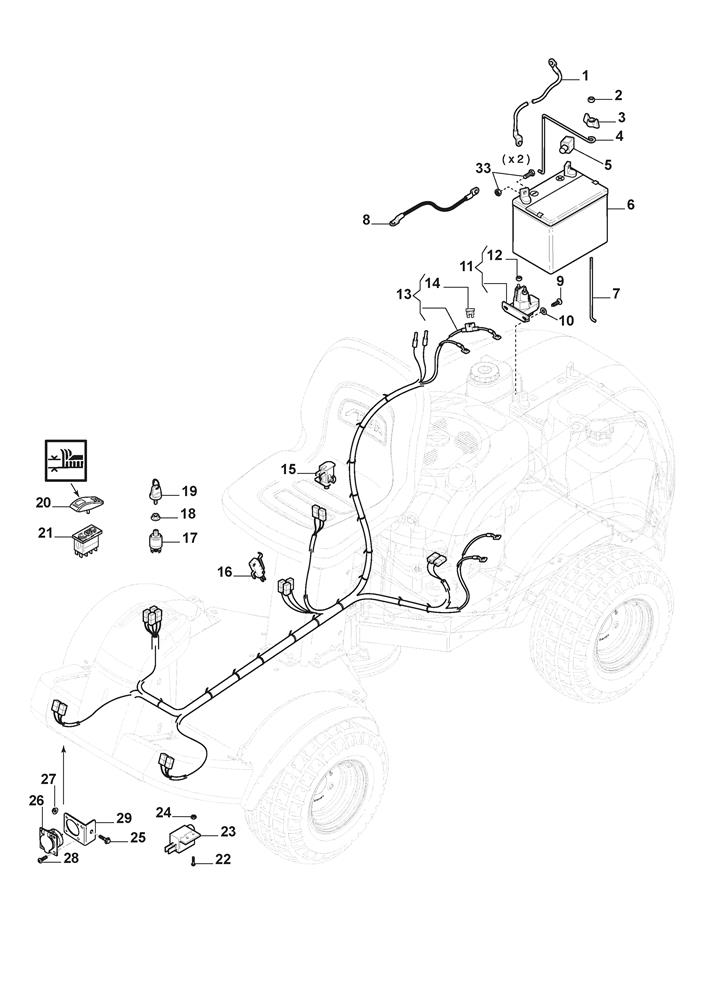

Electrical Parts assembly details for Stiga Park 320 (2F6120511/S16 2018 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-0234-02	BATTERY CABLE (+)	£24.95	Add to
002	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
003	1134-4481-02	WING NUT	£6.14	Add to
004	1134-5994-01	BATTERY LOOP	£9.82	Add to
005	1134-2310-01	GUARD CAP (+)	£9.28	Add to
006	118120065/0	BATTERY YUASA 12V 30AH NO RETURNS ON THIS ITEM	£109.58	Add to
007	1134-5995-01	BATTERY LOOP	£6.55	Add to
008	1134-5992-01	BATTERY CABLE (L = 950)	£28.90	Add to
009	9852-8013-16	SCREW	£2.47	Add to
010	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
011	118736112/0	SOLENOID	£39.80	Add to
012	112361005/0	HEXAGON NUT 1/4" UNC	£2.71	Add to
013	187040308/0	WIRING HARNESS	£170.61	Add to
014	1134-3496-06	FUSE 20A	£2.06	Add to
015	1134-3156-02	SEAT SWITCH [GREY]	£47.97	Add to
016	9400-0360-01	MICRO SWITCH	£8.60	Add to
017	1134-4093-01	IGNITION SWITCH	£67.05	Add to
018	1134-4749-01	NUT	£5.05	Add to
019	1134-4734-01	IGNITION KEY	£17.72	Add to
020	9400-0280-03	SWITCH COVER-HEIGHT ADJUST	£18.27	Add to
021	9400-0282-01	SWITCH C/W DIODE No returns on this item	£76.59	Add to
022	112789008/0	HEX-HEAD SCREW M5 x 20	£2.06	Add to
023	1134-3399-02	SWITCH	£45.26	Add to
024	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
025	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
026	387149302/0	2 POLE FEMALE CONNECTOR	£11.33	Add to
027	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
028	112735105/0	SELF-TAP SCREW TE 3.5 x 16	£2.06	Add to
029	1137-0075-01	ATTACHMENT BRACKET	£9.94	Add to
033	1134-6113-02	BATTERY SCREWS PACK	£13.37	Add to
