Steering

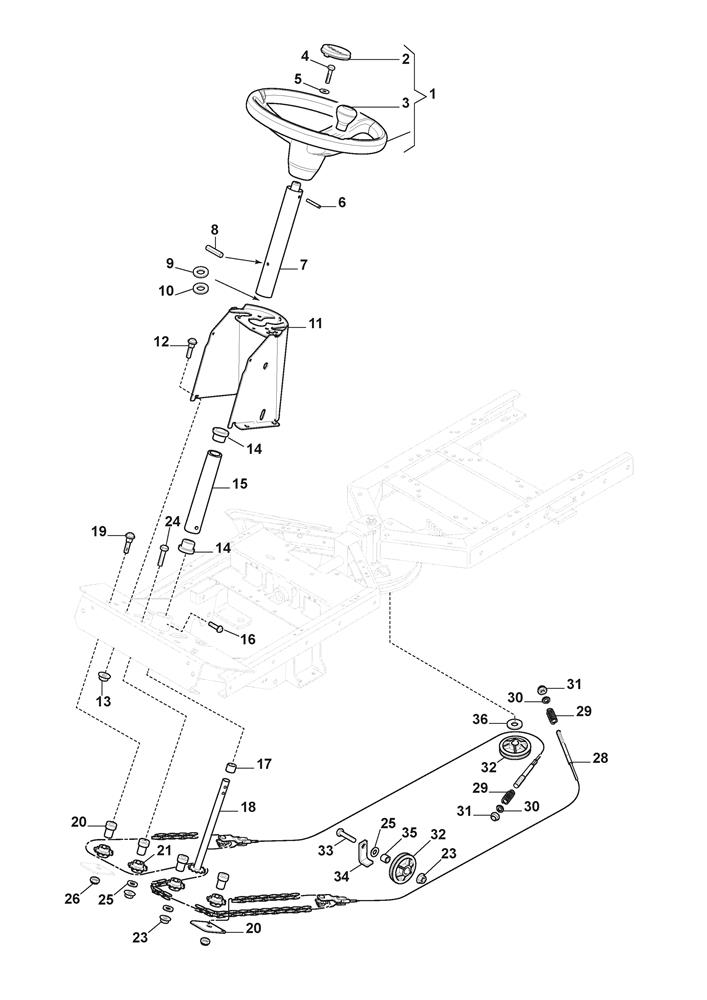

Steering assembly details for Stiga Park 320 G (2F6120241/ST1) 2018 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	337961200/0	STEERING WHEEL [BLACK]	£287.40	Add to
002	337580550/0	STEERING WHEEL PLATE	£8.75	Add to
003	187593701/0	STEERING WHEEL KNOB	£48.11	Add to
004	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
005	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
006	112620299/0	SPIROL FLEXIBLE PIN 6 x 45	£1.91	Add to
007	387520127/0	GAP+CTF UPPER STEER. COLUMN ASSY PCC	£90.98	Add to
008	9595-0262-00	LOCATING PIN	£2.06	Add to
009	9699-0103-02	WASHER	£2.47	Add to
010	9699-0114-02	WASHER 16 x 38 x 1	£2.32	Add to
011	1134-5349-01	STEERING CONSOLE [YELLOW]	£106.58	Add to
013	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
014	1134-1901-01	PLASTIC BUSH	£12.27	Add to
015	387520125/0	LOWER STEERING COLUMN	£39.80	Add to
016	9893-0616-16	SCREW M6 x 16	£2.47	Add to
017	1134-2837-03	SPACER	£11.46	Add to
018	1137-0079-04	STEERING ROD ASSEMBLY	£46.61	Add to
019	9897-1060-12	SCREW M10 x 60	£3.28	Add to
020	1134-5653-01	SPACER	£9.14	Add to
021	1134-2816-01	SPROCKET	£10.77	Add to
023	9739-1031-22	NUT M10	£2.32	Add to
024	112692395/2	SCREW M10 x 60	£3.49	Add to
025	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
026	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
028	1134-6380-02	STEERING CHAIN ASSEMBLY	£135.19	Add to
029	1134-3817-01	COMPRESSION SPRING	£12.96	Add to
030	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
031	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
032	1134-0072-02	STEERING PULLEY	£7.78	Add to
033	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
034	1134-0046-00	BRACKET	£2.14	Add to
035	1134-0041-01	BUSH	£9.41	Add to
