PTO

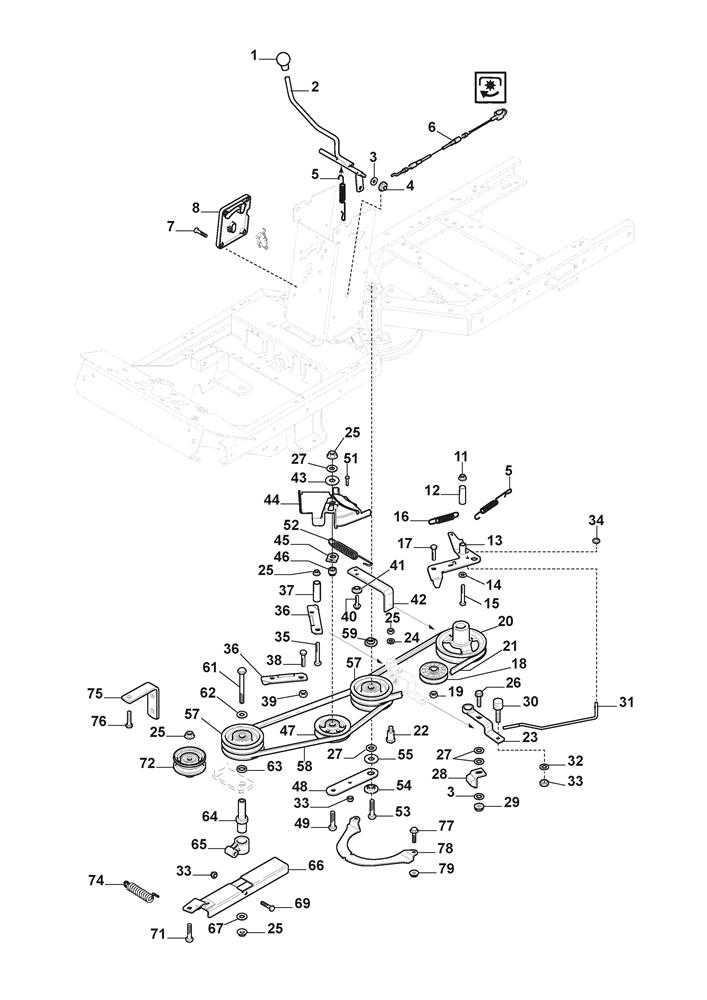

PTO assembly details for Stiga Park 340 PX (2F6130511/S18) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-2551-01	GEAR KNOB	£11.59	Add to
002	1134-6301-01	ENGAGE LEVER	£43.93	Add to
003	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
004	1134-3790-02	BEARING	£9.14	Add to
005	4231-0013-00	SPRING	£8.87	Add to
006	1134-3573-05	PTO CABLE	£32.99	Add to
007	9946-0525-16	SCREW M5 x 25	£2.47	Add to
008	1134-5368-01	DASHBOARD	£24.95	Add to
011	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
012	1134-1565-10	SPACER	£8.73	Add to
013	1134-2018-02	TENSION ARM	£39.29	Add to
014	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
015	112691800/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
016	1135-3307-01	BRAKE SPRING	£23.72	Add to
017	112794300/0	SCREW TE M10 x 30	£1.91	Add to
018	387605008/0	TENSION PULLEY [GREY]	£35.71	Add to
019	112295200/0	HEXAGON NUT M10	£1.79	Add to
021	1134-9173-01	PTO DRIVE BELT [KEVLAR]	£31.63	Add to
022	1134-4163-02	SHOULDER BOLT	£8.87	Add to
023	387318251/0	BRAKE ARM	£32.99	Add to
025	9739-1031-22	NUT M10	£2.32	Add to
026	112818700/0	SCREW M8 x 25	£2.81	Add to
027	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
028	1134-4164-03	BRAKE PAD	£32.99	Add to
029	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
030	1134-4170-01	PIVOT BOLT	£14.32	Add to
031	137033100/0	BRAKE ROD	£22.63	Add to
032	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
033	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
034	112604897/0	STARLOCK WASHER D=5	£2.06	Add to
035	112794950/0	SCREW M10 x 80	£4.11	Add to
036	337546547/0	PLATE	£5.64	Add to
037	1134-0041-03	BUSH	£11.59	Add to
038	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
039	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
040	9893-0616-16	SCREW M6 x 16	£2.47	Add to
041	325160039/0	SPACER	£2.06	Add to
042	1134-3958-01	BELT GUIDE	£17.45	Add to
043	137038000/0	BUSH	£5.46	Add to
044	337600001/2	PULLEY PROTECTION GUARD	£9.31	Add to
045	337546545/0	SPRING HOOKING PLATE	£5.60	Add to
046	1134-1888-06	SPACER	£9.41	Add to
047	387605009/0	TENSION PULLEY ASSY	£50.80	Add to
048	1134-1730-02	TENSIONING WHEEL ARM	£42.53	Add to
049	112692395/2	SCREW M10 x 60	£3.49	Add to
051	112792410/0	HEX-HEAD SCREW M6 x 40	£2.06	Add to
052	1134-5713-04	SPRING	£7.73	Add to
053	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
054	1134-0222-00	TENSION WASHER	£14.45	Add to
055	9699-0109-02	WASHER 10.5 x 40 x 2	£2.32	Add to
057	387605002/0	DOUBLE CENTRE PULLEY ASSEMBLY	£84.77	Add to
058	1134-9239-01	TRANSMISSION BELT X17 ZS31	£66.84	Add to
059	1134-5548-01	SPACER	£14.32	Add to
061	9997-1011-06	SCREW M6S M10 x 110	£11.32	Add to
062	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
063	1134-0052-00	SPACER	£8.87	Add to
064	1134-5663-01	SHAFT	£43.93	Add to
065	1134-6314-01	TENSION ARM ATTACHMENT	£9.00	Add to
066	1134-5660-01	TENSION ARM	£42.83	Add to
067	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
069	112689515/0	HEX-HEAD SCREW M6 x 45	£2.06	Add to
071	112794900/0	HEX-HEAD SCREW M10 x 50	£2.06	Add to
072	387605013/0	TENSION PULLEY ASSY	£41.44	Add to
074	1134-5824-01	SPRING	£5.87	Add to
075	1134-5112-01	SPRING ATTACHMENT BRACKET	£27.27	Add to
076	9945-0816-16	SCREW M8 X 16	£2.54	Add to
077	9959-0612-16	SCREW M6SF M6 x 12 TL	£1.79	Add to
078	1134-3654-01	GUARD	£35.71	Add to
079	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
