Chassis

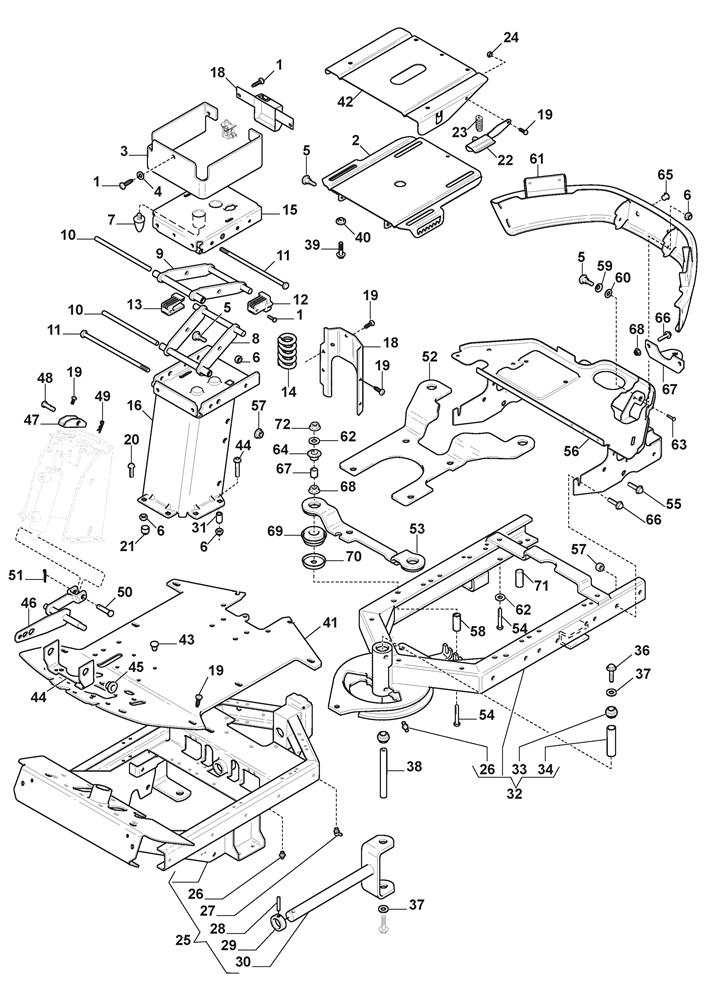

Chassis assembly details for Stiga Park 540 DPX (2F6236281/S16 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
002	387773513/0	LOWER SLIDE PLATE	£95.67	Add to
003	1137-0038-01	COVER	£41.10	Add to
004	9699-0087-02	WASHER 5.3 x 16 x 2	£2.47	Add to
005	1134-0240-00	SCREW	£9.14	Add to
006	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
007	1137-0064-01	RUBBER CONE	£42.53	Add to
008	1137-0260-01	LINK ASSEMBLY A	£65.69	Add to
009	1137-0261-01	LINK ASSEMBLY B	£67.05	Add to
010	1137-0263-01	TUBE	£9.68	Add to
012	1137-0033-01	BLOCK	£3.41	Add to
013	1137-0033-02	BLOCK	£3.41	Add to
014	1134-4160-01	SEAT SPRING	£24.95	Add to
015	1137-0057-01	SEAT BRACKET ASSEMBLY [YELLOW]	£122.18	Add to
018	387602511/0	OPC MICRO PROTECION COVER	£35.71	Add to
019	9893-0616-16	SCREW M6 x 16	£2.47	Add to
021	118203854/0	NUT CAP M8 [BLACK]	£2.06	Add to
022	1134-6073-01	HANDLE ASSEMBLY	£41.16	Add to
023	1134-3262-01	SPRING	£8.73	Add to
024	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
025	387800039/0	FRONT FRAME ASSEMBLY [4WD]	£933.72	Add to
026	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
027	9501-0504-01	GREASE NIPPLE M6	£3.69	Add to
028	9595-0262-00	LOCATING PIN	£2.06	Add to
029	1134-0031-00	PIVOT SHAFT STOP	£24.95	Add to
031	1134-1565-08	SPACER	£9.94	Add to
032	1134-6046-01	REAR FRAME (DIESEL)	£582.84	Add to
033	9547-0001-00	BEARING	£24.95	Add to
034	1134-5705-01	SPACER	£19.36	Add to
036	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
037	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
038	1134-5988-01	CENTRE SHAFT	£22.76	Add to
039	112793301/0	HEX-HEAD SCREW M8 x 25	£2.06	Add to
040	1134-6078-01	FLANGE WASHER	£5.87	Add to
041	1134-6586-01	FLOOR PLATE	£170.61	Add to
042	1134-6090-01	UPPER SLIDE PLATE	£99.76	Add to
044	1134-4117-01	BRACKET	£32.99	Add to
044	9897-0880-12	SCREW MVBF 8 x 80	£2.32	Add to
045	1134-2684-01	BUSH	£7.10	Add to
046	387256051/0	LIFT LEVER ASSEMBLY	£124.29	Add to
047	1134-4815-01	CYLINDER BRACKET	£58.87	Add to
048	1134-4816-01	PIN	£13.64	Add to
049	9598-0002-02	SPRING PIN 2.5mm L=47mm	£2.06	Add to
050	1134-4817-01	PIN	£12.96	Add to
051	9599-0054-02	SPLIT PIN	£2.32	Add to
052	387547037/0	ENGINE BRACKET	£138.20	Add to
053	387785261/0	FRONT ENGINE SUPPORT	£95.67	Add to
054	9997-1011-06	SCREW M6S M10 x 110	£11.32	Add to
055	9945-0816-16	SCREW M8 X 16	£2.54	Add to
056	1134-5944-01	TANK SHELF ASSEMBLY	£279.64	Add to
057	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
058	1134-6887-01	COLLAR	£9.28	Add to
059	9665-0002-00	BOWL WASHER	£2.61	Add to
060	1134-4242-01	SPACER WASHER	£4.78	Add to
061	387457003/0	REAR BUMPER	£231.93	Add to
062	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
063	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
064	322672201/0	RUBBER GROMMET	£6.27	Add to
065	1134-4100-01	PLUG	£4.78	Add to
066	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
067	1134-4919-01	SPACER	£9.54	Add to
068	9739-1031-22	NUT M10	£2.32	Add to
