Engine

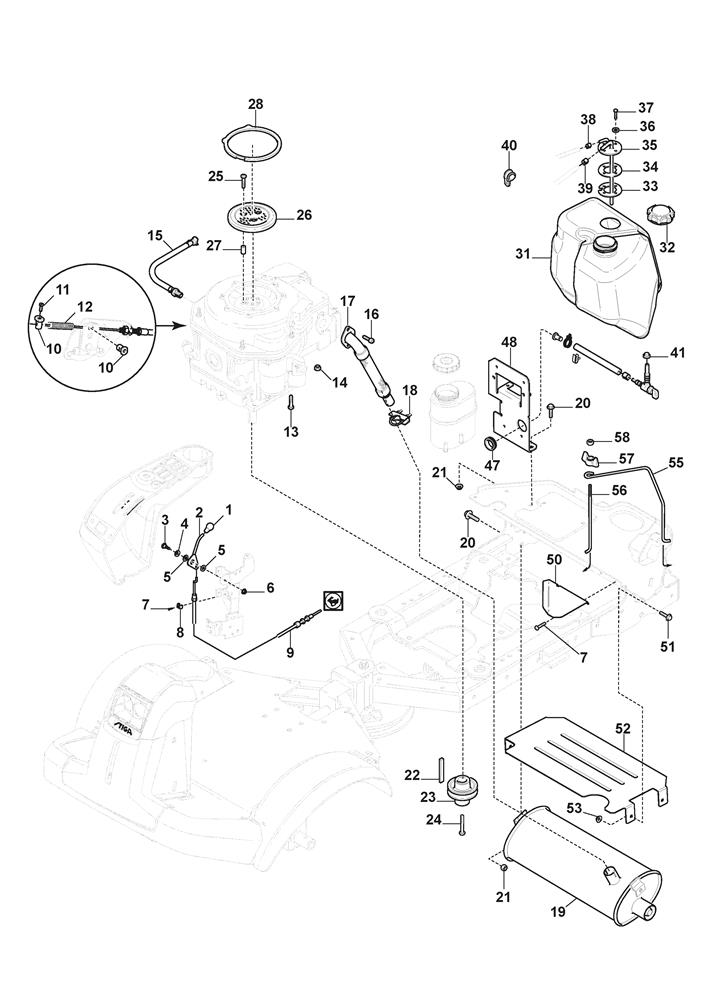

Engine assembly details for Stiga Park 540 DPX (2F6236281/S16 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-4078-01	KNOB	£5.87	Add to
002	1134-4077-02	THROTTLE CONTROL LEVER	£27.27	Add to
003	1134-0240-00	SCREW	£9.14	Add to
004	9665-0002-00	BOWL WASHER	£2.61	Add to
005	1134-4242-01	SPACER WASHER	£4.78	Add to
006	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
007	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
008	1137-0115-01	WIRE CLAMP	£2.18	Add to
009	187000203/0	THROTTLE CABLE [DIESEL]	£22.08	Add to
010	1134-6118-01	CABLE NIPPLE	£12.96	Add to
011	112788512/0	SCREW M4 x 12	£2.06	Add to
012	1134-6126-01	SPRING	£12.96	Add to
013	112794900/0	HEX-HEAD SCREW M10 x 50	£2.06	Add to
014	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
015	1134-5827-04	OIL DRAIN ASSEMBLY	£34.35	Add to
016	112760515/0	HEXAGONAL SCREW TC M8 x 20	£0.79	Add to
017	1134-6012-01	EXHAUST PIPE	£401.85	Add to
018	9578-0011-01	TUBE CLAMP	£14.58	Add to
019	187751507/0	MUFFLER ASSY	£342.17	Add to
020	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
021	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
022	9600-0251-00	KEY L=3/4"	£4.91	Add to
023	1134-6139-01	ENGINE BELT PULLEY	£85.54	Add to
024	112737315/0	THREADED SCREW 7/16" x 2½" 20 UNF	£6.27	Add to
025	112727793/0	SCREW M6 x 30	£2.06	Add to
026	1134-4962-01	FAN COVER	£67.05	Add to
028	1134-6463-01	SEAL RING	£19.77	Add to
031	1134-5938-02	FUEL TANK (DIESEL)	£207.95	Add to
032	125795001/1	FUEL TANK CAP	£8.32	Add to
033	337207611/0	FUEL TANK FLANGE (DIESEL)	£42.53	Add to
034	1134-6136-01	SEALING WASHER	£13.31	Add to
035	1134-6130-01	FUEL CONNECTION	£54.62	Add to
036	112530060/0	SPRING WASHER M6	£1.79	Add to
038	9578-0023-07	HOSE CLAMP	£4.52	Add to
039	9578-0023-02	HOSE CLAMP	£5.73	Add to
040	1134-0994-02	TUBE CLAMP	£7.10	Add to
041	337260156/0	GROMMET	£8.84	Add to
042	1134-3224-01	FUEL SHUT-OFF VALVE	£24.95	Add to
043	1134-2975-15	FUEL HOSE (L=1400)	£32.99	Add to
044	133320506/0	CABLE CLIP	£1.79	Add to
045	118375051/1	CABLE CLAMP B&S [GREEN]	£1.91	Add to
046	125510048/1	FIXING PIN	£2.32	Add to
047	1134-3203-01	GROMMET	£5.60	Add to
048	1134-6234-01	HEAT DEFLECTOR	£17.86	Add to
051	9959-0612-16	SCREW M6SF M6 x 12 TL	£1.79	Add to
052	1134-6251-01	HEAT DEFLECTOR	£39.80	Add to
054	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
055	1134-5942-01	TANK LOOP	£9.54	Add to
056	1134-5996-01	TANK LOOP	£7.10	Add to
057	1134-4481-02	WING NUT	£6.14	Add to
058	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
