PTO

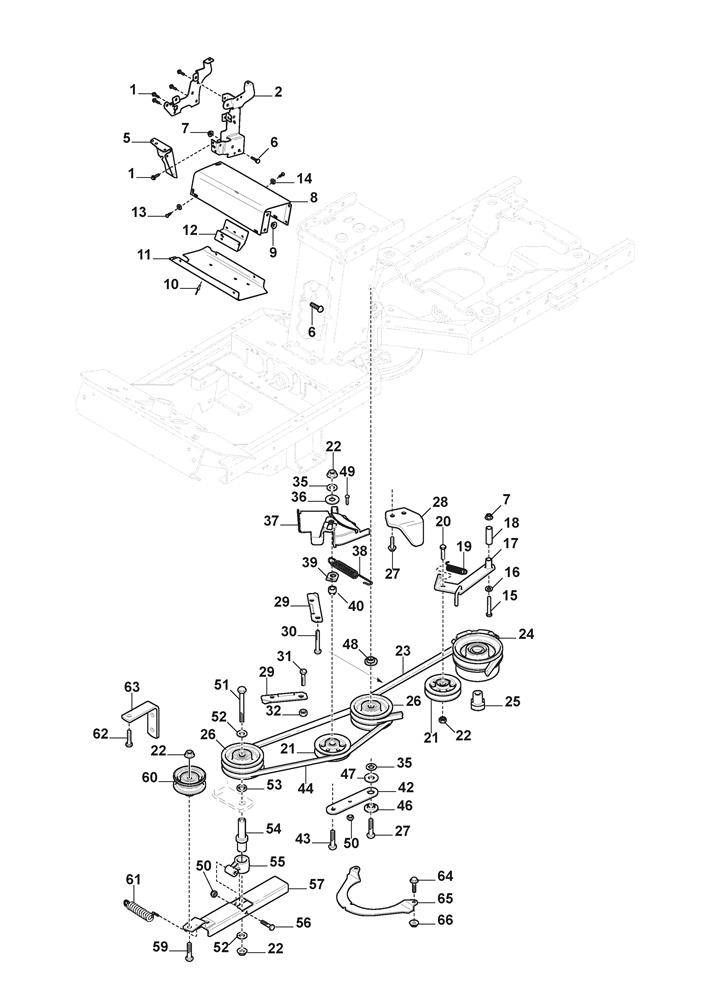

PTO assembly details for Stiga Park 540 DPX (2F6236281/S16 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	9893-0616-16	SCREW M6 x 16	£2.47	Add to
002	1134-6327-01	FRONT PLATE	£21.82	Add to
003	1134-6324-01	PANEL BRACKET	£57.52	Add to
005	1134-6328-01	SPACER	£19.93	Add to
007	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
008	1134-3990-01	ATTACHMENT-SIDE PANEL	£164.18	Add to
010	9632-0522-00	POP RIVET	£2.47	Add to
011	1134-4130-01	LOWER COVER YELLOW STIGA	£41.16	Add to
012	1134-4135-01	RELAY HOLDER	£17.04	Add to
013	9840-8013-16	SCREW 4.8 x 13	£2.06	Add to
014	9699-0099-02	WASHER 5.2 x 14 x 1.0	£2.18	Add to
015	112691800/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
016	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
017	1134-3658-02	TENSIONING ARM	£91.58	Add to
018	1134-1565-10	SPACER	£8.73	Add to
019	1134-3379-01	SPRING	£18.27	Add to
020	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
021	387605009/0	TENSION PULLEY ASSY	£50.80	Add to
022	9739-1031-22	NUT M10	£2.32	Add to
023	1134-9047-01	PTO DRIVE BELT	£47.97	Add to
024	1134-7526-01	MAGNETIC CLUTCH (NO RETURNS ON THIS ITEM )	£287.40	Add to
025	1134-5016-01	BUSH (FOR ELECTRIC PTO-CLUTCH)	£31.63	Add to
026	387605002/0	DOUBLE CENTRE PULLEY ASSEMBLY	£84.77	Add to
027	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
028	1134-4924-01	STRUT	£47.97	Add to
029	337546547/0	PLATE	£5.64	Add to
031	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
032	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
035	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
036	137038000/0	BUSH	£5.46	Add to
037	337600001/2	PULLEY PROTECTION GUARD	£9.31	Add to
038	1134-5713-04	SPRING	£7.73	Add to
039	337546545/0	SPRING HOOKING PLATE	£5.60	Add to
040	1134-1888-06	SPACER	£9.41	Add to
042	1134-1730-02	TENSIONING WHEEL ARM	£42.53	Add to
043	112692395/2	SCREW M10 x 60	£3.49	Add to
044	1134-9239-01	TRANSMISSION BELT X17 ZS31	£66.84	Add to
046	1134-0222-00	TENSION WASHER	£14.45	Add to
047	9699-0109-02	WASHER 10.5 x 40 x 2	£2.32	Add to
048	1134-5548-01	SPACER	£14.32	Add to
049	112792410/0	HEX-HEAD SCREW M6 x 40	£2.06	Add to
050	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
051	9997-1011-06	SCREW M6S M10 x 110	£11.32	Add to
052	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
053	1134-0052-00	SPACER	£8.87	Add to
054	1134-5663-01	SHAFT	£43.93	Add to
055	1134-6314-01	TENSION ARM ATTACHMENT	£9.00	Add to
056	112689515/0	HEX-HEAD SCREW M6 x 45	£2.06	Add to
057	1134-5660-01	TENSION ARM	£42.83	Add to
059	112794900/0	HEX-HEAD SCREW M10 x 50	£2.06	Add to
060	387605013/0	TENSION PULLEY ASSY	£41.44	Add to
061	1134-5824-01	SPRING	£5.87	Add to
062	9945-0816-16	SCREW M8 X 16	£2.54	Add to
