Steering

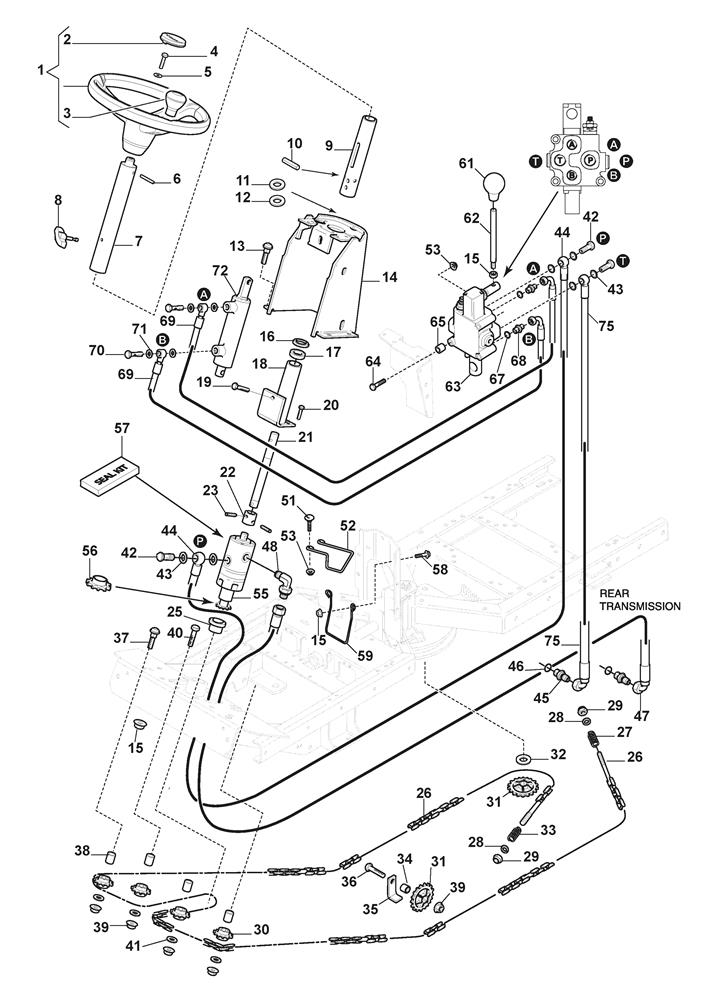

Steering assembly details for Stiga Park 540 DPX (2F6236281/S16 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	337961200/0	STEERING WHEEL [BLACK]	£287.40	Add to
002	337580550/0	STEERING WHEEL PLATE	£8.75	Add to
003	187593701/0	STEERING WHEEL KNOB	£48.11	Add to
004	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
005	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
006	112620299/0	SPIROL FLEXIBLE PIN 6 x 45	£1.91	Add to
007	387520101/2	UPPER STEERING COLUMN	£92.23	Add to
008	337394201/0	WING NUT	£13.64	Add to
009	387520119/0	LOWER STEERING COLUMN	£74.87	Add to
010	9595-0262-00	LOCATING PIN	£2.06	Add to
011	9699-0103-02	WASHER	£2.47	Add to
012	9699-0114-02	WASHER 16 x 38 x 1	£2.32	Add to
014	387785243/0	STEERING COLUMN COVER	£102.06	Add to
015	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
016	9695-0011-00	WASHER 16 x 22 x 1	£2.47	Add to
017	9549-0017-00	BALL BEARING	£12.14	Add to
019	9945-0816-16	SCREW M8 X 16	£2.54	Add to
020	9939-0612-16	SCREW M6 x 12	£2.32	Add to
021	1137-0045-01	STEERING ROD	£54.04	Add to
022	1134-4118-01	COUPLING	£22.49	Add to
023	9595-0256-01	LOCATING PIN	£2.47	Add to
025	137038014/0	STEERING COLUMN BUSH	£12.82	Add to
026	387106407/0	STEERING CHAIN ASSEMBLY	£302.40	Add to
027	1134-3817-02	COMPRESSION SPRING	£12.68	Add to
028	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
029	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
030	1134-2816-01	SPROCKET	£10.77	Add to
031	1134-3547-01	SPROCKET	£12.96	Add to
033	1134-3817-01	COMPRESSION SPRING	£12.96	Add to
034	1134-0041-01	BUSH	£9.41	Add to
035	1134-0046-00	BRACKET	£2.14	Add to
036	112794300/0	SCREW TE M10 x 30	£1.91	Add to
037	9897-1040-12	SCREW M10 x 40	£3.49	Add to
038	1134-0041-02	BUSH	£10.09	Add to
039	9739-1031-22	NUT M10	£2.32	Add to
040	112794900/0	HEX-HEAD SCREW M10 x 50	£2.06	Add to
041	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
042	1134-6323-01	BANJO BOLT 3/8"	£10.50	Add to
043	1134-4948-02	SEAL WASHER 3/8"	£2.06	Add to
044	1137-0216-01	HYDRAULIC HOSE L=2050mm	£105.21	Add to
045	1134-4282-01	HYDRAULIC NIPPLE	£46.61	Add to
046	9404-0028-01	O RING 11.89 x 1.98	£4.78	Add to
048	1134-7073-01	HYDRAULIC COUPLING 90°	£34.35	Add to
051	112815200/0	SCREW TTDQ M6X16	£2.06	Add to
052	137295200/0	CENTRAL HOSE FIXING GUIDE	£20.58	Add to
053	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
056	1139-2106-01	PINION (STEERING BOOSTER)	£148.89	Add to
057	1139-2124-01	SEAL KIT	£135.19	Add to
058	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
059	1134-6460-01	PROTECTIVE LOOP	£13.77	Add to
061	1134-2551-01	GEAR KNOB	£11.59	Add to
062	1134-6345-01	LEVER	£69.78	Add to
063	1134-7743-01	HAND OPERATED VALVE	£470.41	Add to
064	112689515/0	HEX-HEAD SCREW M6 x 45	£2.06	Add to
067	1134-4948-01	SEAL WASHER 1/4"	£2.59	Add to
068	1134-4824-01	ADAPTER	£12.00	Add to
069	1137-0193-01	HYDRAULIC HOSE 90° 3/16"	£89.43	Add to
