Body

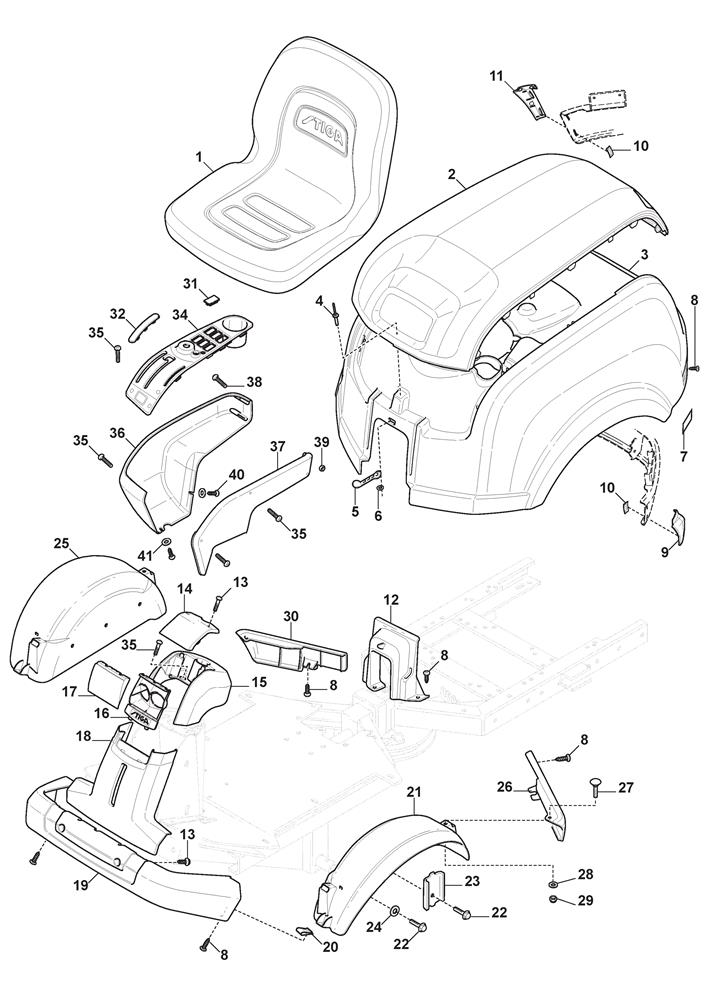

Body assembly details for Stiga Park 540 PX (2F6230611/S16)) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001137722604/0SEAT [VILLA/PC/PCH]£338.69 Add to
002337110334/0TOP ENGINE COVER [GREY]£77.95 Add to
003337076805/0ENGINE HOOD PCH YELLOW£313.70 Add to
0049632-0513-00POP RIVET 3.2 x 20£2.06 Add to
0051134-9028-01RUBBER STRAP (3 PCS)£26.46 Add to
0069699-0120-02WASHER 3.2 x 14 x 1.5£2.32 Add to
007337580302/0PLATE [YELLOW]£7.63 Add to
0089893-0616-16SCREW M6 x 16£2.47 Add to
009337110336/0LEFT BUMPER END£15.00 Add to
0101134-6310-01CLIP£2.32 Add to
011337110335/0RIGHT BUMPER END£14.32 Add to
0121134-6241-01HOOD SUPPORT£42.53 Add to
013112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
014337110330/0TOP PANEL [GREY]£6.27 Add to
0151137-0051-01UPPER FRONT PANEL£21.12 Add to
016337110329/0FRONT LAMP COVER [GREY]£6.23 Add to
0171137-0054-01LAMP GLASS£8.45 Add to
0181137-0050-01LOWER FRONT PANEL£22.91 Add to
019337502507/0FRONT BUMPER [GREY]£45.26 Add to
0201134-4176-01CLIP£5.19 Add to
021337491251/0LEFT FRONT MUDGUARD [GREY]£110.66 Add to
0229945-0816-16SCREW M8 X 16£2.54 Add to
0231137-0088-01SUPPORT PLATE£2.74 Add to
024112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
025337491250/0RIGHT FRONT MUDGUARD [GREY]£117.47 Add to
026337110331/0LEFT MOULDING [GREY]£57.15 Add to
027112815200/0SCREW TTDQ M6X16£2.06 Add to
028112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
029112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
030337110332/0RIGHT MOULDING [GREY]£54.79 Add to
0311134-4129-01COVER£6.14 Add to
0321134-4154-01GEAR LEVER COVER£8.73 Add to
0341134-6096-05DASHBOARD£117.47 Add to
0359946-0525-16SCREW M5 x 25£2.47 Add to
0361134-3979-01OUTER COVER£102.48 Add to
0371134-4360-01INNER COVER£67.05 Add to
0389950-0570-12SCREW M5 x 70£2.74 Add to
039112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
0409840-8013-16SCREW 4.8 x 13£2.06 Add to
0419699-0099-02WASHER 5.2 x 14 x 1.0£2.18 Add to
