Chassis

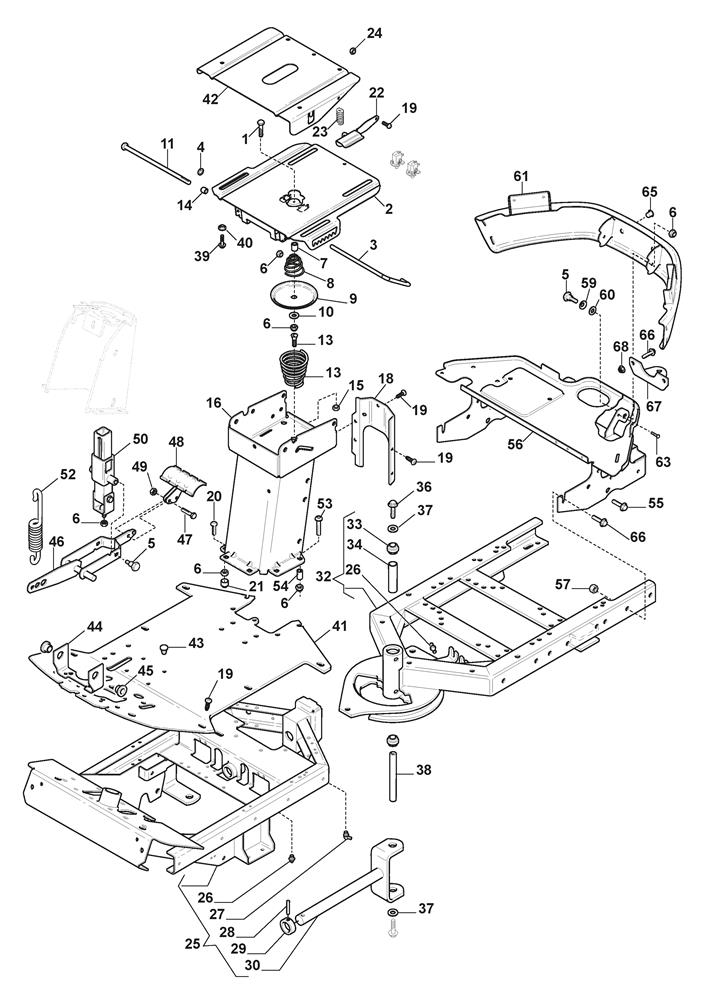

Chassis assembly details for Stiga Park 740 PWX (2F6230621/S16) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
002	1134-6068-01	LOWER SLIDE PLATE	£114.96	Add to
003	1134-5179-01	CATCH ROD	£13.77	Add to
004	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
005	1134-0240-00	SCREW	£9.14	Add to
006	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
007	1134-1565-06	SPACER	£11.32	Add to
008	1134-5302-01	SPRING	£8.87	Add to
009	1134-5299-01	PUSH PLATE	£17.86	Add to
010	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
012	9924-1235-19	SCREW MF6S M12 x 35	£4.23	Add to
014	1134-5626-03	SPACER	£2.87	Add to
015	112156603/0	SELF-LOCKING NUT M12	£2.06	Add to
016	1134-5698-01	SEAT BRACKET	£162.60	Add to
018	1134-6461-01	REAR PLATE	£34.35	Add to
019	9893-0616-16	SCREW M6 x 16	£2.47	Add to
021	118203854/0	NUT CAP M8 [BLACK]	£2.06	Add to
022	1134-6073-01	HANDLE ASSEMBLY	£41.16	Add to
023	1134-3262-01	SPRING	£8.73	Add to
024	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
025	387800039/0	FRONT FRAME ASSEMBLY [4WD]	£933.72	Add to
026	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
027	9501-0504-01	GREASE NIPPLE M6	£3.69	Add to
028	9595-0262-00	LOCATING PIN	£2.06	Add to
029	1134-0031-00	PIVOT SHAFT STOP	£24.95	Add to
033	9547-0001-00	BEARING	£24.95	Add to
034	1134-5705-01	SPACER	£19.36	Add to
036	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
037	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
038	1134-5988-01	CENTRE SHAFT	£22.76	Add to
040	1134-6078-01	FLANGE WASHER	£5.87	Add to
041	1134-6586-01	FLOOR PLATE	£170.61	Add to
042	1134-6090-01	UPPER SLIDE PLATE	£99.76	Add to
043	9403-0048-70	COVER PLUG	£9.68	Add to
044	1134-4117-01	BRACKET	£32.99	Add to
045	1134-2684-01	BUSH	£7.10	Add to
046	387256055/0	LIFT LEVER ASSEMBLY	£94.31	Add to
048	1134-4938-01	LIFT PEDAL	£24.95	Add to
049	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
050	1134-4945-01	LIFT CATCH ASSEMBLY	£124.29	Add to
052	4231-0013-00	SPRING	£8.87	Add to
053	9897-0880-12	SCREW MVBF 8 x 80	£2.32	Add to
054	1134-1565-08	SPACER	£9.94	Add to
055	9945-0816-16	SCREW M8 X 16	£2.54	Add to
056	1134-5944-01	TANK SHELF ASSEMBLY	£279.64	Add to
057	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
059	9665-0002-00	BOWL WASHER	£2.61	Add to
060	1134-4242-01	SPACER WASHER	£4.78	Add to
061	387457003/0	REAR BUMPER	£231.93	Add to
063	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
065	1134-4100-01	PLUG	£4.78	Add to
066	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
