Hydraulic Lift

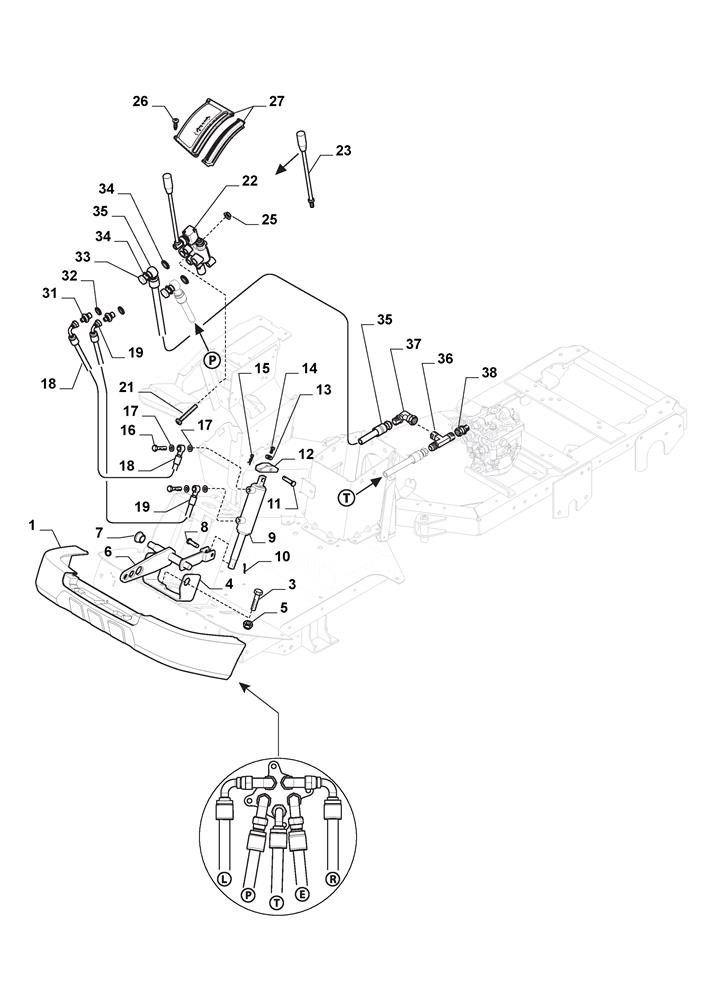

Hydraulic Lift assembly details for Stiga Park Pro 540 IX (13-6471-11) 2018 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	337502502/0	FRONT BUMPER [GREY]	£42.53	Add to
003	112794300/0	SCREW TE M10 x 30	£1.91	Add to
004	337774007/0	FULCRUM BRACKET	£34.97	Add to
005	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
006	387256051/0	LIFT LEVER ASSEMBLY	£124.29	Add to
007	1134-2684-01	BUSH	£7.10	Add to
008	1134-4817-01	PIN	£12.96	Add to
009	1137-0071-01	HYDRAULIC CYLINDER	£368.20	Add to
010	9599-0054-02	SPLIT PIN	£2.32	Add to
011	1134-4816-01	PIN	£13.64	Add to
012	1134-4815-01	CYLINDER BRACKET	£58.87	Add to
013	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
014	9598-0002-02	SPRING PIN 2.5mm L=47mm	£2.06	Add to
014	9893-0616-16	SCREW M6 x 16	£2.47	Add to
016	1134-4826-01	BANJO BOLT	£15.81	Add to
017	1134-4947-01	COPPER WASHER 10 x 14 x 1.5	£5.73	Add to
018	1137-0193-01	HYDRAULIC HOSE 90° 3/16"	£89.43	Add to
019	1137-0193-01	HYDRAULIC HOSE 90° 3/16"	£89.43	Add to
021	112727799/0	SCREW TCB TORX M6 x 35	£2.18	Add to
022	187145001/0	HAND OPERATED VALVE	£490.85	Add to
023	187318253/0	OPERATING LEVER	£51.32	Add to
025	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
026	112728706/0	SELF-TAPPING SCREW K40 x 16	£2.06	Add to
027	387559003/0	ONE WAY VALVE COVER	£41.16	Add to
031	1134-4824-01	ADAPTER	£12.00	Add to
032	1134-4948-01	SEAL WASHER 1/4"	£2.59	Add to
033	1134-6323-01	BANJO BOLT 3/8"	£10.50	Add to
034	1134-4948-02	SEAL WASHER 3/8"	£2.06	Add to
035	387869509/1	HYDRAULIC HOSE "T"	£89.56	Add to
036	112375000/0	"T" TUBE CONNECTION	£15.41	Add to
037	112000401/0	90° TUBE CONNECTOR	£12.96	Add to
