Lifting Device

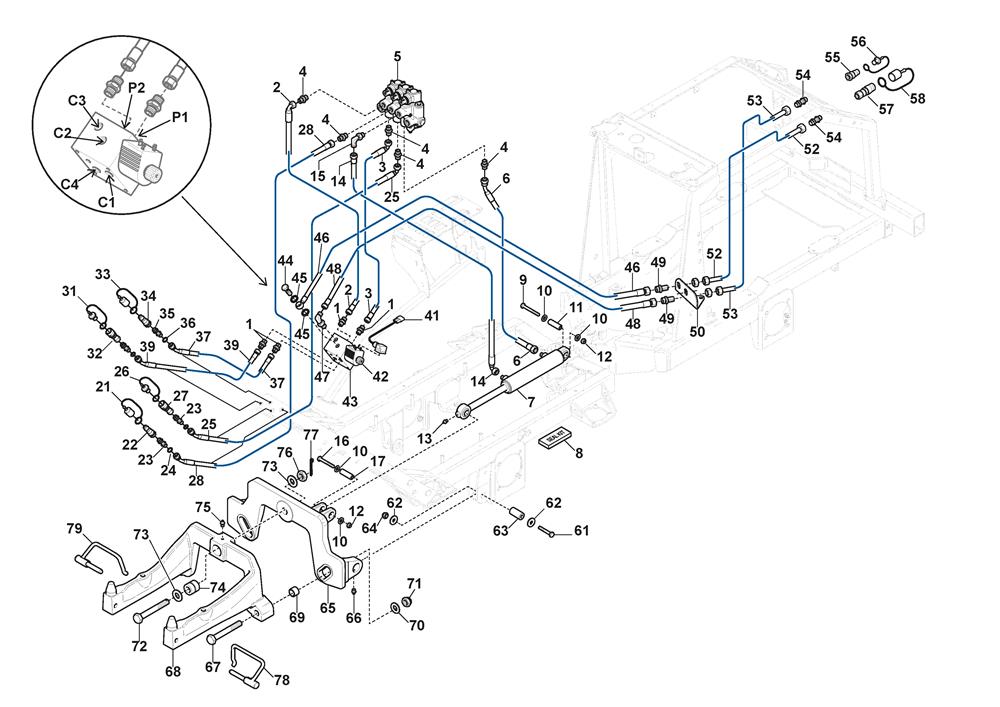

Lifting Device assembly details for Stiga Titan 740 DCR (13-7462-11) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-7165-01HYDRAULIC CONNECTOR£8.60 Add to
0041134-7165-01HYDRAULIC CONNECTOR£8.60 Add to
0051137-0641-01HAND OPERATED VALVE£1,369.79 Add to
0071134-6801-01LIFT CYLINDER£620.31 Add to
0081139-2083-01SEAL KIT£129.74 Add to
009112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
010112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0111134-7557-01SHAFT£13.17 Add to
012112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
016112793905/0HEX-HEAD SCREW M8 x 70£2.32 Add to
0171134-7557-02SHAFT£16.32 Add to
0211134-7173-01PLASTIC PLUG 1/4"£13.95 Add to
0221134-7172-01QUICK CONNECTOR-FEMALE 1/4"£44.09 Add to
0231134-7296-01HYDRAULIC COUPLING 1/4"£19.22 Add to
0241134-4948-01SEAL WASHER 1/4"£2.59 Add to
0261134-7175-01PLASTIC CAP£8.87 Add to
0271134-6042-01QUICK COUPLING-MALE 1/4"£32.08 Add to
0311134-7173-01PLASTIC PLUG 1/4"£13.95 Add to
0321134-7172-01QUICK CONNECTOR-FEMALE 1/4"£44.09 Add to
0331134-7175-01PLASTIC CAP£8.87 Add to
0341134-6042-01QUICK COUPLING-MALE 1/4"£32.08 Add to
0351134-7296-01HYDRAULIC COUPLING 1/4"£19.22 Add to
0361134-4948-01SEAL WASHER 1/4"£2.59 Add to
0411137-0903-01CABLE HARNESS PTO£100.86 Add to
0421139-2097-01MAGNET VALVE£388.65 Add to
0431135-2538-01SELECTOR VALVE£1,015.49 Add to
0451134-4948-01SEAL WASHER 1/4"£2.59 Add to
0551134-6042-01QUICK COUPLING-MALE 1/4"£32.08 Add to
0561134-7173-01PLASTIC PLUG 1/4"£13.95 Add to
0571134-7172-01QUICK CONNECTOR-FEMALE 1/4"£44.09 Add to
0581134-7175-01PLASTIC CAP£8.87 Add to
0619997-1070-12SCREW M6S (M10 X 70)£3.81 Add to
0621134-5406-01WASHER M10 10.5 x 35 x 5£4.23 Add to
0631134-6991-01PIN-ACCESSORY LIFT£13.23 Add to
064112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
0651135-4092-01ATTACHMENT REAR PLATE£409.72 Add to
066112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
067082-202-01SCREW M6S M16 x 100 FZB 8.8£4.52 Add to
0681135-3003-01IMPLEMENT ATTACHMENT£905.50 Add to
0691135-3054-01BUSH£41.16 Add to
071112295801/0HEXAGON NUT M16£2.06 Add to
0721135-3306-01SCREW£23.54 Add to
0739690-0002-02WASHER£11.18 Add to
0741135-3055-01BUSH£59.99 Add to
0769747-2031-02NUT M20£3.15 Add to
0779599-0101-02COTTER PIN 5 x 45£1.79 Add to
0781134-7842-01LOCK PIN L/H£68.42 Add to
0791134-7842-02LOCK PIN R/H£68.42 Add to
