Wheels Engines

Wheels Engines assembly details for Stiga Titan 740 DCR (13-7462-11) 2018 model

Parts list

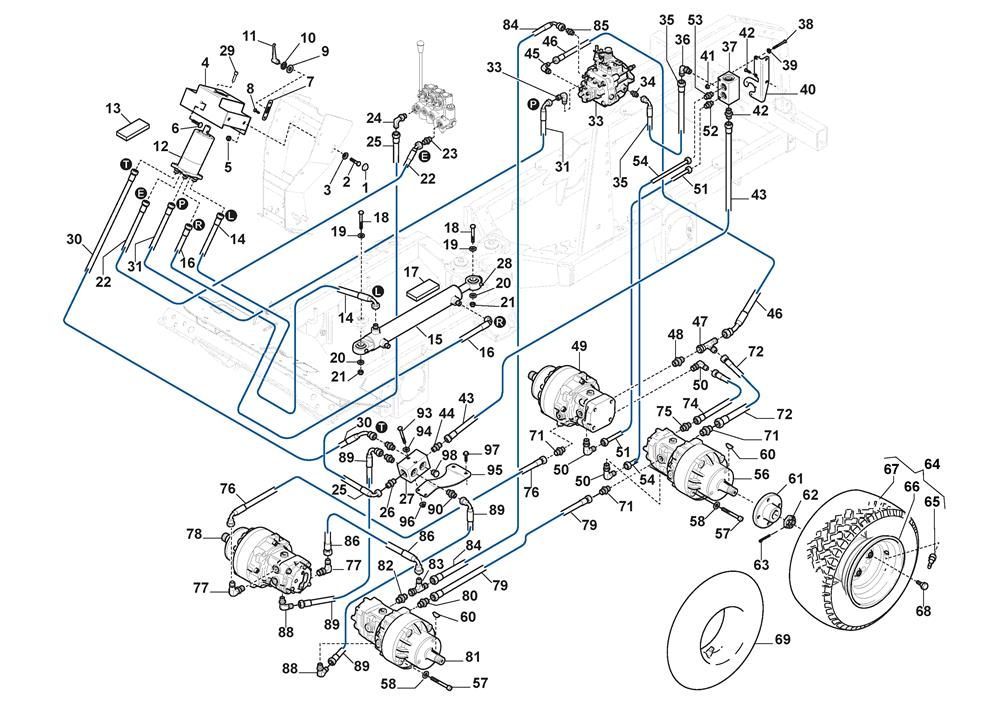

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002112800815/0SCREW TE FL M8 x 16£2.06 Add to
0041134-6995-01BRACKET-STEERING SERVO£124.29 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0089893-0616-16SCREW M6 x 16£2.47 Add to
009112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
0111134-7123-01LOCK LEVER-ADJUSTABLE£35.71 Add to
0121134-7214-01STEERING BOOSTER£1,090.44 Add to
0131139-2081-01SEAL KIT£197.87 Add to
0151135-2808-01STEERING CYLINDER£579.42 Add to
0171139-2083-01SEAL KIT£129.74 Add to
018112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
019112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
021112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
0241134-7073-01HYDRAULIC COUPLING 90°£34.35 Add to
028112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
029112800815/0SCREW TE FL M8 x 16£2.06 Add to
0311137-0195-03HYDRAULIC HOSE£116.11 Add to
0331137-1128-01HYDRAULIC PUMP KPS-23 ALPH£6,800.10 Add to
0341134-5809-01HYDRAULIC COUPLING£17.86 Add to
039112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
0401137-0555-01BRACKET-HYDRAULIC BLOCK£45.26 Add to
041112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0429893-0616-16SCREW M6 x 16£2.47 Add to
0491137-0961-01WHEEL MOTOR KWM 13S-186D£3,931.64 Add to
0501137-0755-01HYDRAULIC CONNECTOR£43.03 Add to
0521134-7073-01HYDRAULIC COUPLING 90°£34.35 Add to
0561137-0960-01WHEEL MOTOR WITH ORIFICE£2,466.75 Add to
0579939-1213-02SCREW£3.69 Add to
058122671652/0WASHER 12.3 x 20 x 2£2.74 Add to
0601134-6996-01WOODRUFF KEY£7.78 Add to
0611134-6971-01WHEEL HUB£124.29 Add to
0629781-2431-32HEX.CASTLE NUT M24 X 2£9.54 Add to
0639599-0101-02COTTER PIN 5 x 45£1.79 Add to
0641134-7308-02WHEEL ASSEMBLY 20"£346.76 Add to
0659545-0500-00VALVE ASSY.£5.73 Add to
0661134-7309-01WHEEL RIM 10"£259.19 Add to
0679545-0127-01TYRE 20 x 10-10£170.61 Add to
0681134-7041-01WHEEL SCREW£4.91 Add to
0699545-0211-01INNER TUBE (FOR 20"" WHEELS)£37.08 Add to
0771137-0755-02HYDRAULIC CONNECTOR£43.03 Add to
0781137-0961-01WHEEL MOTOR KWM 13S-186D£3,931.64 Add to
0811137-0960-01WHEEL MOTOR WITH ORIFICE£2,466.75 Add to
0881137-0755-01HYDRAULIC CONNECTOR£43.03 Add to
094112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
0951137-0597-01HYDRAULIC BLOCK BRACKET£45.26 Add to
096112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
097112800815/0SCREW TE FL M8 x 16£2.06 Add to
