Body

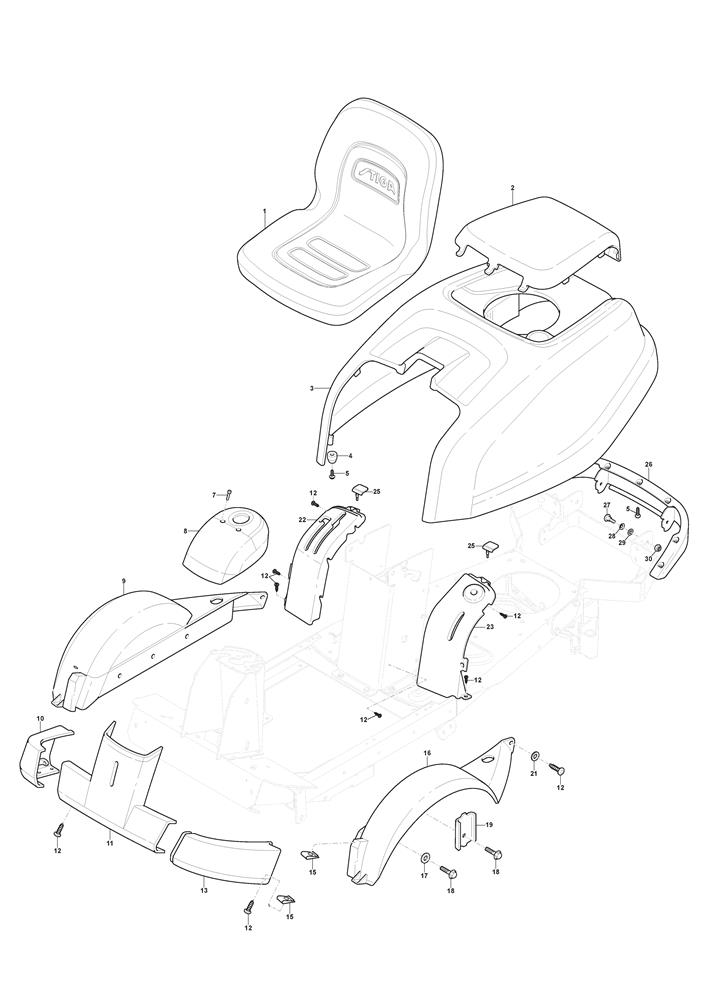

Body assembly details for Stiga Villa 13 (2F2700321/S17) 2018 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	137722604/0	SEAT [VILLA/PC/PCH]	£338.69	Add to
002	337110333/0	TOP ENGINE COVER [GREY]	£60.24	Add to
003	1134-5283-02	ENGINE HOOD [YELLOW]	£286.45	Add to
004	1134-4790-02	HOOD GUIDE	£3.55	Add to
005	9838-9530-12	SCREW K50 x 30	£2.47	Add to
007	9946-0525-16	SCREW M5 x 25	£2.47	Add to
008	1134-5304-01	FRONT COVER [YELLOW]	£67.05	Add to
009	337491252/0	RIGHT FRONT MUDGUARD [GREY]	£113.39	Add to
010	337502508/0	RIGHT FRONT BUMPER [GREY]	£50.94	Add to
011	1134-5305-01	FRONT BUMPER [YELLOW]	£84.77	Add to
012	9893-0616-16	SCREW M6 x 16	£2.47	Add to
013	337502509/0	LEFT FRONT BUMPER [GREY]	£53.42	Add to
015	1134-4176-01	CLIP	£5.19	Add to
016	337491253/0	LEFT FRONT MUDGUARD [GREY]	£106.94	Add to
017	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
018	9945-0816-16	SCREW M8 X 16	£2.54	Add to
019	1137-0088-01	SUPPORT PLATE	£2.74	Add to
021	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
022	337120153/0	RIGHT DASHBOARD [GREY]	£68.42	Add to
023	337120154/0	LEFT DASHBOARD [GREY]	£63.45	Add to
025	125260000/0	ANTI-VIBRATION RUBBER GROMMET	£3.41	Add to
026	387457005/0	REAR BUMPER [GREY]	£182.35	Add to
027	1134-0240-00	SCREW	£9.14	Add to
028	9665-0002-00	BOWL WASHER	£2.61	Add to
029	1134-4242-01	SPACER WASHER	£4.78	Add to
030	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
