Engine

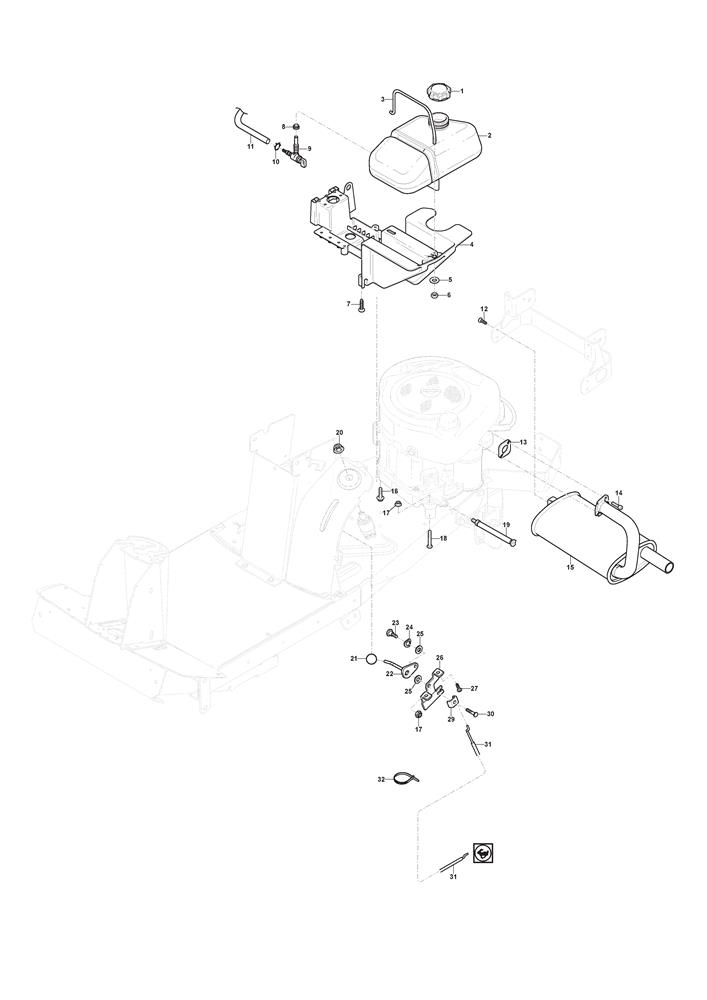

Engine assembly details for Stiga Villa 13 (2F2700321/S17) 2018 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	125795001/1	FUEL TANK CAP	£8.32	Add to
002	1134-6626-01	FUEL TANK	£45.26	Add to
003	1134-4808-01	TANK CLAMP	£14.32	Add to
004	1134-4807-02	BATTERY SUPPORT PLATE	£91.58	Add to
005	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
006	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
007	9838-8822-19	SCREW K60 x 22	£2.06	Add to
008	337260156/0	GROMMET	£8.84	Add to
009	1134-3224-01	FUEL SHUT-OFF VALVE	£24.95	Add to
010	9578-0023-02	HOSE CLAMP	£5.73	Add to
011	1134-2975-15	FUEL HOSE (L=1400)	£32.99	Add to
012	9893-0616-16	SCREW M6 x 16	£2.47	Add to
013	1134-0433-00	MUFFLER GASKET	£5.87	Add to
014	1134-4930-01	SCREW	£2.32	Add to
015	387753300/0	MUFFLER	£252.38	Add to
016	9955-3725-16	SCREW 3/8" x 25	£2.87	Add to
017	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
018	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
019	1134-5827-05	OIL DRAIN ASSEMBLY	£35.71	Add to
020	1134-4749-01	NUT	£5.05	Add to
021	1134-4078-01	KNOB	£5.87	Add to
022	1134-4077-02	THROTTLE CONTROL LEVER	£27.27	Add to
023	1134-0240-00	SCREW	£9.14	Add to
024	9694-0001-00	SPACER WASHER	£2.06	Add to
025	1134-4242-01	SPACER WASHER	£4.78	Add to
026	1134-5357-01	BRACKET	£28.90	Add to
027	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
029	9500-9991-00	CABLE CLAMP	£7.78	Add to
030	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
031	1134-1597-13	THROTTLE CABLE	£18.27	Add to
032	133320027/0	FASTPOINT BAND ART. 0387.AA01 L=290	£2.06	Add to
