Transmission

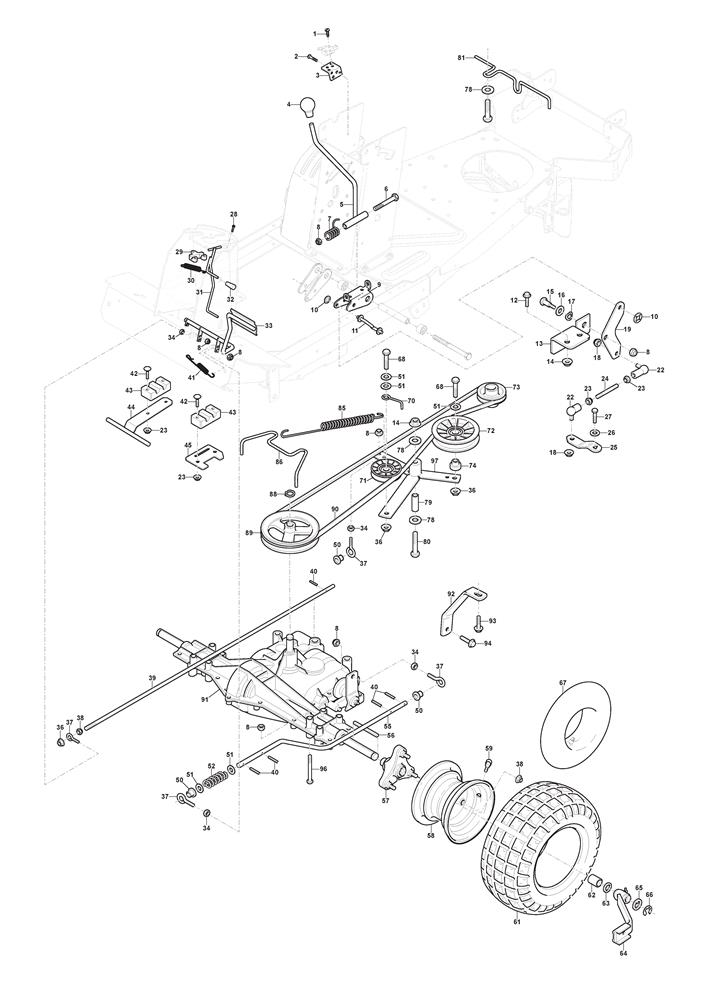

Transmission assembly details for Stiga Villa 13 (2F2700321/S17) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	9840-7716-16	SCREW	£2.32	Add to
002	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
003	1134-5358-01	SWITCH BRACKET	£31.10	Add to
004	1134-2551-01	GEAR KNOB	£11.59	Add to
006	112692080/0	HEX-HEAD SCREW M8 x 90	£2.06	Add to
007	1134-5535-01	SPRING	£8.73	Add to
008	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
009	1134-5271-01	CONTROL BRACKET	£35.71	Add to
010	112604896/0	STARLOCK WASHER D=6	£2.06	Add to
011	1134-5268-01	SHIFTER ROD	£22.22	Add to
012	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
013	1134-4714-01	ANGLE BRACKET	£24.95	Add to
014	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
015	1134-0240-00	SCREW	£9.14	Add to
016	122671652/0	WASHER 12.3 x 20 x 2	£2.74	Add to
017	9694-0001-00	SPACER WASHER	£2.06	Add to
018	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
019	1134-4715-01	ANGLE BRACKET	£22.76	Add to
022	9570-0004-00	ELBOW LINK	£26.18	Add to
023	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
024	1134-4717-03	THREADED ROD	£3.15	Add to
025	1134-4722-01	CLUTCH LEVER	£17.86	Add to
026	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
027	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
028	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
029	1134-4002-01	BRAKE ROD ATTACHMENT	£12.27	Add to
030	1131-1497-01	BRAKE SPRING	£10.50	Add to
031	1134-5353-01	BRAKE ROD	£29.61	Add to
032	1134-2786-01	PLASTIC KNOB	£6.42	Add to
033	1134-4802-01	PEDAL	£56.15	Add to
034	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
036	9739-1031-22	NUT M10	£2.32	Add to
037	1134-2138-01	EYE BOLT	£8.87	Add to
038	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
039	1134-4795-01	CLUTCH ROD	£34.35	Add to
040	9595-0208-00	LOCATING PIN	£2.74	Add to
041	4231-0013-00	SPRING	£8.87	Add to
042	9897-0640-12	CARRIAGE BOLT M6 x 40	£2.32	Add to
043	1134-4624-01	BEARING	£9.41	Add to
044	387773501/0	FULCRUM BRACKET	£23.58	Add to
045	1134-4793-01	BRACKET	£17.18	Add to
050	1134-4779-01	PLASTIC BUSH	£2.18	Add to
051	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
052	1134-4617-01	SPRING	£4.52	Add to
055	1134-4777-01	BRAKE ROD	£35.71	Add to
056	1134-2471-03	KEY	£8.87	Add to
057	1134-4844-02	WHEEL HUB ASSEMBLY	£57.52	Add to
058	187000453/0	FRONT WHEEL RIM 4.375" x 8"	£69.78	Add to
059	9545-0500-00	VALVE ASSY.	£5.73	Add to
061	9545-0126-01	TYRE 16 x 6.00-8	£72.50	Add to
062	1134-4845-02	HUB SLEEVE	£9.00	Add to
063	1134-0341-01	WASHER	£7.10	Add to
064	1134-6274-01	ATTACHMENT ARM	£39.80	Add to
065	1134-4981-01	WASHER	£3.41	Add to
066	9653-0001-04	CIRCLIP 3/4"	£2.61	Add to
067	9545-0203-00	INNER TUBE 16 x 6.50	£26.18	Add to
068	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
070	1134-1795-01	BELT STIRRUP	£11.87	Add to
071	387605008/0	TENSION PULLEY [GREY]	£35.71	Add to
072	387605016/0	TENSION PULLEY	£46.61	Add to
073	1137-0205-01	ENGINE PULLEY	£32.99	Add to
074	1134-4614-01	SPACER	£9.00	Add to
078	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
079	1134-1565-08	SPACER	£9.94	Add to
080	112793905/0	HEX-HEAD SCREW M8 x 70	£2.32	Add to
081	1134-6637-01	BELT GUIDE	£13.49	Add to
085	1134-5214-01	SPRING	£13.49	Add to
086	1134-4707-01	BELT GUIDE	£19.36	Add to
088	112608950/0	CIRCLIP D=0,584TO D=0,569	£2.06	Add to
089	1137-0006-01	PULLEY	£38.44	Add to
090	1134-9164-01	TRANSMISSION BELT	£53.84	Add to
091	1134-4847-01	TRANSAXLE PEERLESS MST205	£627.12	Add to
092	1134-4687-01	STRUT	£17.04	Add to
093	9945-0816-16	SCREW M8 X 16	£2.54	Add to
094	112735595/0	SCREW	£4.01	Add to
096	9960-0860-12	SCREW M8 x 60	£2.32	Add to
097	1134-4519-01	TENSION ARM	£43.46	Add to
