Steering

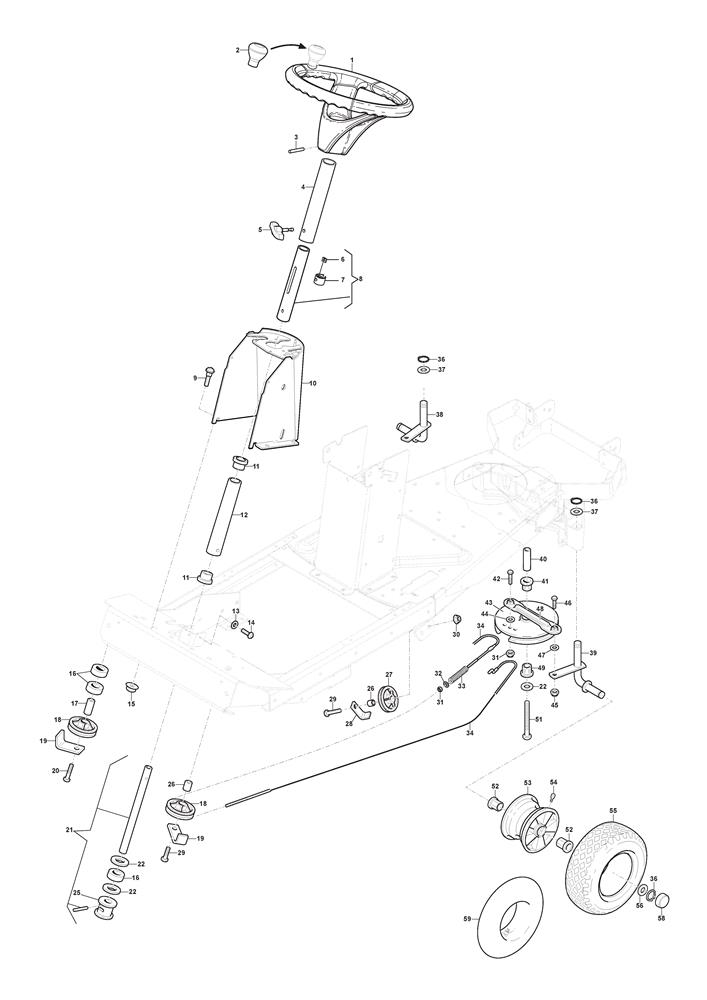

Steering assembly details for Stiga Villa 16 HST (2F2720511/S17) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-5494-01STEERING WHEEL£64.32 Add to
0021134-3769-01STEERING WHEEL BUTTON KIT£37.08 Add to
0039595-0277-01LOCATING PIN£2.06 Add to
004387520115/0UPPER STEERING COLUMN£35.71 Add to
005337394201/0WING NUT£13.64 Add to
0069710-0631-12SQUARE NUT£3.55 Add to
0071134-5177-01SLIDE COLLAR£13.64 Add to
008387520123/0INNER STEERING TUBE ASSEMBLY£67.05 Add to
0111134-1901-01PLASTIC BUSH£12.27 Add to
012387520125/0LOWER STEERING COLUMN£39.80 Add to
013112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
0149893-0616-16SCREW M6 x 16£2.47 Add to
015112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
0161134-3047-01SPACER£8.04 Add to
0171134-0041-05BUSH£11.46 Add to
0181134-9025-01STEERING PULLEY [2 PCS]£20.09 Add to
0191134-0046-00BRACKET£2.14 Add to
020112692395/2SCREW M10 x 60£3.49 Add to
022112521390/0WASHER M16 17 x 30 x 3£1.91 Add to
025337601201/0STEERING PULLEY£52.13 Add to
0261134-0041-01BUSH£9.41 Add to
0299997-1040-16SCREW M6S 10 x 40£7.23 Add to
0309739-1031-22NUT M10£2.32 Add to
031112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
032112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0331134-1310-01SPRING£19.22 Add to
034187000209/0STEERING CABLE [VILLA]£47.97 Add to
036112609260/0CIRCLIP D=20£2.02 Add to
0379699-0088-02WASHER£2.47 Add to
0381134-5009-01RIGHT STUB AXLE£62.97 Add to
0391134-5009-02LEFT STUB AXLE£62.97 Add to
0401134-5575-01SPACER SLEEVE£7.92 Add to
0411134-9024-01PLASTIC BUSH (4 PCS)£19.66 Add to
042119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
043387605001/0STEERING PULLEY£77.95 Add to
046112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
0479699-0090-02WASHER 8.4 x 18 x 1.5£2.32 Add to
0481134-3247-05TIE ROD£31.63 Add to
051112694100/0HEX-HEAD SCREW M16 x 80£3.69 Add to
052137038009/0WHEEL BUSH£6.09 Add to
053387680305/0REAR WHEEL ASSY 13" (STARCO/KENDA)£109.61 Add to
0549545-0500-00VALVE ASSY.£5.73 Add to
0559545-0117-00TYRE 13 X 5.00-6£53.47 Add to
0561134-0341-01WASHER£7.10 Add to
0581134-4344-01HUB CAP [BLACK]£9.82 Add to
0599545-0204-00INNER TUBE 13 X 5.00-6/2£22.08 Add to
