Belt Covers and Blades

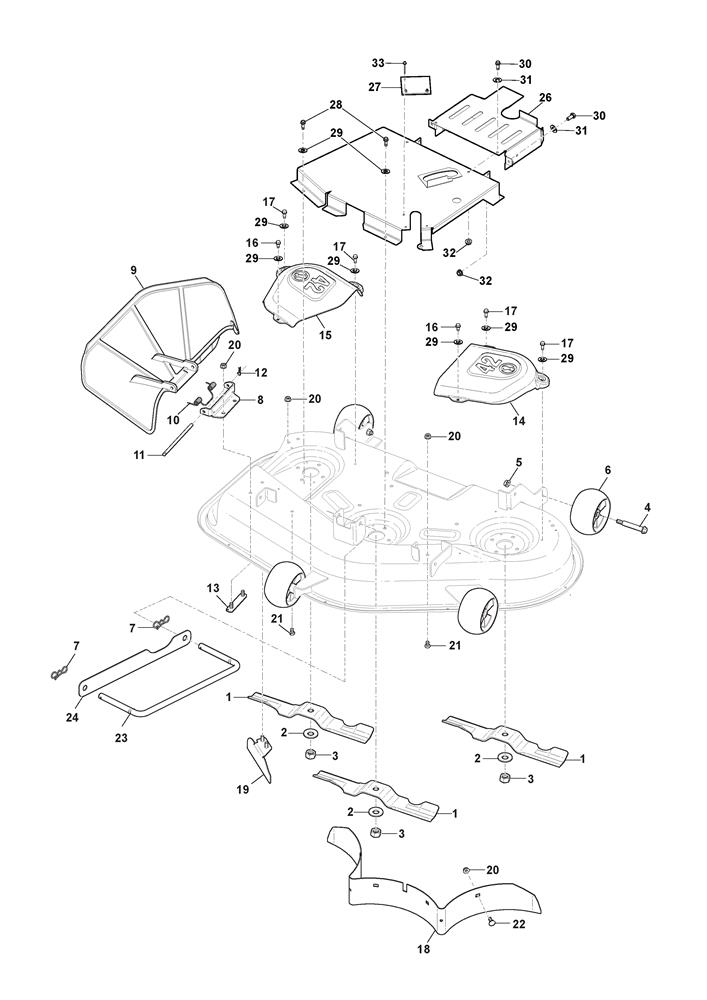

Belt Covers and Blades assembly details for Stiga ZT 3107 T (2F1020611/S17) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-9210-02MULCHING BLADE 377 ZTR [3 PCS]£99.76 Add to
002118830309/0WASHER£11.32 Add to
003118830310/0NUT£7.36 Add to
004118830665/0BOLT£15.95 Add to
005118830934/0FLANGED NUT LK.375-16 GRF ZCCN/A POA
006118830061/0ANTI-SCALP WHEEL 5 x 3£21.40 Add to
007118830162/0R CLIP .091 x 1.875£4.64 Add to
008118830074/0BRACKET£21.40 Add to
009118830132/0DISCHARGE CHUTE [GREY]£59.05 Add to
010118830194/0TORSION SPRING£53.42 Add to
011118830023/0PIN 5/16 x 5.80£17.72 Add to
012118830165/0HAIR PIN 0.08 x .18 x 1.18£7.78 Add to
013118830160/0CARRIAGE BOLT 0.31-18 x 0.7£2.71 Add to
014118830130/0L/H BELT COVER 42"£45.35 Add to
015118830131/0R/H BELT COVER 42"£45.35 Add to
016118830326/0SELF-TAPPING SCREW£2.71 Add to
017118830669/0SCREW£2.71 Add to
018118830066/0REAR BAFFLE 42"£28.59 Add to
019118830106/0DISCHARGE BAFFLE 42"£9.85 Add to
020118830161/0LOCK NUT .31-18£2.71 Add to
021118830160/0CARRIAGE BOLT 0.31-18 x 0.7£2.71 Add to
022118830596/0BOLT£2.71 Add to
023118830098/0HANDLE£40.78 Add to
024118830111/0COOLER PLATE£24.64 Add to
025118830136/0BELT GUARD 42"£77.95 Add to
026118830137/0REAR DECK BELT COVER£19.22 Add to
027118830146/0GUARD£12.96 Add to
028118830668/0SCREW£2.71 Add to
029118830662/0NUT£5.19 Add to
030118830565/0BOLT£2.71 Add to
031118830616/0WASHER£5.05 Add to
032118830654/0NUT£5.05 Add to
033118830660/0RIVET£2.71 Add to
