Mower Deck Lift

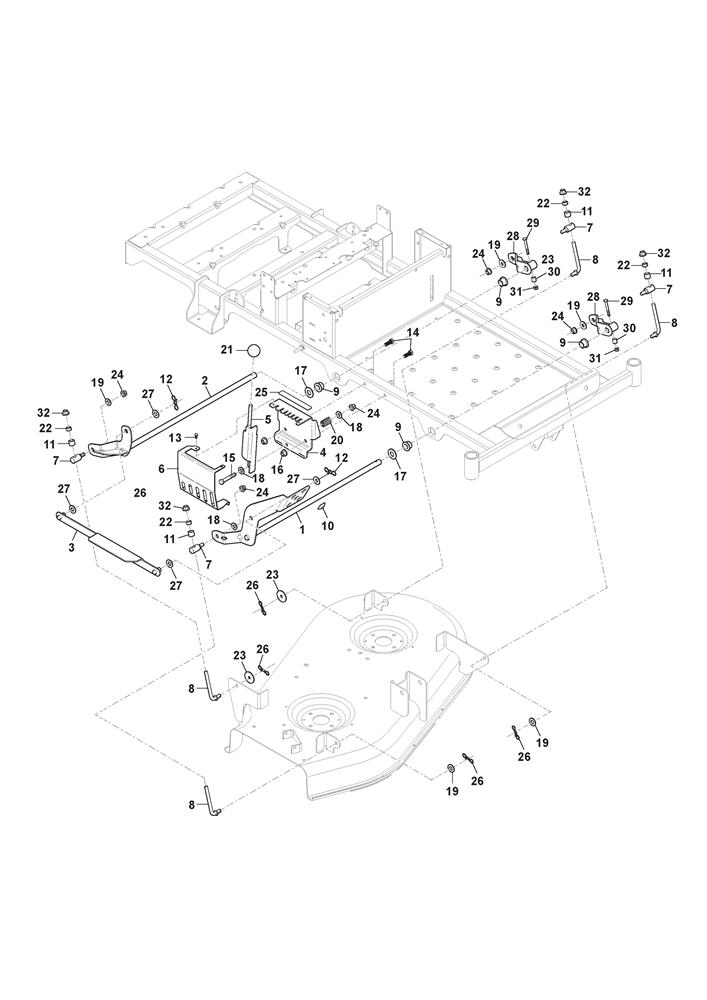

Mower Deck Lift assembly details for Stiga ZT 3107 T (2F1020611/S17) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118830115/0FOOT PEDAL [GREY]£103.85 Add to
002118830114/0REAR DECK LIFT AXLE£87.50 Add to
003118830097/0CONNECTING ROD£28.59 Add to
004118830101/0HEIGHT ADJUSTMENT PLATE£28.59 Add to
005118830105/0HEIGHT OF CUT LEVER£40.78 Add to
006118830117/0GUARD£12.00 Add to
007118830100/0DECK ADJUSTER PIN£18.68 Add to
008118830099/0TIE ROD£21.95 Add to
009118830155/0BUSH .629 x .879 x .469 x 1.25£26.18 Add to
010118830180/0STOP PLUG£7.23 Add to
011118830199/0BUSH 0.391 x 0.688 x 0.52£10.09 Add to
012118830162/0R CLIP .091 x 1.875£4.64 Add to
013118830676/0SCREW£2.71 Add to
014118830566/0BOLT£2.87 Add to
015118830578/0BOLT£2.87 Add to
016118830656/0NUT£2.71 Add to
017118830624/0WASHER£2.71 Add to
018118830611/0WASHER£2.71 Add to
019118830613/0WASHER£6.69 Add to
020118830198/0COMPRESSION SPRING£16.36 Add to
021118830181/0BALL KNOB [BLACK]£12.00 Add to
022118830643/0NUT£6.87 Add to
023118830626/0WASHER£4.52 Add to
024118830934/0FLANGED NUT LK.375-16 GRF ZCCN/A POA
025118830185/0HEIGHT OF CUT DECAL£8.04 Add to
026118830163/0R CLIP£2.61 Add to
027118830625/0WASHER£3.83 Add to
028118830116/0DECK LIFT ARM£42.53 Add to
028118830583/0BOLT£4.37 Add to
029118830152/0BUSH .265 x .500 x .500£5.05 Add to
030118830632/0NUT£4.23 Add to
031118830934/0FLANGED NUT LK.375-16 GRF ZCCN/A POA
