Parking Brake, Transmission, Rear Wheels

Parking Brake, Transmission, Rear Wheels assembly details for Stiga ZT 3107 T (2F1020611/S17) 2018 model

Parts list

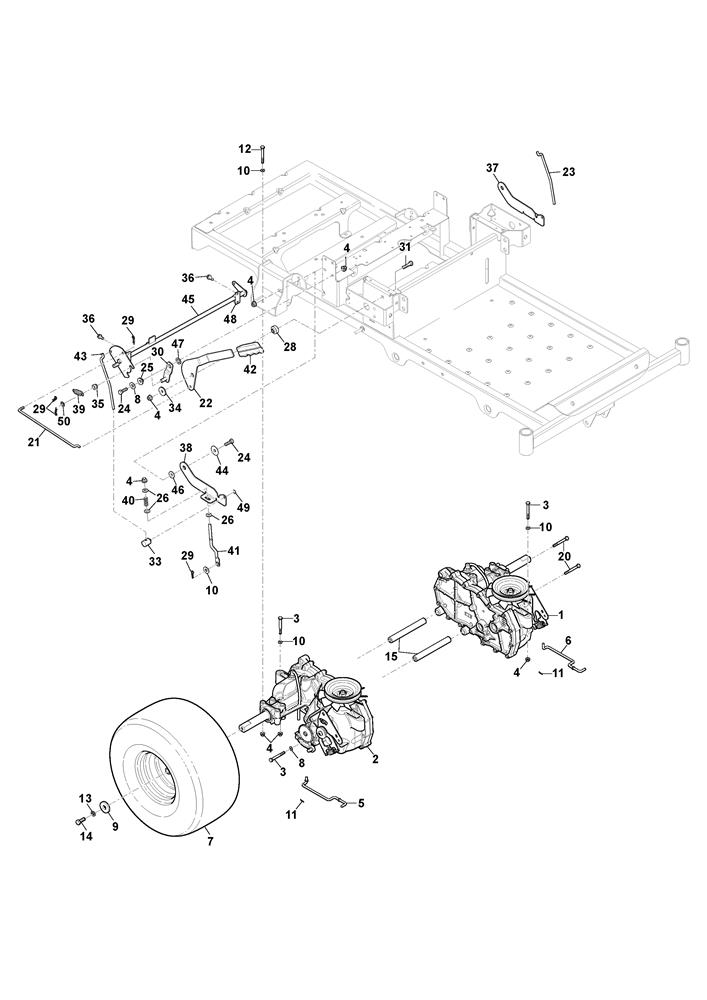

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118830102/0L/H TRANSAXLE EZT D-SHAFT LONG£1,251.75 Add to
002118830103/0R/H TRANSAXLE EZT D-SHAFT LONG£1,251.75 Add to
003118830580/0BOLT£4.23 Add to
004118830679/0NUT£5.21 Add to
005118830046/0DUMP VALVE R/H£23.31 Add to
006118830047/0DUMP VALVE L/H£24.95 Add to
007118830169/0WHEEL ASSEMBLY 18 x 8.5-8 [GREY]£259.19 Add to
008118830628/0WASHER£7.10 Add to
009118830606/0WASHER£7.10 Add to
010118830611/0WASHER£2.71 Add to
011118830164/0HAIR PIN INTERNAL .06 x .18 x .77£2.87 Add to
012118830574/0BOLT£4.52 Add to
013118830603/0WASHER£2.32 Add to
014118830549/0BOLT£5.05 Add to
015118830045/0SHAFT£53.42 Add to
016118830140/0R/H GUARD£10.50 Add to
017118830139/0L/H GUARD£10.50 Add to
018118830551/0SCREW£3.83 Add to
019118830559/0BOLT£4.52 Add to
020118830572/0BOLT£4.78 Add to
021118830040/0CONNECTING ROD£16.94 Add to
022118830038/0PARKING BRAKE HANDLE [GREY]£48.81 Add to
023118830057/0CONNECTING ROD L/H£21.26 Add to
024118830561/0BOLT£4.52 Add to
025118830154/0FLANGED BUSH .32 x .500 x .344 x .880£7.23 Add to
026118830615/0WASHER£2.47 Add to
028118830052/0SPACER£5.05 Add to
029118830165/0HAIR PIN 0.08 x .18 x 1.18£7.78 Add to
030118830039/0LEVER ARM£37.40 Add to
031118830563/0BOLT£3.69 Add to
033118830049/0TRUNNION PIN£14.57 Add to
034118830629/0WASHER£5.05 Add to
035118830050/0BUSH£7.04 Add to
036118830326/0SELF-TAPPING SCREW£2.71 Add to
037118830037/0L/H NEUTRAL LATCH£37.08 Add to
038118830036/0R/H NEUTRAL LATCH£40.78 Add to
039118830197/0TENSION SPRING£31.17 Add to
040118830192/0COMPRESSION SPRING£13.64 Add to
041118830042/0CONNECTING ROD£18.68 Add to
042118830138/0PARKING BRAKE GRIP£10.91 Add to
043118830041/0CONNECTING ROD£21.26 Add to
044118830630/0WASHER£3.49 Add to
045118830043/0BRAKE SHAFT£68.42 Add to
046118830024/0FLANGED BUSH .325 x .499 x .26 x .88£7.10 Add to
047118830621/0WASHER£2.71 Add to
049118830156/0CIRCLIP .250 x .025£6.14 Add to
050118830607/0WASHER£2.71 Add to
