Steering Controls

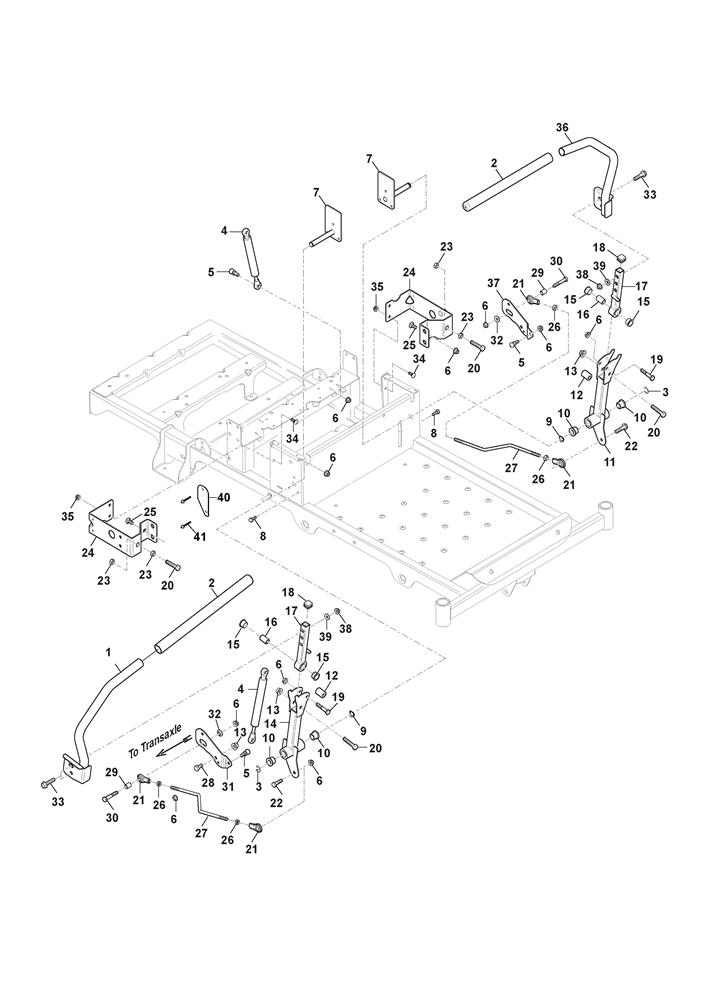

Steering Controls assembly details for Stiga ZT 3107 T (2F1020611/S17) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118830081/0R/H STEERING HANDLE [GREY]£49.12 Add to
002118830090/0HANDLEBAR 15" FOAM GRIP£21.83 Add to
003118830157/0CIRCLIP .438 x 1.00 x 0.83£8.32 Add to
004118830063/0DAMPER£88.85 Add to
005118830033/0BALL STUD£14.57 Add to
006118830679/0NUT£5.21 Add to
007118830084/0STEERING SHAFT£34.88 Add to
008118830326/0SELF-TAPPING SCREW£2.71 Add to
009118830605/0WASHER£2.71 Add to
010118830153/0FLANGED BUSH£14.18 Add to
011118830078/0L/H LOWER CONTROL ARM£76.59 Add to
012118830149/0BUSH£11.32 Add to
013118830656/0NUT£2.71 Add to
014118830085/0R/H LOWER CONTROL ARM£76.59 Add to
015118830151/0FLANGED BUSH£5.21 Add to
016118830082/0SPACER .375 x .625 x .970£5.21 Add to
017118830080/0UPPER CONTROL ARM£39.69 Add to
018118830174/0SQUARE PLUG CAP£5.05 Add to
019118830568/0BOLT£3.69 Add to
020118830584/0BOLT£7.23 Add to
021118830054/0JOINT 5/16" RH THREAD£15.00 Add to
022118830561/0BOLT£4.52 Add to
023118830648/0NUT£2.71 Add to
024118830064/0BRACKET£46.54 Add to
025118830596/0BOLT£2.71 Add to
026118830650/0NUT£2.71 Add to
027118830083/0STEERING LINK ROD£21.83 Add to
028118830573/0BOLT£4.10 Add to
029118830087/0SPACER .328 x .500 x .625£2.71 Add to
030118830567/0BOLT£2.87 Add to
031118830142/0R/H DAMPENER PLATE£12.00 Add to
032118830076/0FLANGED BUSH£2.71 Add to
033118830663/0BOLT£7.23 Add to
035118830632/0NUT£4.23 Add to
036118830086/0L/H STEERING HANDLE£49.12 Add to
037118830144/0L/H DAMPENER PLATE£9.28 Add to
038118830651/0NUT£6.69 Add to
039118830613/0WASHER£6.69 Add to
040118830145/0DAMPENER PLATE GUARD£7.10 Add to
041118830311/0RIVET£2.71 Add to
