Electric Equipment

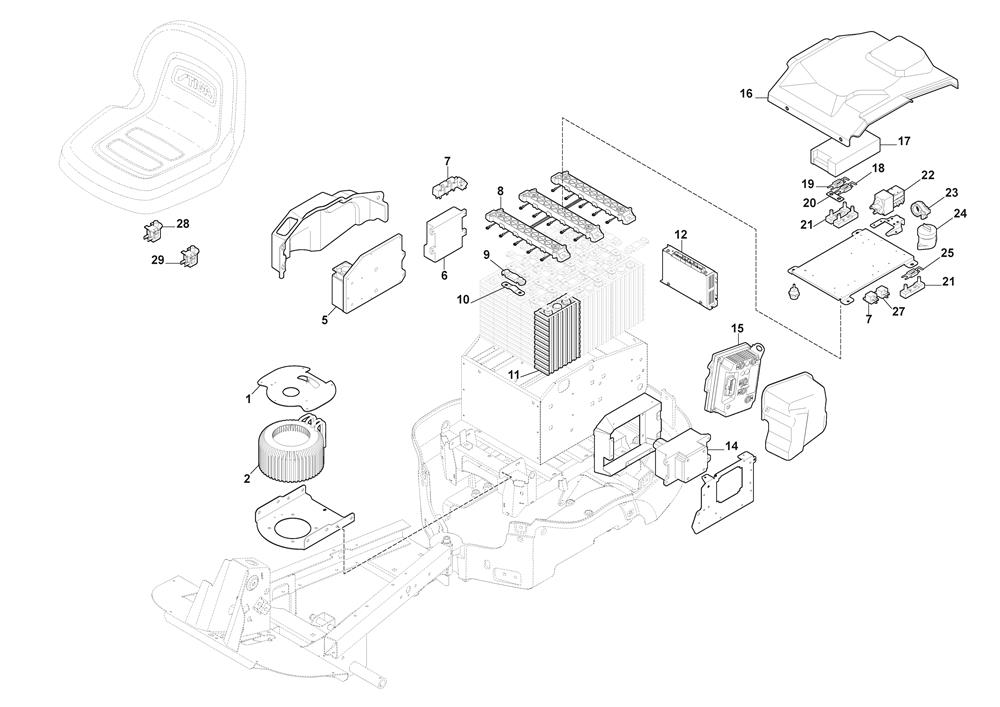

Electric Equipment assembly details for Stiga E-PARK 220 (2F5828001/ST1) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387547056/0BLADE MOTOR PLATE£48.12 Add to
002118563738/1ELECTRIC MOTOR£1,570.59 Add to
005387111000/1TRACTION CONTROLLER£2,058.57 Add to
006118361012/1VMS BLACK BOX£1,911.53 Add to
007118361002/0RELAYS R502-012Z3C9£42.53 Add to
008187040327/0CELL VOLTAGE WIRING£267.35 Add to
009118737880/0TERMINAL COVER£6.55 Add to
010118361008/1TERMINAL'S COVER KIT FOR 90Ah£211.50 Add to
011118361007/0WB-LYP90AHA SINGLE CELL 90AH£334.18 Add to
012118361006/0BMS-ZD V.3 (ED) PER BATTERIE LITIO 24£1,737.71 Add to
014118204145/0BATTERY CHARGER FM E-PARK£1,369.79 Add to
015387111001/1BLADES CONTROLLER£2,386.07 Add to
016337600046/0BLACK BATTERY UPPER COVER PKEL£402.28 Add to
017118361009/0DC-DC 48-12 V£225.12 Add to
018133340043/0FUSE 125 A£41.44 Add to
019133340044/0FUSE 50A£31.63 Add to
020337546699/0FUSE HOLDER PLATE£10.43 Add to
021118361011/0BOLT-DOWN FUSEHOLDER£68.42 Add to
022118361004/0CONTACTOR KZTP SW180£211.50 Add to
023118361010/0LEM CURRENT SENSOR£98.91 Add to
024118361000/0TELERUTTORE GIGAVAC GV141BAX£545.36 Add to
025133340045/0FUSE 35 A£21.67 Add to
027133567002/0OPC DELAYED RELAY£57.48 Add to
0281134-3156-02SEAT SWITCH [GREY]£47.97 Add to
0291134-3156-01SEAT SWITCH [BLACK]£45.26 Add to
