PTO

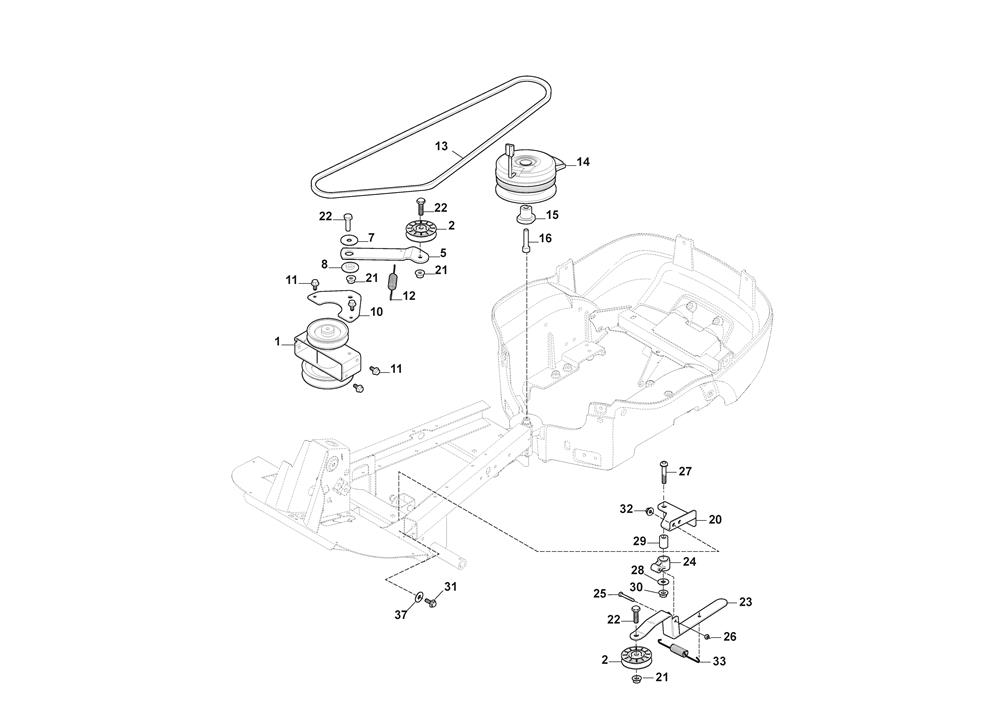

PTO assembly details for Stiga E-PARK 220 (2F5828001/ST1) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387605024/0DOUBLE INTERMEDIATE PULLEY ASSEMBLY£124.29 Add to
002387605008/0TENSION PULLEY [GREY]£35.71 Add to
005337315015/0WZ BELT TENSIONER LEVER PKEL£18.53 Add to
0079699-0109-02WASHER 10.5 x 40 x 2£2.32 Add to
0081134-0222-00TENSION WASHER£14.45 Add to
010387547051/0PLATE£14.98 Add to
0119945-0816-16SCREW M8 X 16£2.54 Add to
0121137-1029-01SPRING£3.81 Add to
0131134-9068-01DECK DRIVE BELT£34.35 Add to
0141137-0863-01MAGNETIC CLUTCH£340.87 Add to
015137038013/0CLUTCH BEARING PKEL£49.34 Add to
016112760565/0SCREW M10 X 45£1.87 Add to
0219739-1031-22NUT M10£2.32 Add to
022112794400/0HEX-HEAD SCREW 10 x 35£2.47 Add to
023387205002/1DECK BELT IDLER ASSEMBLY£90.22 Add to
0241134-6314-01TENSION ARM ATTACHMENT£9.00 Add to
025112689500/0SCREW M6 x 40£2.06 Add to
026112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
027112794987/0SCREW M10 x 50 GEOMET 321A£2.06 Add to
0289699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
0291134-4619-01SPACER£9.39 Add to
0309739-1031-22NUT M10£2.32 Add to
0319959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
032112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
0331137-1029-01SPRING£3.81 Add to
037112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
