Steering

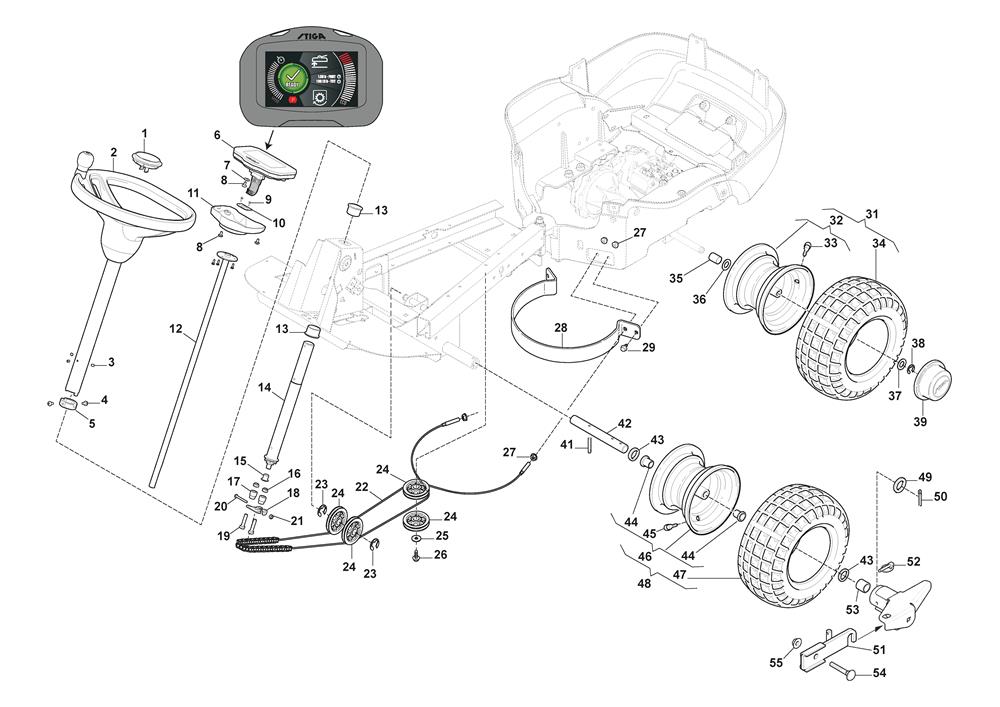

Steering assembly details for Stiga E-PARK 220 (2F5828001/ST1) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002387962003/0STEERING WHEEL-KNOB ASSY£286.45 Add to
003112713801/0DOWEL PIN M6 x 8£2.74 Add to
004112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
005137249200/0LOWER STEERING COLUMN FIX RING£27.27 Add to
006387178900/1DISPLAY 5"£1,069.39 Add to
007112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
008112735651/0SCREW TCB TORX M5 x 10£2.06 Add to
010337546675/0WZ DISPLAY FIX PLATE PK220EL£6.69 Add to
011337110363/0LOWER COVER DISPLAY£12.00 Add to
012387869273/0CTP DISPLAY SUPPORT TUBE PK220EL ASSY£197.87 Add to
013137038012/0FLANGE BEARING DI=30 DE=35 DF=40 H=22£17.86 Add to
014387520137/0CTP LOWER STEERING COLUMN ASSY PK220EL£116.11 Add to
015112053500/0FLANGE BEARING IGUS GFM-1214-15£5.87 Add to
016112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
017125160030/2PULLEY SPACER£6.47 Add to
019119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
021112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
022387283200/0STEERING CHAIN ​ASSEMBLY£54.01 Add to
0239653-0001-04CIRCLIP 3/4"£2.61 Add to
0241134-9025-01STEERING PULLEY [2 PCS]£20.09 Add to
025112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0269945-0816-16SCREW M8 X 16£2.54 Add to
027112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
0281137-0749-01WIRE BRACKET£54.79 Add to
0299945-0816-16SCREW M8 X 16£2.54 Add to
031387680301/0REAR WHEEL ASSEMBLY 14"£162.60 Add to
032187000451/1REAR WHEEL RIM 4.375 x 8£76.59 Add to
0339545-0500-00VALVE ASSY.£5.73 Add to
034137950010/0TYRE 160/50-8 TURF GRIP£76.59 Add to
0351134-4845-02HUB SLEEVE£9.00 Add to
0361134-0341-01WASHER£7.10 Add to
0371134-4981-01WASHER£3.41 Add to
0389653-0001-04CIRCLIP 3/4"£2.61 Add to
0391137-1006-01HUB CAP£7.36 Add to
041112645710/0ROLL PIN D=6 x 32£2.47 Add to
0421134-0075-00FRONT AXLE£19.09 Add to
0431134-0341-01WASHER£7.10 Add to
044137038001/015" FRONT WHEEL BUSH£7.27 Add to
0459545-0500-00VALVE ASSY.£5.73 Add to
046187000450/1FRONT WHEEL RIM 4.375 x 8£68.42 Add to
047137950010/0TYRE 160/50-8 TURF GRIP£76.59 Add to
048387680303/0WHEEL ASSEMBLY 14"£155.53 Add to
0499699-0042-02WASHER 20 x 36 x 3£2.47 Add to
0509599-0080-02COTTER PIN£2.47 Add to
0511134-7465-01ATTACHMENT HOOK PLATES [LH & RH]£53.42 Add to
0521137-0077-01LOCKING PIN£3.81 Add to
0539548-0026-01BEARING 20E7x26-20£32.99 Add to
0549898-1035-16SCREW 10 x 35£3.15 Add to
0559739-1031-22NUT M10£2.32 Add to
