Body Works

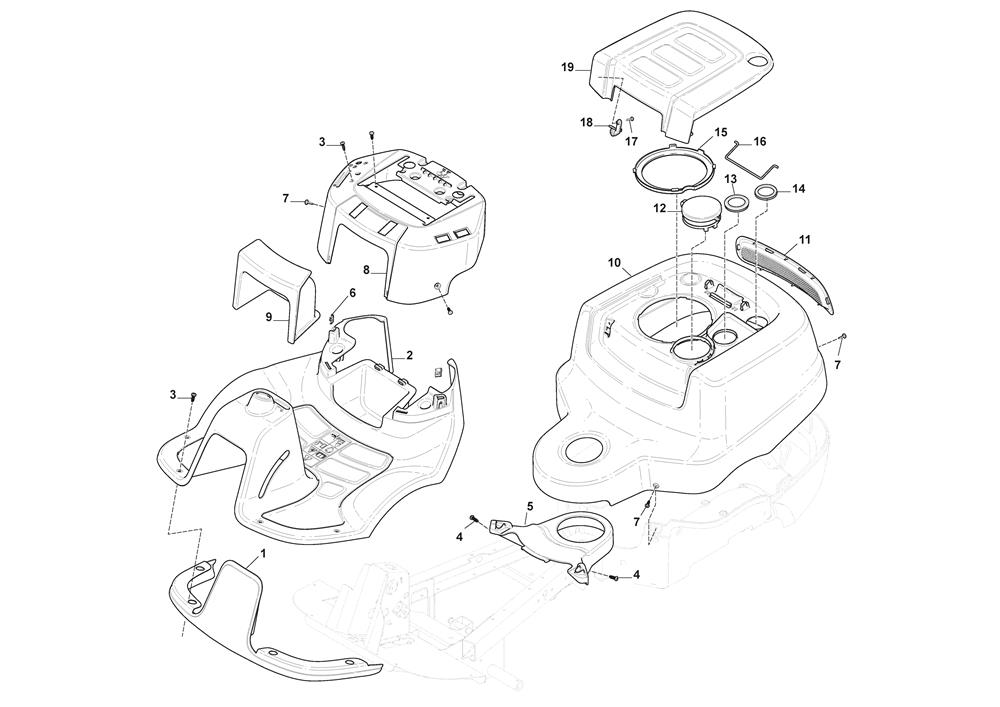

Body Works assembly details for Stiga Park 120 (2F5820241/S16) 2019 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	337502506/0	FRONT BUMPER (YELLOW)	£19.61	Add to
002	337110316/0	FOOTBOARD COVER [GREY]	£160.41	Add to
003	9893-0616-16	SCREW M6 x 16	£2.47	Add to
004	9893-0616-16	SCREW M6 x 16	£2.47	Add to
005	1137-0906-01	BELT GUIDE	£9.68	Add to
006	1134-4176-01	CLIP	£5.19	Add to
007	9893-0616-16	SCREW M6 x 16	£2.47	Add to
008	337110317/1	CENTRAL COVER [GREY]	£57.52	Add to
009	337207101/0	HOLDER COVER	£15.36	Add to
010	1137-0854-01	ENGINE HOOD [YELLOW]	£259.19	Add to
011	337110314/0	REAR COVER	£15.54	Add to
012	1137-0859-01	OIL CAP	£3.83	Add to
013	1137-1015-01	SLEEVE	£7.57	Add to
014	1137-1028-01	SLEEVE	£7.57	Add to
016	1137-0860-01	HINGE	£6.14	Add to
017	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
018	1137-0861-01	SPRING LATCH	£2.47	Add to
019	337110315/0	ENGINE COVER	£31.66	Add to
