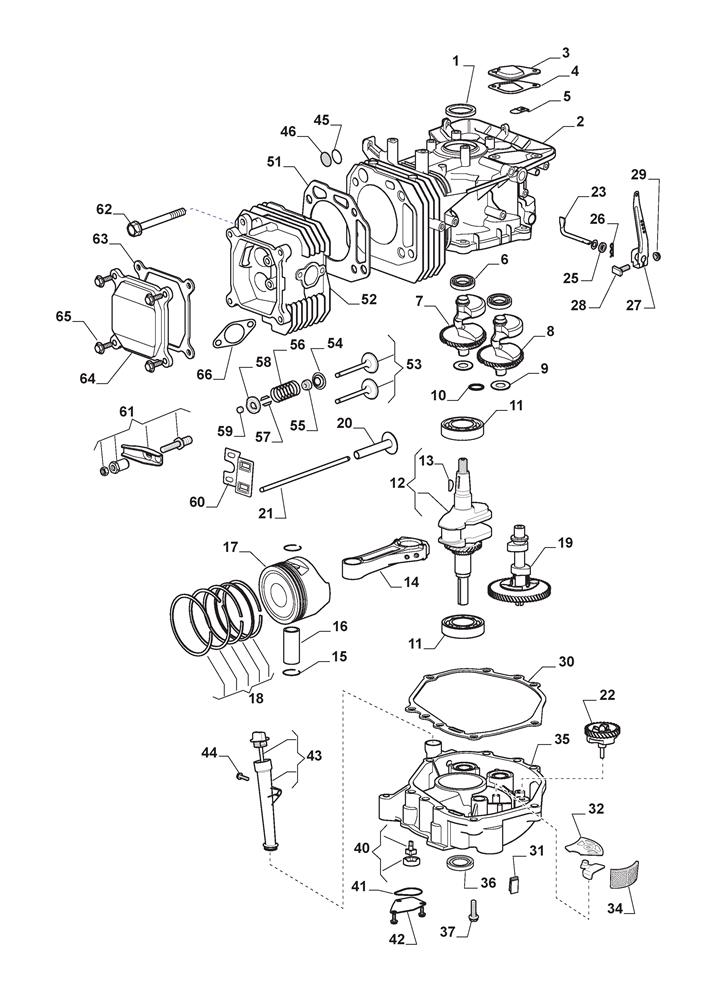

Engine - Piston, Crankshaft

Engine - Piston, Crankshaft assembly details for Stiga Park 120 (2F5820241/S16) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118551418/0OIL SEAL£10.36 Add to
004118551229/0BREATHER CHAMBER GASKET£3.96 Add to
006118551284/0BEARING£13.77 Add to
007118551242/0COUNTERWEIGHT£53.42 Add to
008118551243/0COUNTERWEIGHT£53.42 Add to
009118551282/0FLAT WASHER£2.32 Add to
010118551286/0O RING 11.7 x 2.5£1.79 Add to
011118550227/0BALL BEARING£18.13 Add to
012118550232/0CRANKSHAFT£200.51 Add to
013118550288/0WOODRUFF KEY£6.55 Add to
014118550231/1CONNECTING ROD£57.52 Add to
015118551283/0PISTON PIN CLIP£1.79 Add to
016118551241/0PISTON PIN£7.78 Add to
017118551509/0PISTON£39.80 Add to
018118551508/0PISTON RING SET£34.35 Add to
019118550243/0CAMSHAFT ASSEMBLY£113.39 Add to
020118551252/0VALVE LIFTER£5.24 Add to
021118550242/1PUSH ROD£6.27 Add to
022118551506/0SPEED GOVERNOR ASSEMBLY£20.72 Add to
023118551505/0GOVERNOR ARM SHAFT£10.36 Add to
027118551220/0GOVERNOR ARM£16.62 Add to
029118550806/0NUT£2.14 Add to
030118550355/1CRANKCASE GASKET£17.02 Add to
034118551256/1OIL STRAINER£4.52 Add to
035118551207/0CRANKCASE COVER£170.61 Add to
036118551418/0OIL SEAL£10.36 Add to
037112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
040118550224/1OIL PUMP£21.26 Add to
041118551507/0SEAL RING£2.87 Add to
042118550223/0OIL PUMP COVER£6.01 Add to
043118550444/1OIL DIPSTICK ASSEMBLY£24.95 Add to
044112674701/0SCREW TE M6 x 35£2.06 Add to
045118551230/0BREATHER VALVE£2.74 Add to
046118551228/0COVER£4.10 Add to
051repla0000101ROCKET GASKETN/A POA
052118551503/0CYLINDER HEAD£170.61 Add to
055118551248/0VALVE STEM SEAL£8.60 Add to
056118550529/0VALVE SPRING£6.42 Add to
057118551247/0VALVE PLATE£2.06 Add to
058118551246/0VALVE SPRING RETAINER£4.68 Add to
059118551244/0VALVE CAP£3.41 Add to
061118551510/0ROCKER ARM SET£7.92 Add to
063118551531/0ROCKER COVER GASKET£17.04 Add to
064118551534/0CYLINDER HEAD COVER£8.45 Add to
065118551535/0HEXAGONAL BOLT£1.87 Add to
066118551272/0MUFFLER GASKET£2.87 Add to
