Body

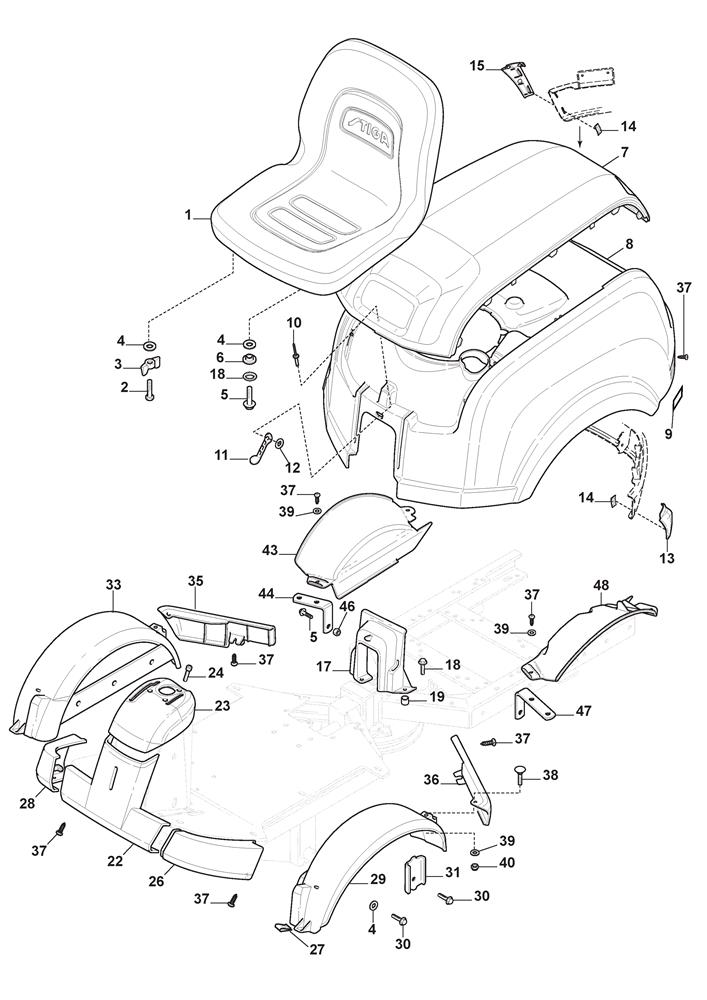

Body assembly details for Stiga Park 340 PWX (2F6130621/S18) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001137722604/0SEAT [VILLA/PC/PCH]£338.69 Add to
002112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
0031134-4481-01WING NUT (M8)£2.06 Add to
004112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0059959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0061134-4185-01FLANGE WASHER£6.71 Add to
007337110334/0TOP ENGINE COVER [GREY]£77.95 Add to
008337076805/0ENGINE HOOD PCH YELLOW£313.70 Add to
009337580302/0PLATE [YELLOW]£7.63 Add to
0109632-0513-00POP RIVET 3.2 x 20£2.06 Add to
0111134-9028-01RUBBER STRAP (3 PCS)£26.46 Add to
0129699-0120-02WASHER 3.2 x 14 x 1.5£2.32 Add to
013337110336/0LEFT BUMPER END£15.00 Add to
0141134-6310-01CLIP£2.32 Add to
015337110335/0RIGHT BUMPER END£14.32 Add to
0171134-6241-01HOOD SUPPORT£42.53 Add to
018112735594/0HEX-HEAD SCREW M6 x 30£2.06 Add to
0191137-0020-02SPACER£5.60 Add to
020112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
0221134-5305-01FRONT BUMPER [YELLOW]£84.77 Add to
023337110358/0FRONT UPPER PART [YELLOW]£31.22 Add to
0249946-0525-16SCREW M5 x 25£2.47 Add to
026337502509/0LEFT FRONT BUMPER [GREY]£53.42 Add to
0271134-4176-01CLIP£5.19 Add to
028337502508/0RIGHT FRONT BUMPER [GREY]£50.94 Add to
029337491255/0LEFT MUDGUARD [GREY]£114.74 Add to
0309945-0816-16SCREW M8 X 16£2.54 Add to
0311137-0088-01SUPPORT PLATE£2.74 Add to
035337110332/0RIGHT MOULDING [GREY]£54.79 Add to
036337110331/0LEFT MOULDING [GREY]£57.15 Add to
0379893-0616-16SCREW M6 x 16£2.47 Add to
038112815200/0SCREW TTDQ M6X16£2.06 Add to
039112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
040112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
043337491256/0INNR MUDGUARD R/H (PARK)£102.93 Add to
0441134-4012-03RIGHT BRACKET£18.82 Add to
046112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
0471134-4012-04LEFT BRACKET£18.82 Add to
048337491257/0INNER MUDGUARD L/H (PARK)£102.93 Add to
