Electrical parts

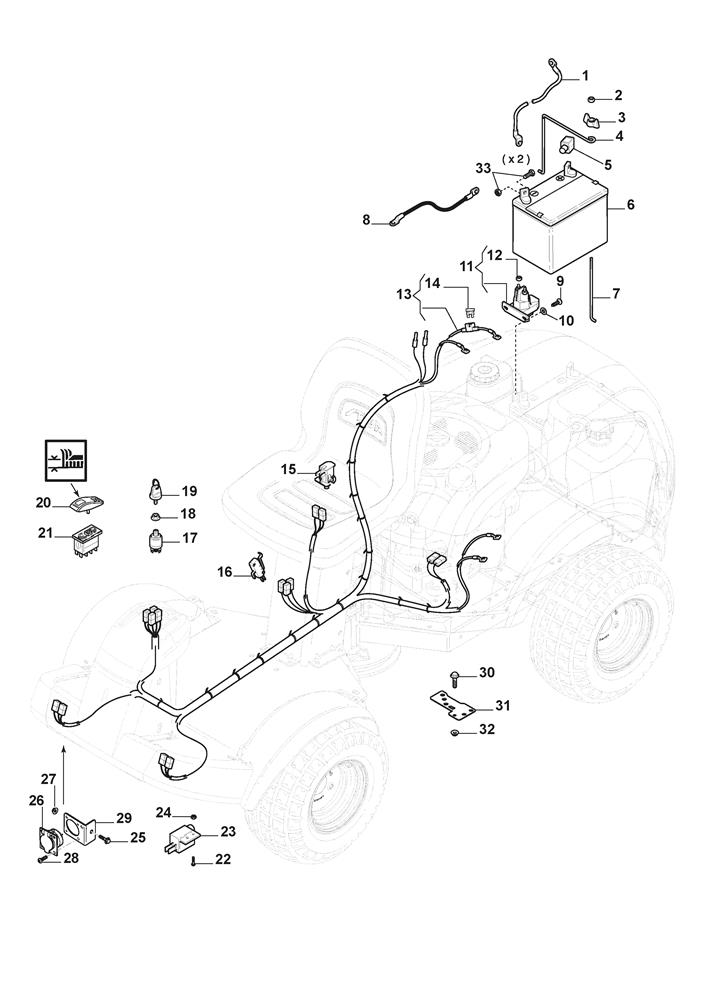

Electrical parts assembly details for Stiga Park 340 PWX (2F6130621/S18) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-0234-02BATTERY CABLE (+)£24.95 Add to
002112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0031134-4481-02WING NUT£6.14 Add to
0041134-5994-01BATTERY LOOP£9.82 Add to
0051134-2310-01GUARD CAP (+)£9.28 Add to
006118120065/0BATTERY YUASA 12V 30AH NO RETURNS ON THIS ITEM£109.58 Add to
0071134-5995-01BATTERY LOOP£6.55 Add to
0081134-5992-01BATTERY CABLE (L = 950)£28.90 Add to
0099852-8013-16SCREW£2.47 Add to
010112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
011118736112/0SOLENOID£39.80 Add to
012112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
013187040308/0WIRING HARNESS£170.61 Add to
0141134-3496-06FUSE 20A£2.06 Add to
0151134-3156-02SEAT SWITCH [GREY]£47.97 Add to
0169400-0360-01MICRO SWITCH£8.60 Add to
0171134-4093-01IGNITION SWITCH£67.05 Add to
0181134-4749-01NUT£5.05 Add to
0191134-4734-01IGNITION KEY£17.72 Add to
0209400-0280-03SWITCH COVER-HEIGHT ADJUST£18.27 Add to
0219400-0282-01SWITCH C/W DIODE No returns on this item£76.59 Add to
022112789008/0HEX-HEAD SCREW M5 x 20£2.06 Add to
0231134-3399-02SWITCH£45.26 Add to
024112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
0259959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
026387149302/02 POLE FEMALE CONNECTOR£11.33 Add to
027112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
028112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
0291137-0075-01ATTACHMENT BRACKET£9.94 Add to
0309959-0612-16SCREW M6SF M6 x 12 TL£1.79 Add to
0311134-6454-01GROUND PLATE£15.41 Add to
032112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0331134-6113-02BATTERY SCREWS PACK£13.37 Add to
