Frame

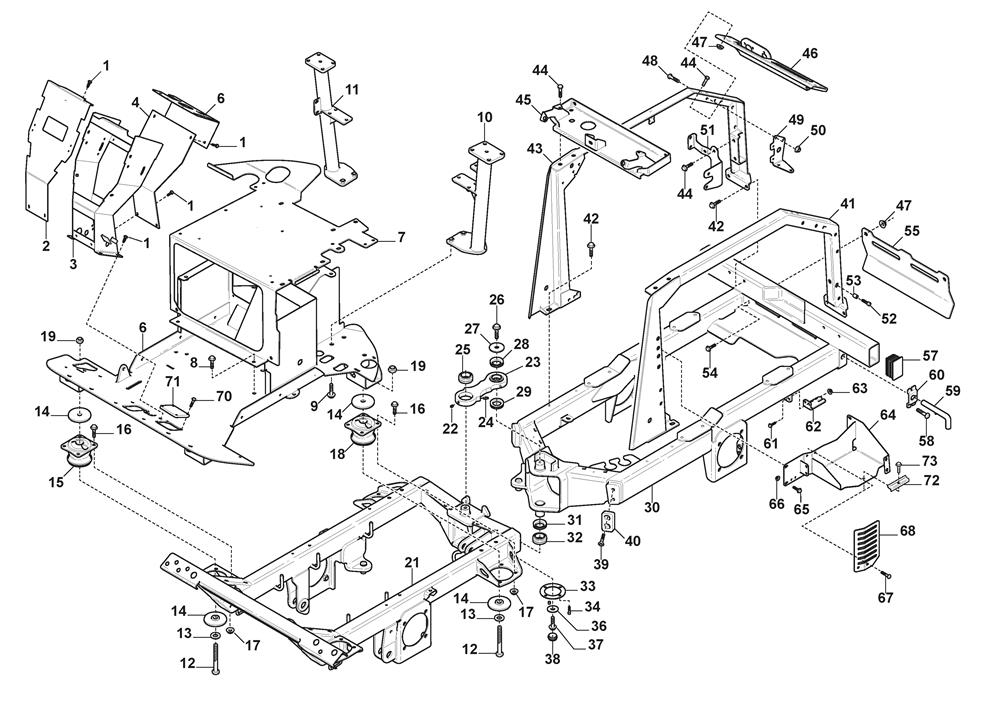

Frame assembly details for Stiga Titan 740 DCR (13-7462-11) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0019893-0616-16SCREW M6 x 16£2.47 Add to
0061137-0548-01FLOOR PLATE£1,737.71 Add to
0099959-1225-16SCREW M6SF 8.8£2.06 Add to
0111137-0544-01ROPS ATTACHMENT ARM R/H£422.72 Add to
012082-202-01SCREW M6S M16 x 100 FZB 8.8£4.52 Add to
0139699-0123-02WASHER 17 x 40 x 6£4.75 Add to
0169959-1025-16SCREW M6SF M10 x 25 TL£3.00 Add to
0179739-1031-22NUT M10£2.32 Add to
019112295801/0HEXAGON NUT M16£2.06 Add to
0229907-0610-16SCREW£3.55 Add to
0231135-3018-01LINK ASSEMBLY£375.02 Add to
024112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
0259547-0006-01SPHERICAL BEARING£34.35 Add to
0269959-1025-16SCREW M6SF M10 x 25 TL£3.00 Add to
0271135-4008-01WASHER V-RING£11.18 Add to
0289404-0204-01SEALING RING£12.55 Add to
0299404-0202-01SEALING RING£4.52 Add to
030387800027/0REAR FRAME ASSYN/A POA
0319404-0202-01SEALING RING£4.52 Add to
0329547-0007-01SPHERICAL BEARING£61.60 Add to
0331135-4009-01LOCK WASHER£71.14 Add to
034112760515/0HEXAGONAL SCREW TC M8 x 20£0.79 Add to
0361135-4010-01WASHER£7.10 Add to
0379991-1024-19SCREW M10 x 24£2.59 Add to
0381135-4007-01COVER ARTICULATION JOINT£13.77 Add to
0401135-3188-01STEERING LIMIT£26.18 Add to
0429959-1025-16SCREW M6SF M10 x 25 TL£3.00 Add to
044112800815/0SCREW TE FL M8 x 16£2.06 Add to
047112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
0489893-0616-16SCREW M6 x 16£2.47 Add to
050112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0511137-0556-01BRACKET-PTO BLOCK£57.52 Add to
0529939-1020-16SCREW£2.06 Add to
0531134-0041-10BUSH£42.53 Add to
0549945-0816-16SCREW M8 X 16£2.54 Add to
0551137-0553-01HEAT GUARD£92.95 Add to
0579403-0058-01END CAP£8.32 Add to
058112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
0591134-7525-01LOCKING PIN£56.15 Add to
0601134-7523-01BRACKET-LOCKING PIN£12.96 Add to
0619959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
063112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0641137-0509-01BATTERY HOLDER£177.43 Add to
065112800815/0SCREW TE FL M8 x 16£2.06 Add to
066112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
070112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
0721134-6943-01BATTERY CLAMP£18.95 Add to
0739959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
