PTO

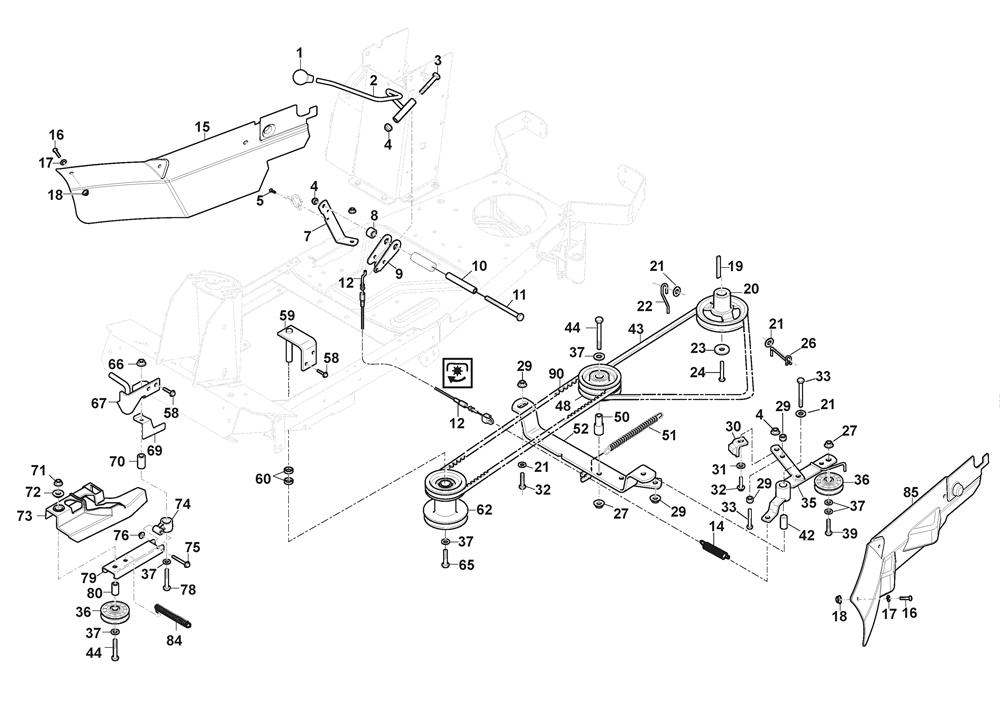

PTO assembly details for Stiga Villa 14 HST (2F2720421/S16) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-2551-01	GEAR KNOB	£11.59	Add to
002	1134-5276-01	CONTROL LEVER	£42.53	Add to
003	112692080/0	HEX-HEAD SCREW M8 x 90	£2.06	Add to
004	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
005	9840-7716-16	SCREW	£2.32	Add to
007	1134-5356-01	STRUT	£20.45	Add to
008	1134-3047-01	SPACER	£8.04	Add to
009	1134-5271-01	CONTROL BRACKET	£35.71	Add to
010	1134-5274-02	SPACER	£9.68	Add to
011	9997-0812-02	SCREW M6S M8 x 120	£2.06	Add to
012	1134-3573-06	PTO CABLE	£34.35	Add to
014	1134-1242-02	SPRING	£10.50	Add to
015	337600008/1	RIGHT BELT GUARD [BLACK]	£18.95	Add to
016	9893-0616-16	SCREW M6 x 16	£2.47	Add to
017	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
018	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
019	9600-0251-01	KEY L=2.5"	£6.95	Add to
020	1137-0081-01	ENGINE PULLEY	£32.99	Add to
021	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
022	1134-5058-01	BELT GUIDE	£19.36	Add to
023	1134-5017-02	WASHER 40 x 11.5 x 4	£3.15	Add to
024	9987-5332-16	SCREW U6S 7/16" UNF x 32	£2.47	Add to
026	1134-5057-01	BELT GUIDE	£18.82	Add to
027	9739-1031-22	NUT M10	£2.32	Add to
029	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
030	1134-4164-03	BRAKE PAD	£32.99	Add to
031	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
032	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
033	112691800/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
035	1137-0144-01	TENSION ARM	£41.44	Add to
036	387605008/0	TENSION PULLEY [GREY]	£35.71	Add to
037	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
039	112794400/0	HEX-HEAD SCREW 10 x 35	£2.47	Add to
042	1134-1565-10	SPACER	£8.73	Add to
043	1134-9146-01	PTO DRIVE BELT	£35.71	Add to
044	9997-1070-12	SCREW M6S (M10 X 70)	£3.81	Add to
048	387605002/0	DOUBLE CENTRE PULLEY ASSEMBLY	£84.77	Add to
050	1134-1839-02	SHAFT	£18.53	Add to
051	1134-3974-01	SPRING	£12.40	Add to
052	1134-5037-01	BRACKET	£61.60	Add to
058	9945-0816-16	SCREW M8 X 16	£2.54	Add to
059	1134-4650-01	PULLEY BRACKET	£44.09	Add to
060	1134-0052-00	SPACER	£8.87	Add to
062	387605015/0	INTERMEDIATE BELT PULLEY	£89.43	Add to
065	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
066	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
067	387773553/0	IDLER BRACKET ASSEMBLY	£60.24	Add to
070	1134-4619-01	SPACER	£9.39	Add to
071	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
072	137038000/0	BUSH	£5.46	Add to
073	337600007/1	BELT GUARD [BLACK]	£6.55	Add to
074	1134-6314-01	TENSION ARM ATTACHMENT	£9.00	Add to
075	112689500/0	SCREW M6 x 40	£2.06	Add to
076	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
078	112794987/0	SCREW M10 x 50 GEOMET 321A	£2.06	Add to
079	1134-5231-01	TENSION ARM	£23.72	Add to
080	137160009/0	IDLER SPACER D=20 L=31	£10.79	Add to
084	1131-1507-00	SPRING	£34.35	Add to
085	337600009/1	LEFT BELT GUARD [BLACK]	£19.77	Add to
090	1134-9079-01	DRIVE BELT	£41.16	Add to
