Transmission

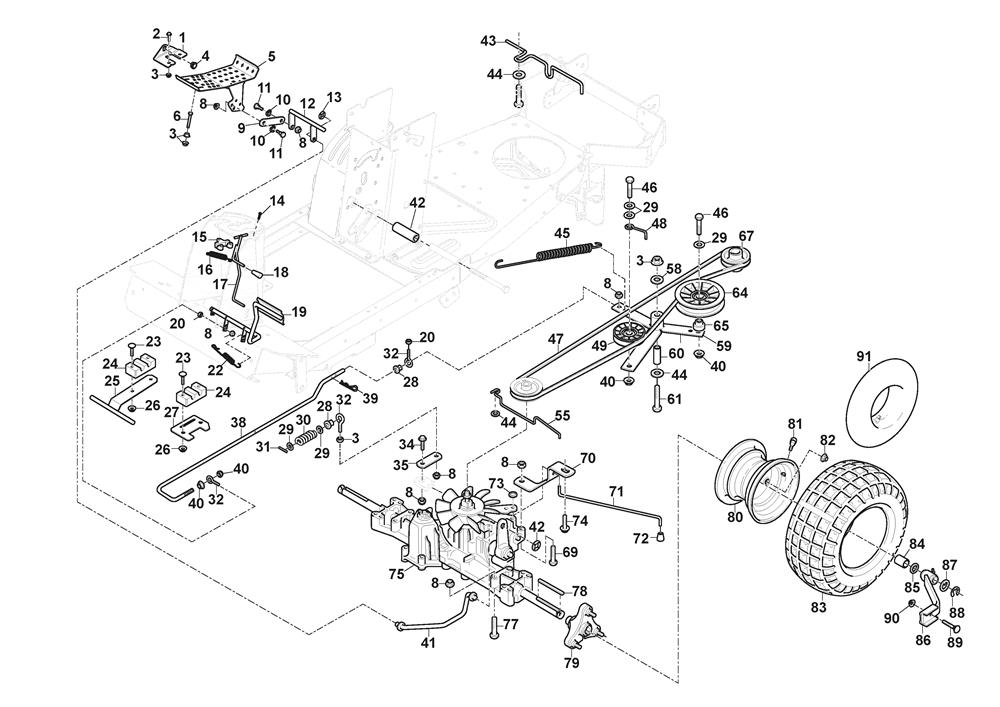

Transmission assembly details for Stiga Villa 14 HST (2F2720421/S16) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-2700-01	BRACKET	£17.45	Add to
002	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
003	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
004	1134-6313-01	BEARING	£7.36	Add to
005	1134-6353-01	IMPLEMENT PEDAL	£43.62	Add to
006	112793900/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
008	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
009	1134-4441-01	LINK	£13.23	Add to
010	9694-0001-00	SPACER WASHER	£2.06	Add to
011	1134-0240-00	SCREW	£9.14	Add to
012	1134-4440-01	SHAFT	£35.71	Add to
013	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
014	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
015	1134-4002-01	BRAKE ROD ATTACHMENT	£12.27	Add to
016	1131-1497-01	BRAKE SPRING	£10.50	Add to
017	1134-5353-01	BRAKE ROD	£29.61	Add to
018	1134-2786-01	PLASTIC KNOB	£6.42	Add to
018	325394525/0	PARKING BRAKE KNOB TC MECHANIC	£11.18	Add to
019	1134-4802-01	PEDAL	£56.15	Add to
020	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
022	4231-0013-00	SPRING	£8.87	Add to
023	9897-0640-12	CARRIAGE BOLT M6 x 40	£2.32	Add to
024	1134-4624-01	BEARING	£9.41	Add to
025	387773501/0	FULCRUM BRACKET	£23.58	Add to
026	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
027	1134-4793-01	BRACKET	£17.18	Add to
028	1134-4779-01	PLASTIC BUSH	£2.18	Add to
029	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
030	1134-4617-01	SPRING	£4.52	Add to
031	9595-0208-00	LOCATING PIN	£2.74	Add to
032	1134-2138-01	EYE BOLT	£8.87	Add to
034	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
035	1134-4972-01	BRACKET	£12.55	Add to
038	1134-4949-01	CLUTCH ROD	£44.11	Add to
039	9598-0002-02	SPRING PIN 2.5mm L=47mm	£2.06	Add to
040	9739-1031-22	NUT M10	£2.32	Add to
041	1134-5288-01	CONTROL ROD	£38.44	Add to
042	1134-5508-01	CONTROL SLEEVE	£17.86	Add to
043	1134-6637-01	BELT GUIDE	£13.49	Add to
044	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
045	1134-5214-01	SPRING	£13.49	Add to
046	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
047	1134-9165-01	TRANSMISSION BELT	£39.80	Add to
048	1134-1795-01	BELT STIRRUP	£11.87	Add to
049	387605008/0	TENSION PULLEY [GREY]	£35.71	Add to
055	1134-5319-01	BELT GUIDE	£8.32	Add to
058	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
059	1134-4519-01	TENSION ARM	£43.46	Add to
060	1134-1565-08	SPACER	£9.94	Add to
061	112793905/0	HEX-HEAD SCREW M8 x 70	£2.32	Add to
064	387605016/0	TENSION PULLEY	£46.61	Add to
065	1134-4614-01	SPACER	£9.00	Add to
067	1137-0205-01	ENGINE PULLEY	£32.99	Add to
069	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
070	1134-6290-01	STRUT	£10.77	Add to
071	1134-5156-01	PULL ROD	£11.32	Add to
072	1134-4014-01	KNOB	£5.19	Add to
073	112604896/0	STARLOCK WASHER D=6	£2.06	Add to
074	9945-0816-16	SCREW M8 X 16	£2.54	Add to
075	1134-7766-01	TRANSAXLE K46 CJ	£1,035.97	Add to
077	9960-0860-12	SCREW M8 x 60	£2.32	Add to
078	1134-2471-03	KEY	£8.87	Add to
079	1134-4844-02	WHEEL HUB ASSEMBLY	£57.52	Add to
080	187000453/0	FRONT WHEEL RIM 4.375" x 8"	£69.78	Add to
081	9545-0500-00	VALVE ASSY.	£5.73	Add to
082	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
083	9545-0126-01	TYRE 16 x 6.00-8	£72.50	Add to
084	1134-4845-02	HUB SLEEVE	£9.00	Add to
085	1134-0341-01	WASHER	£7.10	Add to
086	1134-6274-01	ATTACHMENT ARM	£39.80	Add to
087	1134-4981-01	WASHER	£3.41	Add to
088	9653-0001-04	CIRCLIP 3/4"	£2.61	Add to
089	9898-1035-16	SCREW 10 x 35	£3.15	Add to
090	9739-1031-22	NUT M10	£2.32	Add to
091	9545-0203-00	INNER TUBE 16 x 6.50	£26.18	Add to
