Rotor Shaft

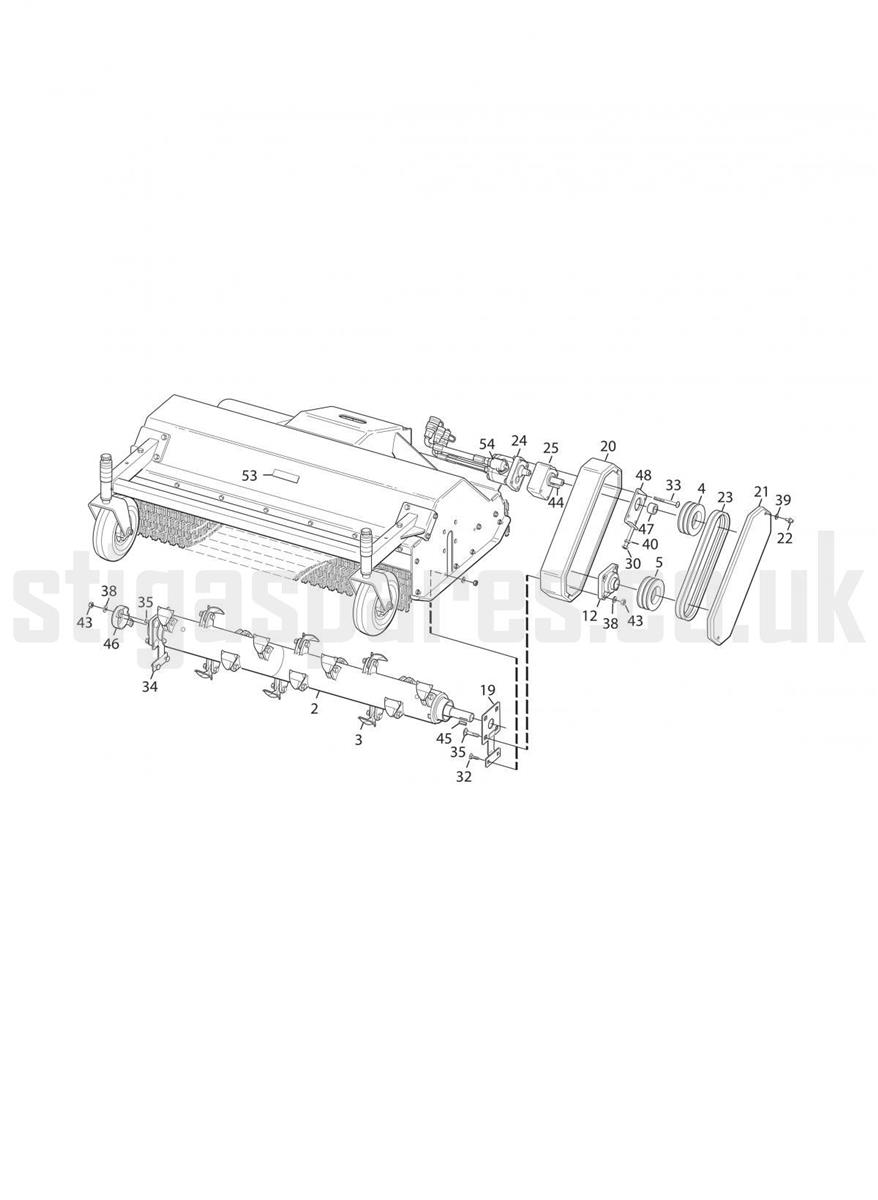

Rotor Shaft assembly details for Stiga FLAIL MOWER 120 CM TITAN 13-7967-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0021319-3592-01ROTOR SHAFT£2,405.42 Add to
0031319-3593-01TINE KIT£409.72 Add to
0041319-3594-01Pulley assyN/A POA
0051319-3595-01Pulley assyN/A POA
0121319-3602-01BearingN/A POA
0191319-3609-01Angle guardN/A POA
0201319-3610-01Belt protectionN/A POA
0211319-3611-01CoverN/A POA
0221319-3612-01ScrewN/A POA
0231319-3613-01BELT KIT£156.99 Add to
0241319-3614-01HYDRAULIC MOTOR£1,744.52 Add to
0251319-3615-01OUTBOARD BEARING£456.94 Add to
0309997-1080-16ScrewN/A POA
0329897-0825-16SCREW M8 x 25£3.15 Add to
0339798-0810-16ScrewN/A POA
0341319-3633-01ScrewN/A POA
0351319-3634-01ScrewN/A POA
0389699-0090-02WASHER 8.4 x 18 x 1.5£2.32 Add to
0391319-3635-01WasherN/A POA
0409798-0831-02NutN/A POA
0439747-1231-02NUT£2.06 Add to
0441319-3636-01KeyN/A POA
0451319-3637-01KeyN/A POA
0461319-3916-01Bearing coverN/A POA
0471319-3917-01SpacerN/A POA
0481319-3918-01Motor Engine plateN/A POA
0531319-3922-01Stiga Label StigaN/A POA
0541319-3923-01Angle couplingN/A POA
