SnowThrower (1)

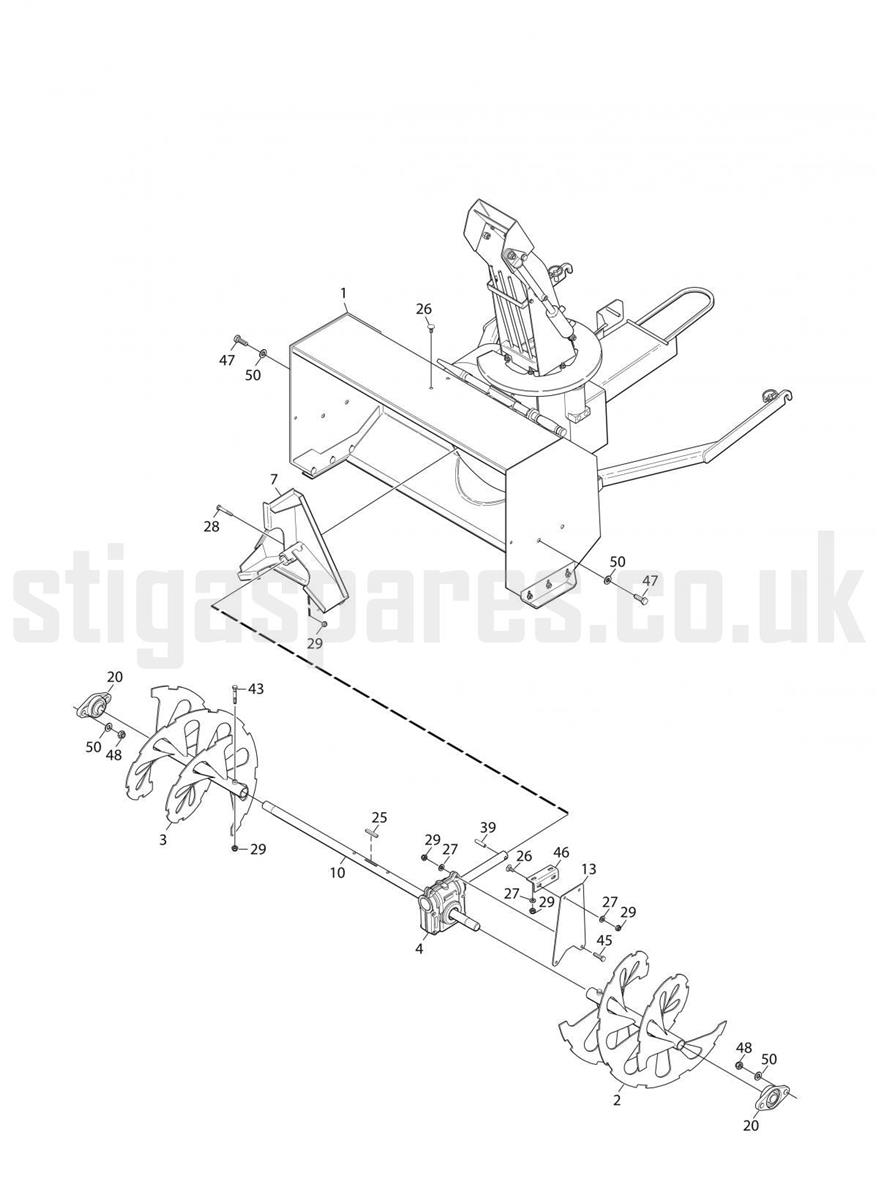

SnowThrower (1) assembly details for Stiga SNOW THROWER 2-STAGE HYDRAULIC 13-3930-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011319-2340-01FRAME£1,484.24 Add to
0021319-2341-01AUGER L/H£197.28 Add to
0031319-2342-01AUGER R/H£197.28 Add to
0041319-1968-01SPIRAL GEARBOX (5:1)£315.28 Add to
0071319-2343-01IMPELLER£443.15 Add to
0101319-1958-01GEARBOX FEED SHAFT£69.78 Add to
0131319-2346-01MOUNTING PLATE£51.96 Add to
0201319-1970-01FLANGE BEARING£87.50 Add to
0251319-1967-01KEY£28.27 Add to
0269898-0820-16SCREW£2.32 Add to
027112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
0289997-0850-16SCREW M6S M8 x 50£4.52 Add to
029112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0391319-1881-01SPRING PIN£1.58 Add to
0401319-1853-01SET SCREW£2.06 Add to
0431319-1963-01SHEAR BOLT£5.05 Add to
0459997-0835-16SCREW M6S 8 x 35£2.32 Add to
0461319-1955-01SUPPORT BRACKET£30.85 Add to
0479997-1245-12Screw£4.01 Add to
0489747-1231-02NUT£2.06 Add to
050112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
