Rotary brush (1)

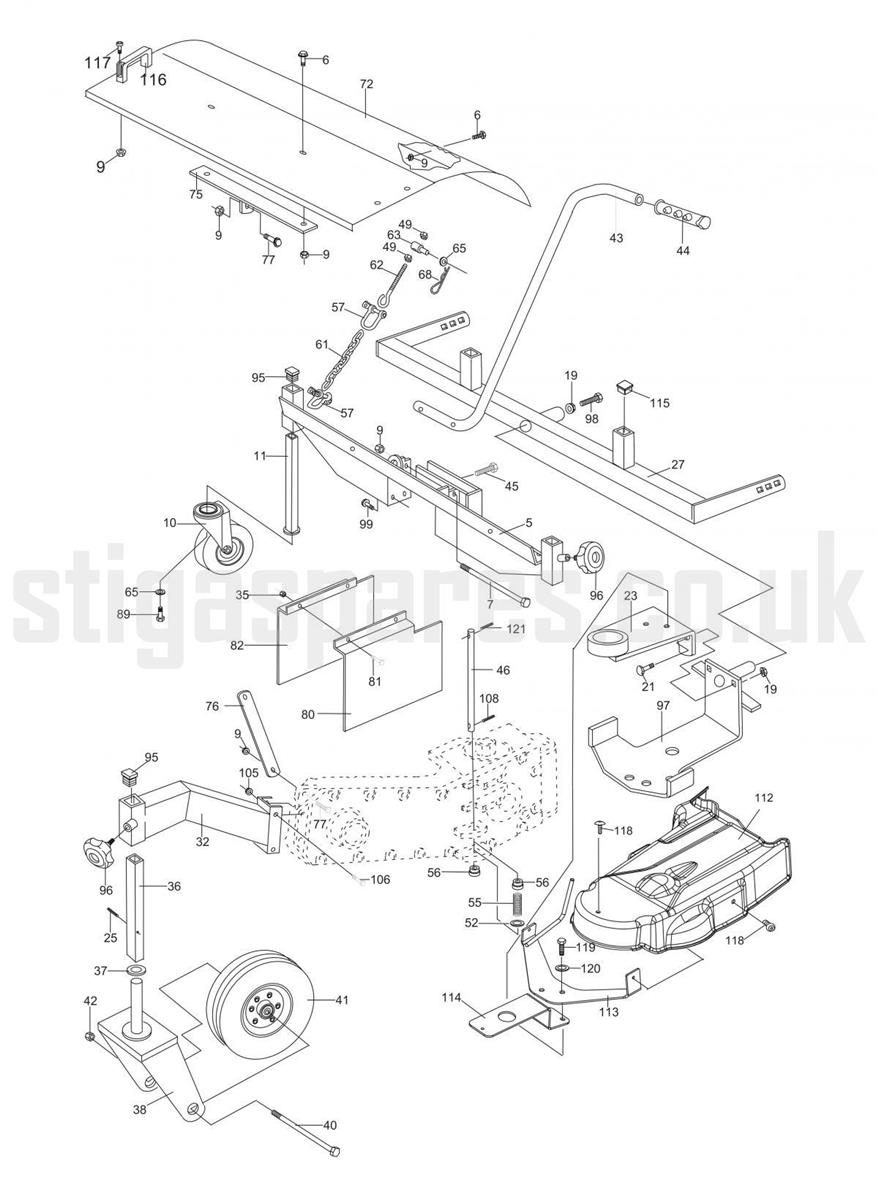

Rotary brush (1) assembly details for Stiga SWEEPER 2 and 4WD - Park 13-0977-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
005	118890120/0	MOUNTING FRAME	£246.02	Add to
009	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
010	1319-1827-01	SUPPORT WHEEL	£109.29	Add to
011	1319-1828-01	TUBE	£33.54	Add to
012	1134-2584-01	SPROCKET	£255.84	Add to
013	9907-1020-19	SCREW	£2.61	Add to
019	9739-1031-22	NUT M10	£2.32	Add to
022	1134-2587-01	SPROCKET	£84.77	Add to
023	1319-2327-01	MOUNTING BRACKET	£97.03	Add to
027	118890122/0	FRAME	£218.32	Add to
032	1319-2329-01	SUPPORT WHEEL BRACKET	£84.77	Add to
035	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
036	1134-2607-01	TUBE	£28.74	Add to
038	1319-2330-01	WHEEL FORK	£99.76	Add to
041	1319-1830-01	SUPPORT WHEEL	£184.24	Add to
043	118890125/0	LIFTING ROD	£56.15	Add to
054	1134-2589-01	CHAIN TENSIONER	£41.59	Add to
055	1134-2578-01	COMP.SPRING	£17.34	Add to
057	1134-2629-01	LIFT LINK	£15.69	Add to
061	1319-2331-01	Chain	£11.33	Add to
062	9405-0031-00	EYE-BOLT	£8.32	Add to
063	1134-0576-02	PIN	£11.32	Add to
068	9598-0003-02	SPRING PIN	£2.32	Add to
072	1319-2332-01	BRUSH GUARD	£170.47	Add to
073	9585-0067-00	V-Belt	N/A	POA
074	1134-2796-02	BOLT (355 MM)	£39.22	Add to
075	1134-2614-01	SHIELD BRACKET	£50.37	Add to
076	1134-2618-01	BAR	£25.46	Add to
078	1319-1825-01	BRUSH SHAFT	£211.40	Add to
080	1134-2628-01	PROTECTION SHIELD	£32.76	Add to
097	118890128/0	MOUNTING BRACKET	£129.74	Add to
102	1319-1901-01	SHAFT-LOWER	£51.28	Add to
103	1319-1952-01	GEARBOX ASSEMBLY	£842.54	Add to
105	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
107	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
112	1319-2335-01	BELT GUARD	£88.85	Add to
113	1319-2336-01	BRACKET	£46.61	Add to
114	1319-2337-01	BRACKET	£31.63	Add to
115	1319-2338-01	PLASTIC PLUG	£4.52	Add to
116	1319-2017-01	HAND GRIP	£14.18	Add to
118	9893-0616-16	SCREW M6 x 16	£2.47	Add to
119	112792610/0	HEX-HEAD SCREW M8 x 16	£2.02	Add to
120	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
121	1319-1881-01	SPRING PIN	£1.58	Add to
