TRANSMISSION

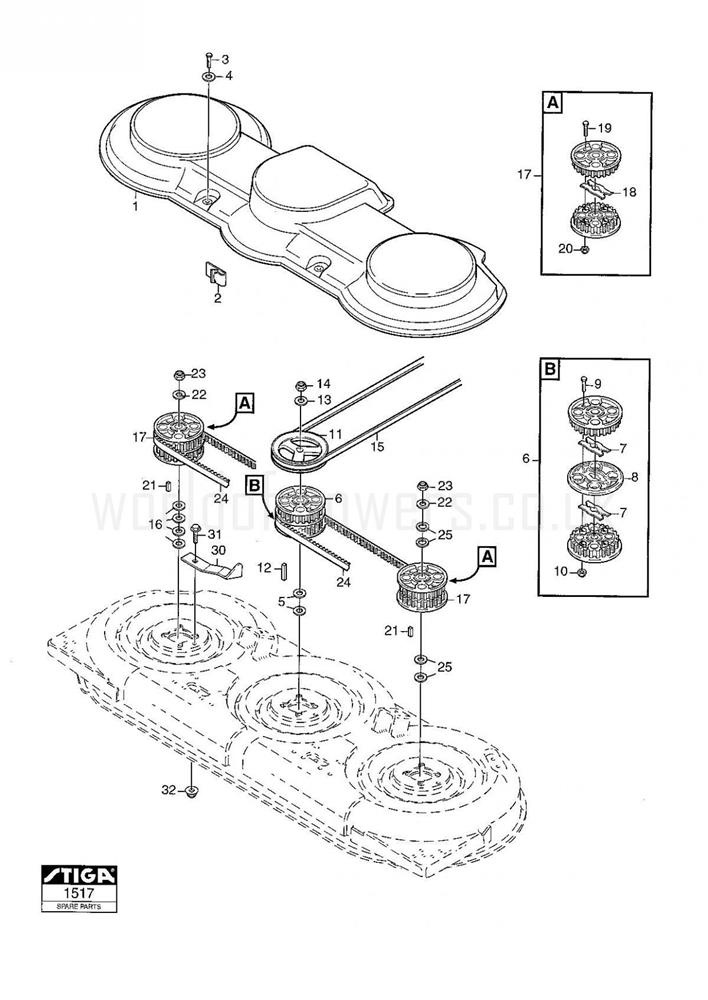

TRANSMISSION assembly details for Stiga 13-2921-29 Park 121M 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-5800-02TRANSMISSION COVER (GREY)£219.26 Add to
0021134-3632-01BELT GUIDE£5.85 Add to
0039997-0620-16SCREW M6S M6 x 20£2.06 Add to
004112521460/0WASHER M6 6.5 x 22 x 1.5£0.79 Add to
005112521390/0WASHER M16 17 x 30 x 3£1.91 Add to
0061134-3679-02TOOTHED BELT PULLEY£67.05 Add to
0071134-3597-01REINFORCEMENT BAR£14.45 Add to
0081134-3598-01PLATE-BELT PULLEY£19.54 Add to
009112792099/0HEX HEAD SCREW M6 x 30£1.79 Add to
010112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0111134-3419-01BELT PULLEY£122.47 Add to
0121134-0323-02KEY (L=54)£11.32 Add to
0131134-5236-01WASHER£4.59 Add to
0141134-4775-01LOCK NUT£2.47 Add to
0151134-9045-01DECK DRIVE BELT£52.06 Add to
0151134-9102-01DECK DRIVE BELT£49.34 Add to
016112521390/0WASHER M16 17 x 30 x 3£1.91 Add to
0171134-3679-01TOOTHED BELT PULLEY£48.96 Add to
0181134-3597-01REINFORCEMENT BAR£14.45 Add to
019112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
020112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0211134-0323-01KEY (L=25)£10.91 Add to
0221134-5236-01WASHER£4.59 Add to
0231134-4775-01LOCK NUT£2.47 Add to
0241134-9182-01TOOTHED BELT£35.71 Add to
025112521390/0WASHER M16 17 x 30 x 3£1.91 Add to
0301134-3014-01BELT TENSIONER£45.26 Add to
0319959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
032112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
